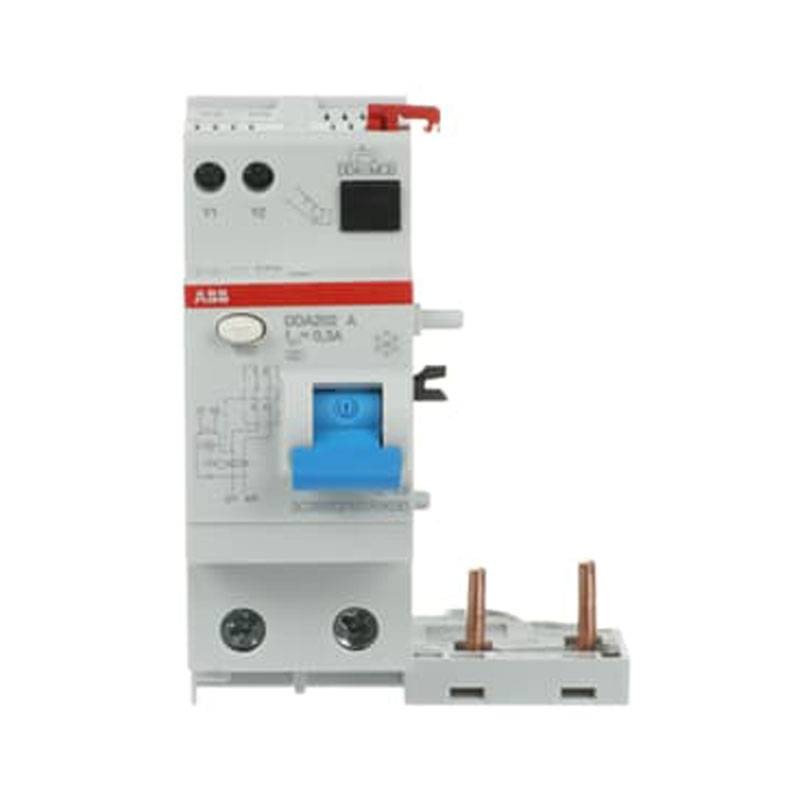

Abb Earth Leakage add-on Block DDA202 63A 2P 300mA 2-Module B427962

Abb
ABB B427962 8012542796213

Abb Earth Leakage add-on Block DDA202:



  • 63A rated current
  • 2 Poles
  • Rated residual current 300mA (0.3)
  • Type A
  • 2 Modules
  • Rated voltage 230/400V




Compatible with circuit breakers of the S 200 L, S 200, S 200 M, S 200 P series to realize the magnetothermal differential protection function.



It is possible to couple the DDA 200 with circuit breakers of the M 200 series, in which case additional thermal type protection must be provided for overload current protection.

Do you have questions about this product or did you not find what you were looking for? Ask us!

Abb Earth Leakage add-on Block DDA202 63A 2P 300mA 2-Module B427962

€120.60
€120.60

Abb Earth Leakage add-on Block DDA202 63A 2P 300mA 2-Module B427962

€120.60
Tax included
Items Available: 4
Further availability of the manufacturer

Abb Earth Leakage add-on Block DDA202 63A 2P 300mA 2-Module B427962

€120.60

Buy it within and receive it from Tuesday, 17 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

The Earth Leakage add-on Block are mechanically designed to prevent mismating between the block and the circuit breaker: the rating of the block must always be equal to or greater than that of the circuit breaker. The plastic clamp on the side allows faster mounting of the block on the circuit breaker, and a push-button prevents possible tripping.



It is used to protect human health in the event of a ground fault (electrical leakage) or phase-to-ground electrocution, thus also providing protection against macro electrical shock, both direct and indirect, on exposed persons.



The type A differential block, ensures operation for AC and one-way pulsating type currents.



Features:

  • Reference Standards: IEC/EN 61009 Ann. G
  • Rated insulation voltage 500V
  • Impulse withstand voltage 4kV
  • Rated frequency 50 60 Hz
  • Power loss: 5W
  • Electrical resistance: 10000 cycle
  • Operating characteristic: Instantaneous
  • Connection capacity: Rigid 25 ... 25 mm² - Flexible 25 ... 25 mm²
  • Ambient temperature: -25 to 55 °C
  • Ambient temperature: Operating -25...55 °C
  • Degree of protection: IP2X
  • Dimensions: Product width: 70 mm - Product height: 93 mm - Product depth: 76 mm
  • Product net weight: 0.210 kg.

There are no reviews

Data sheet

Voltage:
230/400VAC
Modules:
2
Poles:
2P
RCD Type:
A
Differential current :
0.3A
Amps:
63A
Circuit Protections:
Earth Leakage add-on Blocks
