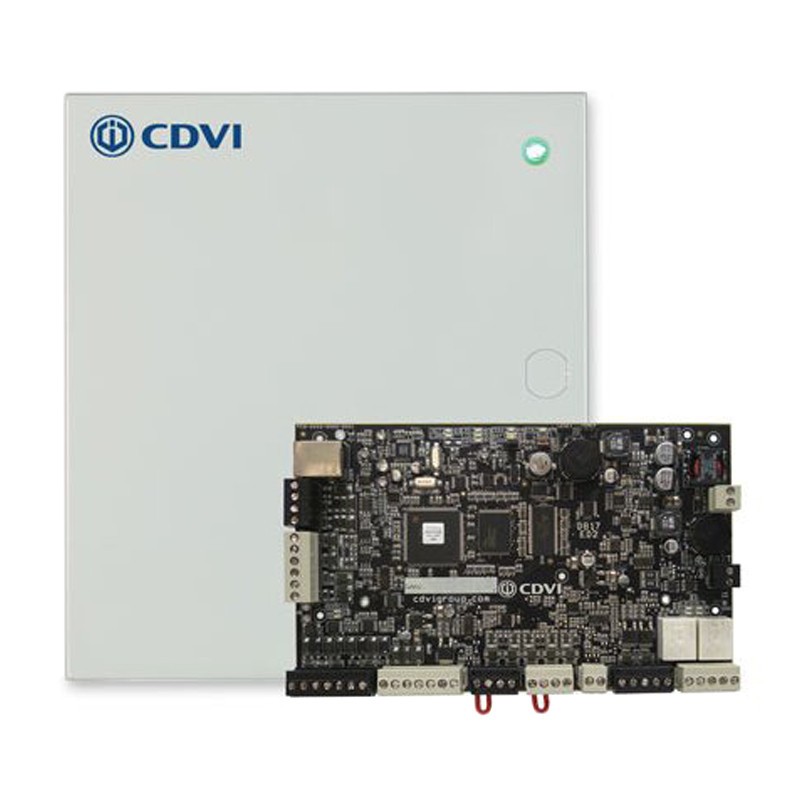

Web Access Control Unit CDVI Hybrid A22
CDV A22
3662211015142
Web Server Access Control CDVI Hybrid A22, Master & Slave, in metal housing, can be configured as a Central and/or Expansion.
Web Access Control Unit CDVI Hybrid A22
€663.38
€663.38
Tax included
Tax included
Items Available: 1
A Hybrid plant A22 ATRIUM Access Control is one of the most efficient Web-based IP present in the market. The flexibility of the a22 allows you to parametrizzarla in the Master or in the Central slave ( 2-in-1 ). The Web server Embedded ATRIUM is innovative, fast, simple and secure. From any part of the world you are in you are able to interact with the system, checking; Users,/Badges, Open/Close gates and view all events. The Web Server Embedded allows you to get all the information by using any Web Browser, Smartphone or tablet.
Features:
- Unique product for the 2 solutions ( Central and/or Expansion, PoE+ ( optional )
- Managing up to 500 access points, 10,000 users ( badges)
- Integrated with all previous installations ( AC22 / AX22 )
- Manage up to 2 readers (ENT/USC or the 2 ENT )
- Universal power supply built-in ( 120Vac / 240Vac )
- Fast and simple procedure for the memorizzazone of the badges
- Auto-detect hardware modules
- 2 relay Output NC/NO to control locking devices 5A/28Vdc external power supply
- Management of up to 6 digital input
- Internal power supply locks ( max 0.75 A /12Vdc each )
- Firmware updates online in less than 10 scondi
- Management and control Software for the PC-WEB-Smartphone-Tablet-inclus
- Maximum distance 1200mt connection, 4-conductor RS485 between central A22 and Master A22 and Slave
- Management readers Wiegand 26-30-44 bits
- Includes management software, Access Control
- Management CCTV-Alarms-E-mail
- Housing dimensions (H x W x D): 298 x 285 x 78mm
- Card PCB dimensions (W x H): 202 x 124mm
- Management lifts.
Functions:
- Software updates via the web interface
- System of locking and unlocking of emergency (PPMS)
- Ability to search for users or areas
- Import / export of users (badges) to CSV,XLS,XML,TXT
- Detection automativo of the central master and slave interface modules
- Simple and quick learning process of the badges
- System with automatic reset
- Compatible with the formats Wiegand (26, 30 and 44 bits) and ABA Track II
- SDK optional
- Integration SDK (optional).
There are no reviews
Data sheet
- Type:
- Control units
