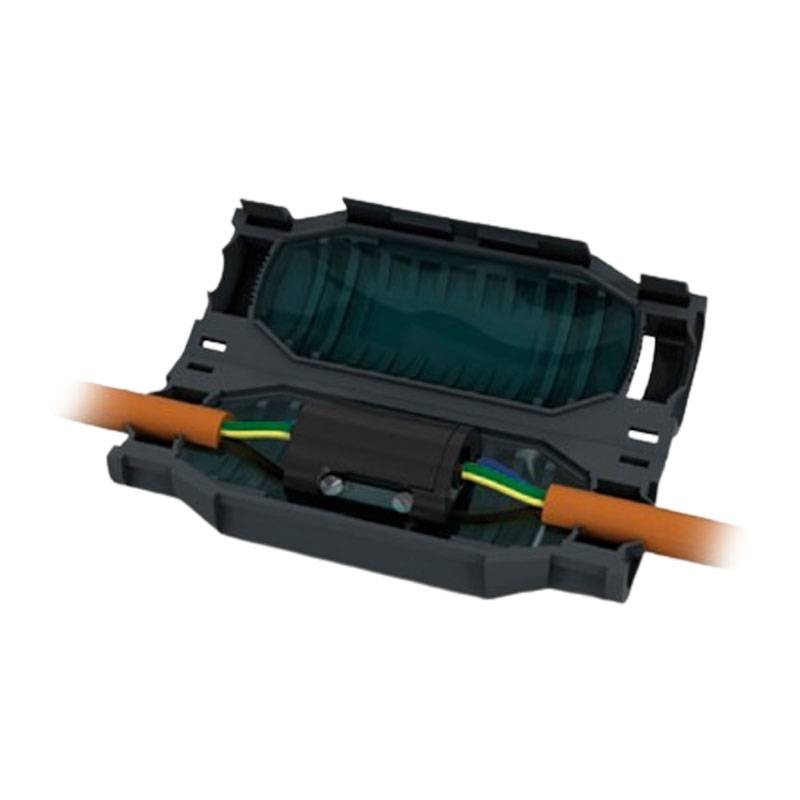

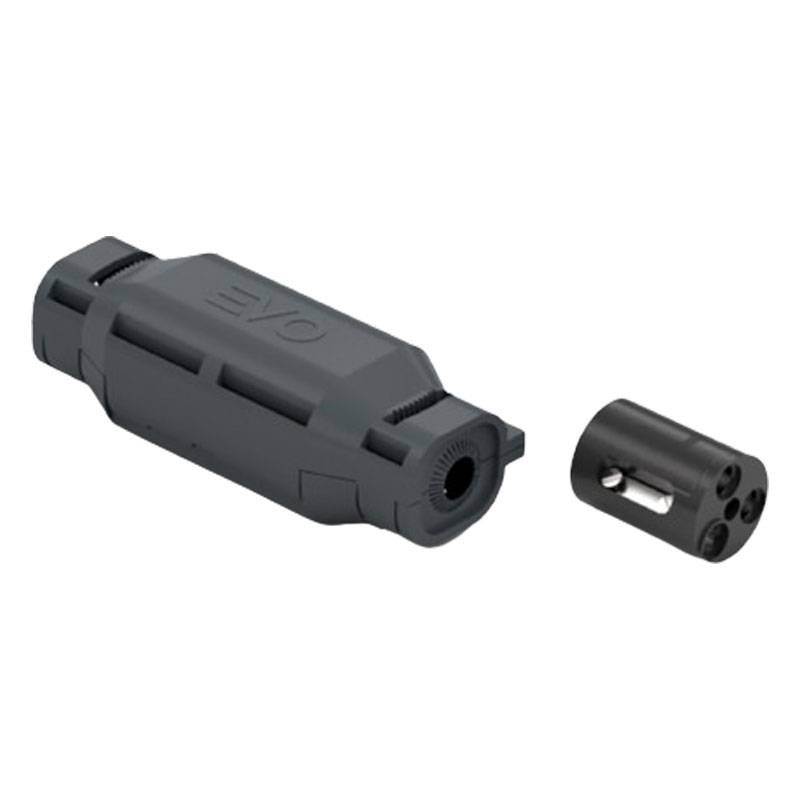

Etelec gel joint for 0.75-2.5 sq. mm cables IP68 black EV101
ETL EV101
8053323905523
Re-accessible and non-toxic Etelec EVO PX silicone gel joint for in-line connection of 300/500V power cables with the following features:
- Construction: Pre-filled gel
- Max-through cable conductor number: 3
- Min-max conductor cross-section: 0.75-2.5 sq mm
- Min-max cable diameter: 6-8 mm
- Rated voltage and current: 450V 24 A
- Insulation degree: 300/500V
- Clamping type: Screw type
- Colour: Black
Connection device for IP68 in-line connections of low voltage 300/500V cables up to 3 poles.
Kit contents: Pre-filled gel connection device, Three-pole screw terminal block for copper-copper, aluminum-aluminum and copper-aluminum connections, Instructions.
Etelec gel joint for 0.75-2.5 sq. mm cables IP68 black EV101
€5.95
€5.95
Tax included
Tax included
Items Available: 153
: 37
Connection device for IP68 in-line connections of low voltage 300/500 V cables up to 3 poles.
Connection, insulation and protection of small cables, even in the presence of water: road and roadway signs, gardens, fountains, ground passage lighting, residential and environmental interior lighting, LED lighting systems, video surveillance systems, industrial and civil automation (barriers, gates). Construction of flying junction boxes on suspended ceilings or outdoors.
Features:
- Family: Low voltage
- Length: 72 mm
- Width: 28 mm
- Height: 24 mm
- Connector included
- Connector Type Included: Screw Clamp
- Connector Material: Chrome plated steel
- Insulation Voltage: 450V
- Number of poles: 3
- Material: Polypropylene
- Dielectric strength: >20 kV/mm
- Operating Temperature: -20/+90 degrees
- UV Resistant
