Ime Delta D2 residual current relay type A 230V 2 Modules IP20 RD1AF13B

Ime
IMS RD1AF13B 8032826020186

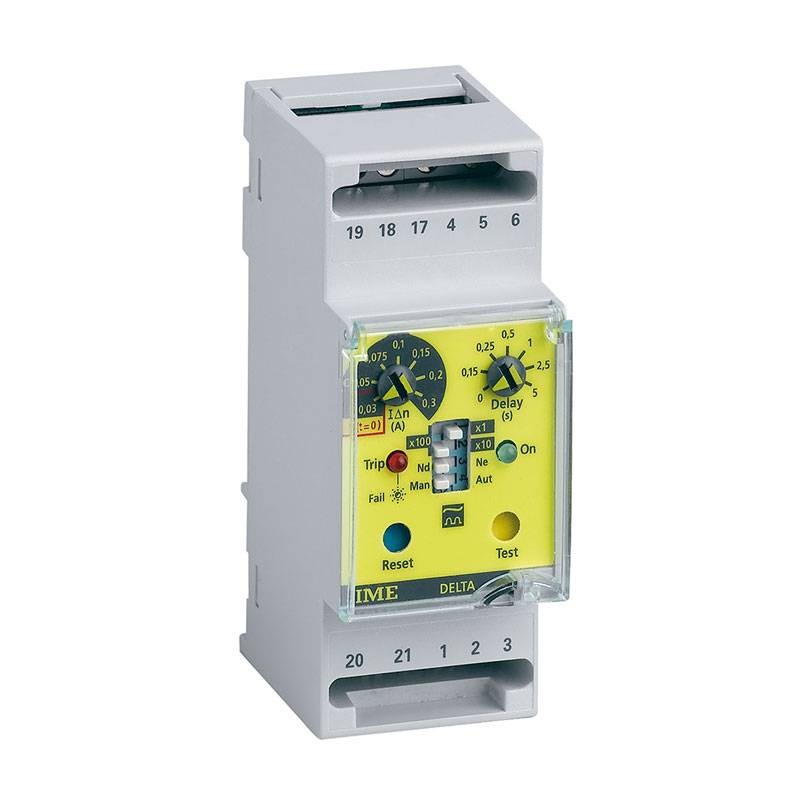

Ime type A residual current relay with the following characteristics:



  • Series: DELTA D2-L, RD1AF
  • Auxiliary voltage: 230Vac
  • Residual current Idn: 0.03-30A
  • Time adjustment: 0-5s
  • Number of modules: 2
  • Degree of protection: IP20
Do you have questions about this product or did you not find what you were looking for? Ask us!

Ime Delta D2 residual current relay type A 230V 2 Modules IP20 RD1AF13B

€106.56
€106.56

Ime Delta D2 residual current relay type A 230V 2 Modules IP20 RD1AF13B

€106.56
Tax included
Items Available: 8
Further availability of the manufacturer

Ime Delta D2 residual current relay type A 230V 2 Modules IP20 RD1AF13B

€106.56

Buy it within and receive it from Wednesday, 13 November
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Input:

  • In: low voltage line, with TD series transformer
  • In waveform: sinusoidal (AC type) or partial pulsing with continuous component (A type) in accordance with IEC/EN60947-2 Annex M
  • Rated frequency fn: 50Hz
  • Operating frequency: 47...63Hz



Signaling:

  • Instrument powered: green LED ON
  • Alarm tripping: red TRIP LED + relay switching
  • Interruption of relay-toroid connections: TRIP red LED flashing + TRIP relay switching



Check:

  • Manual test: checks the efficiency of the differential relay
  • Local: via front button
  • Remote: external contact closure (Not feasible with aux dc and with Uaux 48Vac)
  • Permanent automatic test: checks continuity of toroid differential relay connection



Alarm:

  • Tripping storage 1: red LED "TRIP" + self-holding relay 1 excluded with automatic reset
  • Reset: manual or automatic, selectable by dip switch
  • Local manual: front button
  • Remote manual: external contact closure
  • Automatic: 3 reset attempts (1every 60 seconds)
  • Reset inhibited with persistent differential current: > 50% In



Output:

  • Relay: 1 SPDT changeover contact
  • Contact rating: 5A 250Vac cos 1 - 3A 250Vac cos 0.4 - 5A 30Vdc
  • Safety negative/conditioned (relay normally de-energized) or positive/unconditioned (relay normally energized): selectable via dip switch



Auxiliary power supply:

  • Uaux rated value: 24V - 48V - 115V - 230V - 240V - 400V
  • Allowable variation: 0.85...1.1Uaux - 40...60V (Uaux 48V)
  • Rated frequency: 50Hz
  • Allowable variation: 47...63Hz
  • Self-consumption: 2.5VA
  • Uaux rated value: 20...150Vdc
  • Reverse polarity protection
  • Self-consumption: 2.5W
  • Insensitivity to voltage dips with duration up to 300ms (nominal Uaux)



Insulation:

  • Installation category: III
  • Pollution degree: 2
  • Insulation reference voltage: 450V
  • Impulse voltage test 5kV 1.2/50µs 0.5J
  • Circuits considered: input, relay output, auxiliary power supply
  • AC voltage test 2.5kV rms value 50Hz/1min
  • Circuits considered: input, relay output, auxiliary power supply
  • Test at alternating voltage 4kV rms value 50Hz/1min
  • Circuits considered: all circuits and ground



Environmental conditions:

  • Operating temperature: -5...50°C
  • Operating temperature limit: -10...55°C
  • Storage temperature: -40...70°C
  • Relative humidity (EN 60755): 50% (maximum value at 40°C)
  • Suitable for use in tropical climate
  • Maximum power dissipation: 2W



Housing:

  • Housing: 2 modules DIN 43880
  • Front panel: sealable to prevent tampering
  • Connections: screw-fixing terminals for conductor up to 4 mm2
  • Mounting: snap-in on 35mm profile
  • Profile type: hat type TH35-15 (EN / IEC60715)
  • Housing material: self-extinguishing polycarbonate
  • Degree of protection (EN / IEC60529): IP50 front, IP20 terminals
  • Weight: 200 grams
