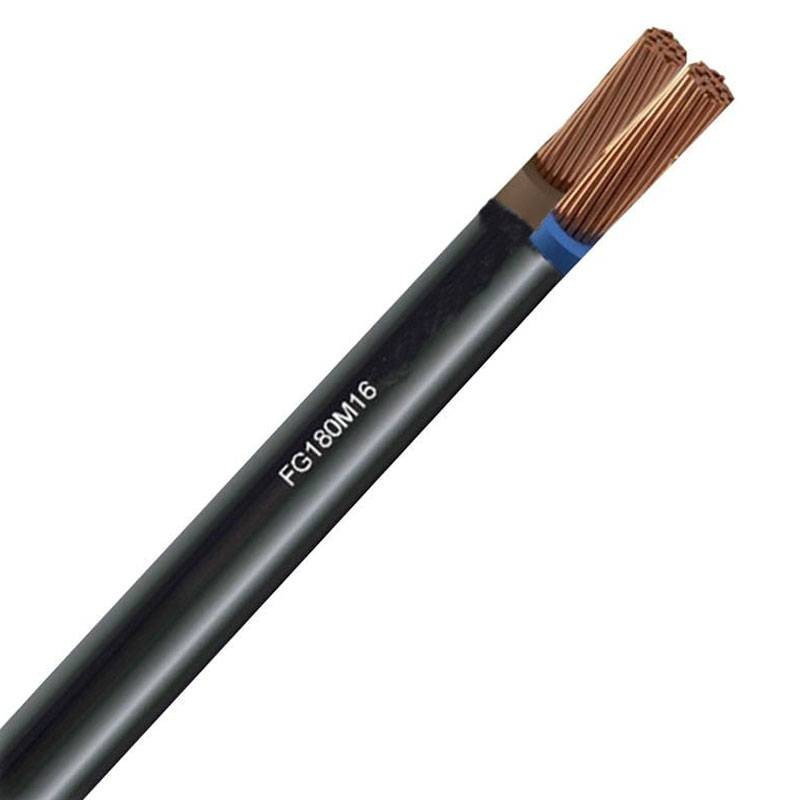

Low Voltage Cable FG18OM16 2X6mmq 0.6/1KV Class CPR B2 ca
9X9 FTG18OM162X6
Low voltage cable FG18OM16 2X6mmq rated voltage 0.6/1KV Class CPR B2 ca S3,d1,a3. Conductor diameter 3mm - production diameter 17.4mm.
Cable complies with the requirements of the Construction Products Regulation (CPR EU 305/11), with the aim of limiting the production and spread of fire and smoke.
The producers of our cables are:
- Baldassari cavi
- Icel
- La Triveneta
- Prysmian
The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.
Low Voltage Cable FG18OM16 2X6mmq 0.6/1KV Class CPR B2 ca
€3.41
€3.41
Tax included
Tax included
Items Available: 2358
: 613
Two-year warranty
Multi-core LSZH cable for power and signaling with very low smoke and toxic gas emission. Black color. It is particularly suitable in places with high fire hazards such as air terminals, railway stations, marine stations, subways wholly or partly subway, road tunnels longer than 500 meters and railway tunnels longer than 1000 meters.
It is suitable for laying inside even wet environments and can be installed on masonry and metal structures, catwalks, pipes, ducts and similar systems. The cable, if stored/placed outdoors, must be protected from UV rays. Underground, direct or indirect laying permitted.
Characteristics:
- Conductor Flexible red copper, class 5
- Insulation HEPR rubber-based compound, G18 quality
- Cordage Twisted/chorded cores with concentric crowns
- Outer sheath LSZH thermoplastic-based compound, M16 quality
- Core/sheath operating voltage: 0.6/1kV
There are no reviews
Data sheet
- Colour:
- Black
- Cross-Section:
- 6mmq
- With yellow/green:
- No
- Number of cables:
- 2
