Sauermann Omega Pack Installation Kit under mini-splits OP20CE02UN23
SAU OP20CE02UN23
3700543255215
Sauermann Omega Pack Kit for installation under mini-splits consisting of:
- 1 Si-20 piston pump with 2 rubber shock absorbers
- 1 PVC pipe
- 1 1.5-meter power cord
- 2 power wires
- 2 wires for safety contact
- 1 plastic container
- 3 cable ties
- 3 Rilsan
- 3 screws and plugs

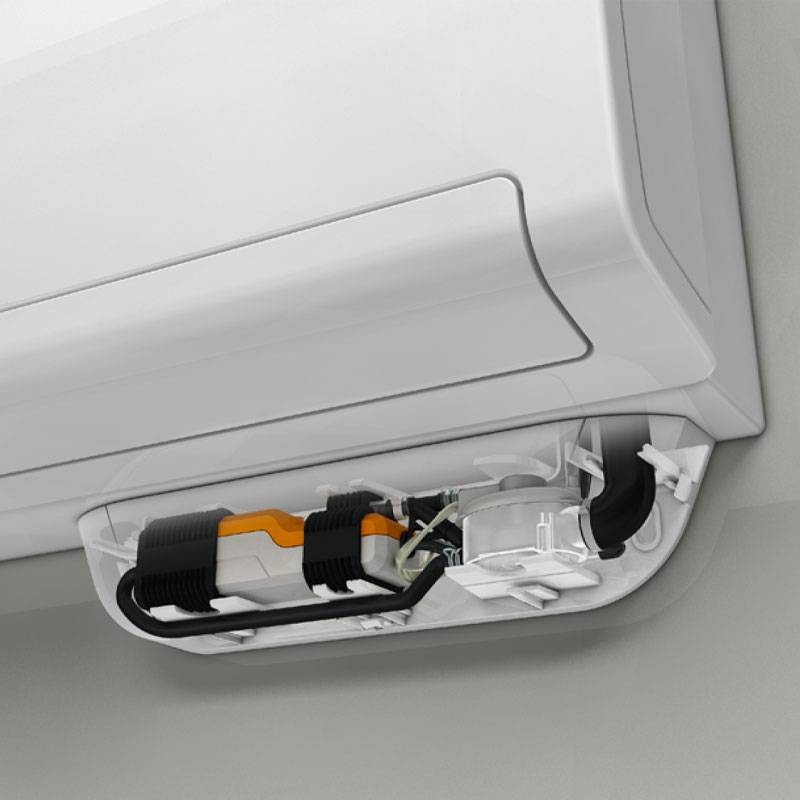

Omega Pack White is a solution designed for installation below mini-split air conditioners up to 20 kW.
Sauermann Omega Pack Installation Kit under mini-splits OP20CE02UN23
€123.19
€123.19
Tax included
Tax included
Items Available: 3
: 2
Frequently bought together

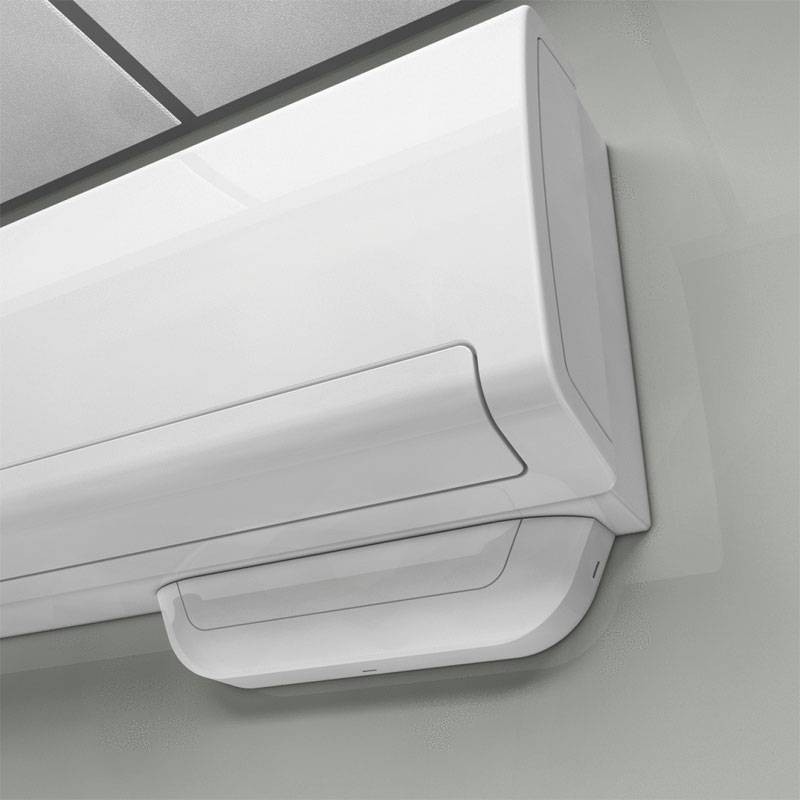

Modern aesthetics:
- Understated and elegant design
- Color: White
- Right- or left-hand installation aligned with the mini-split
- Blends seamlessly into the design of the air conditioner
Easy installation:
- Ready-to-install kit with all useful mounting accessories
- Intuitive positioning of the plate
- Can be installed on any type of wall (brick, plaster, concrete)
- Pre-mounted Drain Safe Device accessory ensures optimal pump operation and extends pump life
Noiselessness:
- Quiet operation: 22 dBA, tested in independent laboratory
- Rubber dampers that surround the pump are specifically designed to reduce vibrations transmitted to the conditioner or wall
Proven and established reliability:
- Filterless. Designed to allow particles up to 2 mm to pass through
- High flow rate of up to 20 l/h enables reduced run times
- Optimal operation and extended life with Drain Safe Device accessory

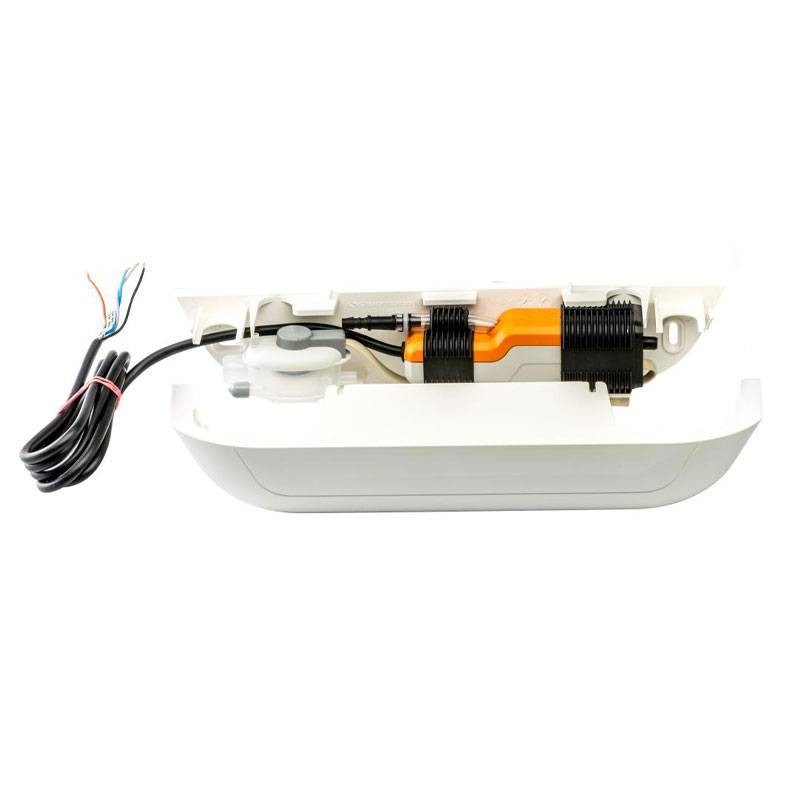

Kit contents:
- 1 Si-20 piston pump with: - SI2958 detection block, 0.63 m cable with 2 vibration-damping rubber dampers
- 1 Clear PVC pipe Æ int. 6 mm L 60 mm, equipped with preinstalled "Drain Safe Device" fitting
- 1 1.5 m power cord
- 2 wires for power supply
- 2 wires for the safety contact
- 1 Plastic container consisting of 2 parts (plate and cover)
- 1 Detection block installation kit: 90° fitting Ø int.15 mm x L 152 mm, vent pipe Ø int. 4 mm x L 75 mm
- 3 fixing clamps
- 3 Rilsan 2.5 x 200 mm
- 3 screws and plugs for fixing the plate
Features:
- Maximum flow rate: 20 l/h
- Maximum delivery height: 10 m (flow rate = 4 l/h)
- Maximum pressure: 14 m (flow rate = 0 l/h)
- Sound level at 1 m
- Power supply: 230 V - 50 Hz - 14 W
- Detection levels ON: 16 mm; OFF: 11 mm; Safety: 19 mm
- Safety contact NC 8 A resistive 250 V
- Thermal protection (overheating) 115 °C (automatic reset)
- Condensate temperature max 35 °C
- Cover dimensions L 326 x W 58 x H 65 mm
There are no reviews
Data sheet
- Type:
- Condensate pumps
