Advantages and Functions:

• BLDC FAN MOTOR: The fan motor is BLDC type, in addition to allowing a greater modulation of capacity, given the wider range of rotation speeds available, it dissipates less heat than traditional AC motors. It operates with less noise and in the absence of electrical buzzing.
• COMMANDS: The unit comes standard with an infrared control
• INTEGRATED Wi-Fi: Indoor unit with integrated Wi-Fi to manage the main functions through the Smart ThinQ app available for Android or iOS.
• Voice Control: Indoor unit compatible with Google Home voice assistants (Available functions: Power On-Off-Temperature control-Setting operating modes-Ventilation control-Monitoring).
• TOTAL CONTROL OF AIR FLOWS: Indoor unit with total control of air flows. Vertical adjustment in 6 steps, viewable on infrared control and 5 horizontal speps.
• COMFORT AIR FUNCTION: By pressing the button on the infrared control, the deflector is automatically positioned according to the selected operating mode. In heating mode the deflector adjusts to the lowest position while in cooling mode it adjusts to the highest position.
• SMART DIAGNOSIS: Smart Diagnosis allows you to check functionality and troubleshooting via smartphone with a simple SMART DIAGOSIS app available for android devices.

Technical features:



Cooling:

• Rated Min/Max capacity: 7.0 KW (900-660W)
• Rated input power: W 2164
• SEER 6,9
• Energy Class: A++
• EER 3.05
• Indicative annual energy consumption kW/a 335

Heating:

• Rated capacity Min/Max: KW 7.5 (900-864W)
• Rated input power 2.238
• SCOP: 4.2
• Seasonal energy efficiency class A+
• COP 3.35
• Indicative annual energy consumption: kWh/a 1628

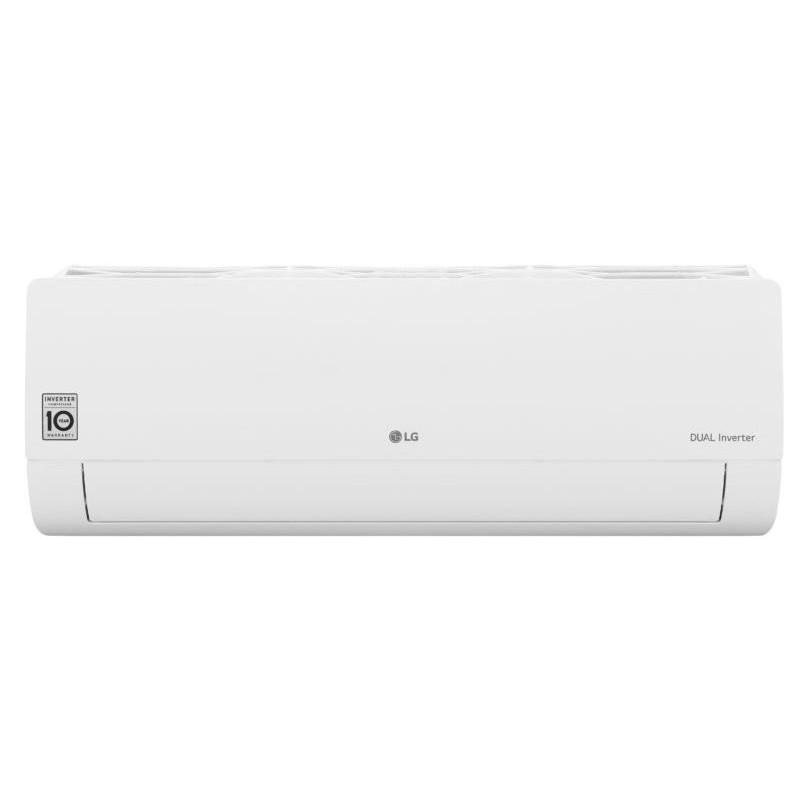

Indoor Unit Features:

• Dimensions: 998x345x210mm
• Weight: 12 Kg
• Treated air cubic metres/h N/A
• Dehumidification capacity l/hr 2.5
• Sound Pressure Level (Cooling/Heating) dBa 31-34-42 / 34-42-47
• Sound Power Level dBA 65

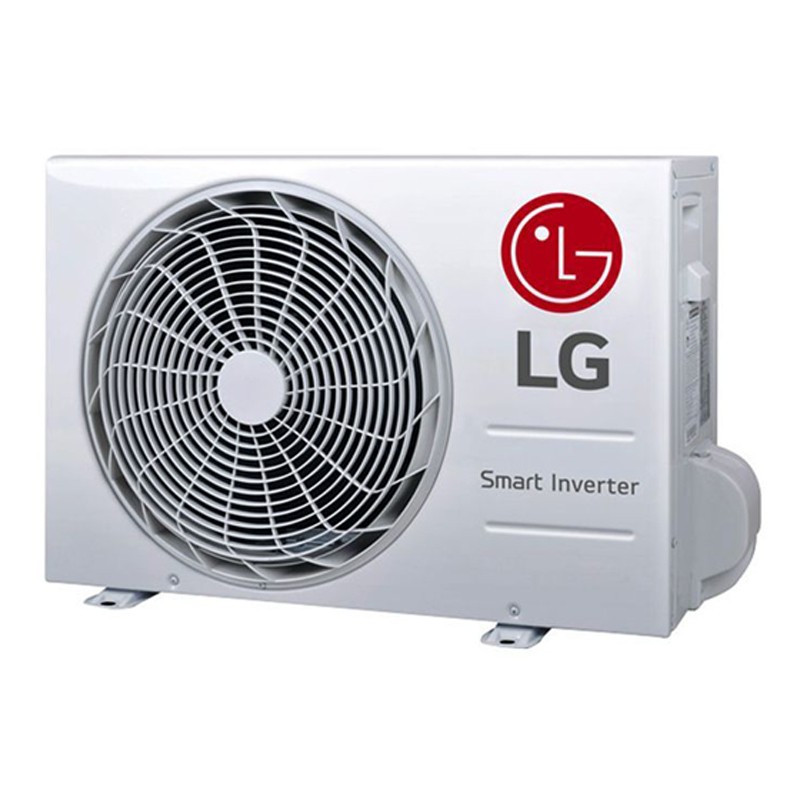

Outdoor Unit Features:

• Dimensions: 870x650x330mm
• Weight 35 Kg
• Sound Pressure Level dBa 53/54
• Sound Power Level dBA 70
• Power supply Single-phase 220-240 / 50Hz
• Liquid/Gas piping 6.35 (1/4") - 15.88 (5/8)
• Max. piping length/min 30/3 meters
• Max height difference between indoor/outdoor unit 15 meters
• Refrigerant Type: Gas R32
• Precharge Gas R32 7.5m g 1100
