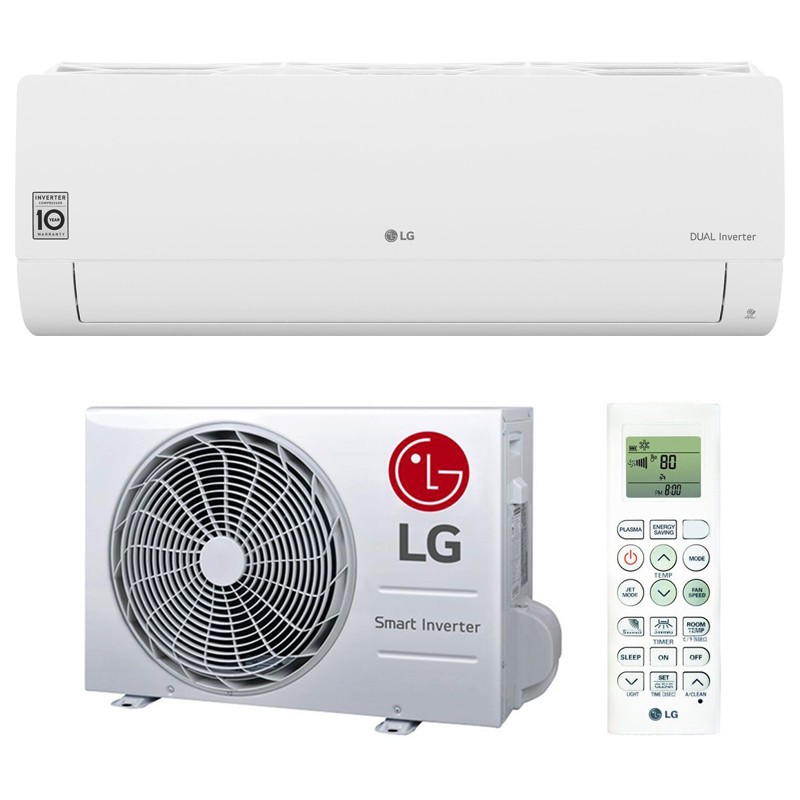

Advantages and Functions:
- BLDC FAN MOTOR: The fan motor is BLDC type, in addition to allowing a greater modulation of capacity, given the wider range of rotation speeds available, it dissipates less heat than traditional AC motors. It operates with less noise and in the absence of electrical buzzing.
- COMMANDS: The unit comes standard with an infrared control
- INTEGRATED Wi-Fi: Indoor unit with integrated Wi-Fi to manage the main functions through the Smart ThinQ app available for Android or iOS.
- Voice Control: Indoor unit compatible with Google Home voice assistants (Available functions: Power On-Off-Temperature control-Setting operating modes-Ventilation control-Monitoring).
- TOTAL CONTROL OF AIR FLOWS: Indoor unit with total control of air flows. Vertical adjustment in 6 steps, viewable on infrared control and 5 horizontal speps.
- COMFORT AIR FUNCTION: By pressing the button on the infrared control, the deflector is automatically positioned according to the selected operating mode. In heating mode the deflector adjusts to the lowest position while in cooling mode it adjusts to the highest position.
- SMART DIAGNOSIS: Smart Diagnosis allows you to check functionality and troubleshooting via smartphone with a simple SMART DIAGOSIS app available for android devices.
Technical features:
Cooling:
- Rated capacity Min/Max: 2.5 KW (890-3.7)
- Rated input power Min/Max: W 200-656-1400
- SEER 7
- Energy Class: A++
- EER 3.81
- Indicative annual energy consumption kW/a 125
Heating:
- Rated capacity Min/Max: KW 3.3 (890-4100)
- Rated input power Min/Max 195-800-1600
- SCOP: 4.0
- Seasonal energy efficiency class A+
- COP 4.13
- Indicative annual energy consumption: kWh/a 871

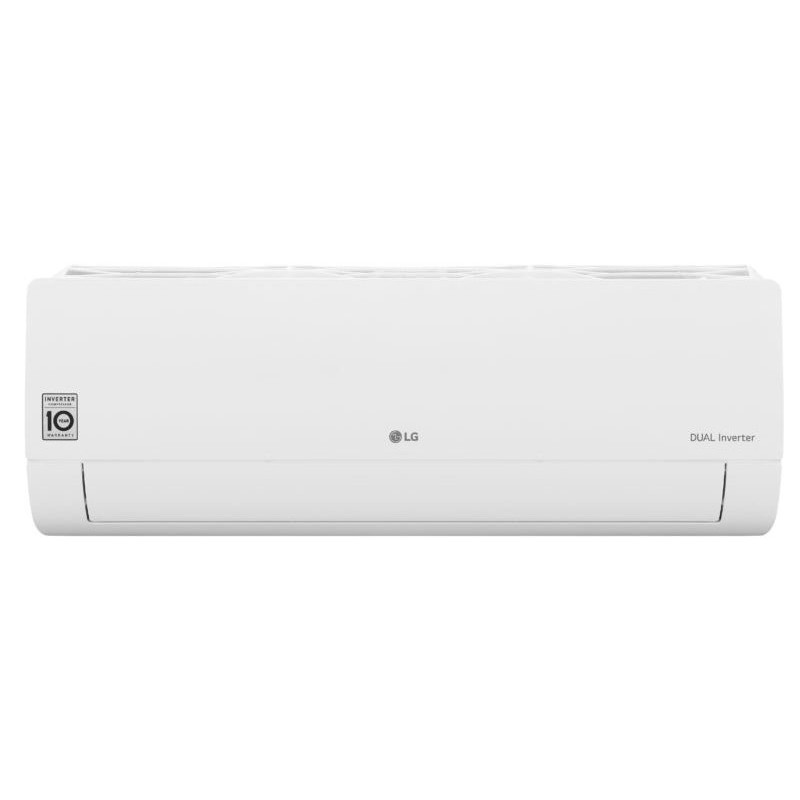

Indoor Unit Features:
- Dimensions: 837x308x189mm
- Weight: 8,7 Kg
- Treated air cubic metres/h N/A
- Dehumidification capacity l/hr 1.1
- Sound Pressure Level (Cooling/Heating) dBa 19-27-35-41/45 - 27-35-41
- Sound Power Level dBA 59

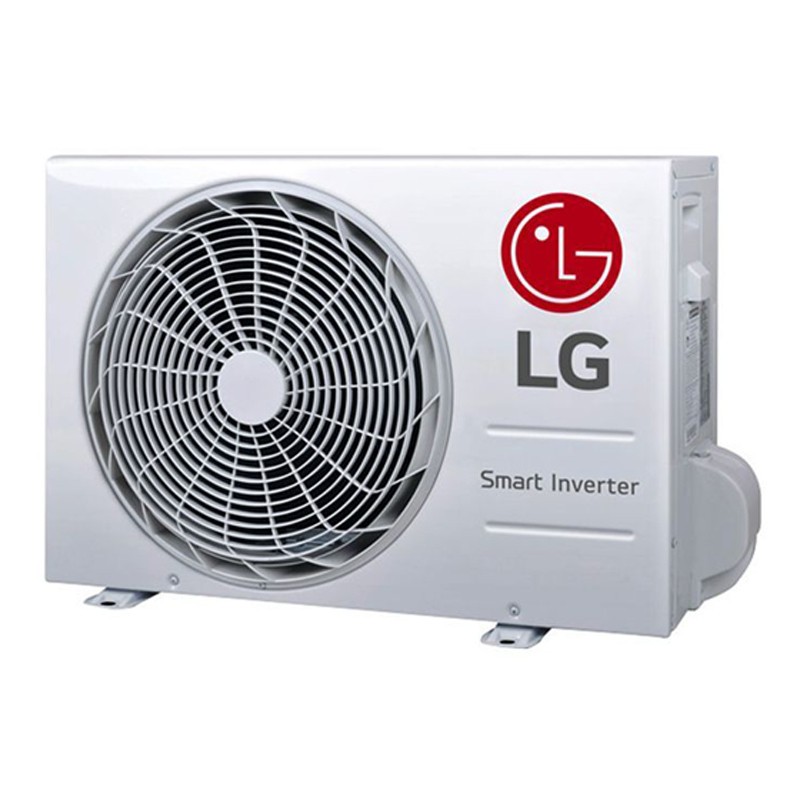

Outdoor Unit Features:
- Dimensions: 717x495x230mm
- Weight 25,1 Kg
- Sound Pressure Level dBa 48/50
- Sound Power Level dBA 65
- Power supply Single-phase 220-240 / 50Hz
- Liquid/Gas piping 6.35 (1/4") - 9.52 (3/8)
- Max/min pipe length 15/3 meters
- Max height difference between indoor/outdoor unit 7 meters
- Refrigerant Type: Gas R32

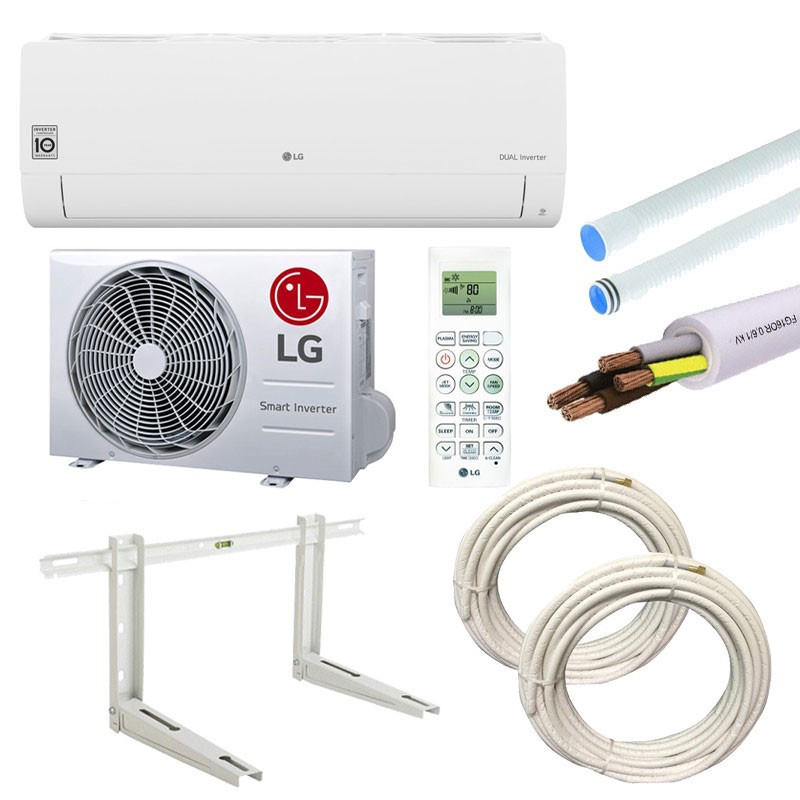

Specifications of the products in the Mounting Kit
Wall brackets for 9000 and 12000 btu air conditioners for outdoor motor:
- Galvanized and powder coated steel brackets
- Brackets complete with anti-vibration feet for quick insertion
- Stainless steel screws in the KLIMA STRONG INOX and KLIMA TOP INOX items
- KLIMA STRONG and KLIMA HEAVY for non-standard machines
- KLIMA TOP shelf to have the best quality
- KLIMA GROUND and KLIMA FOOT anti-vibration bases available for floor installation
- White RAL 9002
- Arm lengthL1 420 mm
- Height 400 mm
- Bracket thickness 15/10 mm
- Crossbar length 780 mm
10 meters Double insulated flame retardant cable 5X1,5 mmq
Arnocanali condensate hose D. 17-20mm 10 meters:
- BIESTRUSO anti-crush corrugated hose. Produced with double layer of POLYPROPYLENE to guarantee the maximum safety in the use under trace. Hose made of Polypropylene stabilized against UV rays. Working temperature - 30°C + 75°c.
Kit Tecnogas FAST PIPE composed by:
- 2 pipes of 6 meters one with female-female connections diameter 1/4 (diameter 6,35) and one with female-female connections diameter 3/8 (diameter 9,52) conical with copper gaskets included. Suitable for air conditioners 9000/12000btu.
Construction characteristics of the pipe to the funds:
- Closed cell polyethylene foam
- The polymer barrier
- the film of aluminium 4-ply
- polyamide long-chain
- synthetic fiber of high tenacity
- coating anti-Uv and anti-IR
- film anti-Uv
Fittings: "Helix" brass: Calibri, Screw, Crimpi.
The field-of-use refrigeration Circuits F-containing gas R410A-R32-R134A-R404A-R407C
Operating temperatures -30°C/110°C (Max 130° C non-continuous)
Maximum operating pressure 100 Bar
