FUNCTIONS:

• Low noise level
• Wi-Fi control with App hOn for remote control of the air conditioner
• Fresh Air inlet predisposition (Ø 100mm) to introduce fresh air in the room
• (fresh air inlet up to a maximum of 20% of the nominal air flow of the unit)
• More than 20% penalizes the thermo-cooling capacity of the air conditioner)
• On-Off card
• 4 independent ways
• Condensate drain pump
• Fresh Air

Technical characteristics:



Cooling:

• Rated Capacity Min/Max: 3.5 KW (0.9-4.5)
• Rated input power: Min/Max kW 1.06 (0.28-1.8)
• SEER 6.1
• Energy Class: A++
• EER 3,31
• Indicative annual energy consumption kW/a 222

Heating:

• Rated Capacity Min/Max: KW 4.0 (1.0-4.8)
• Rated input power Min/Max 0.99 (0.28-1.8)
• SCOP: 3.8
• Seasonal energy efficiency class A
• COP 4.04
• Indicative annual energy consumption: kWh/a 1427

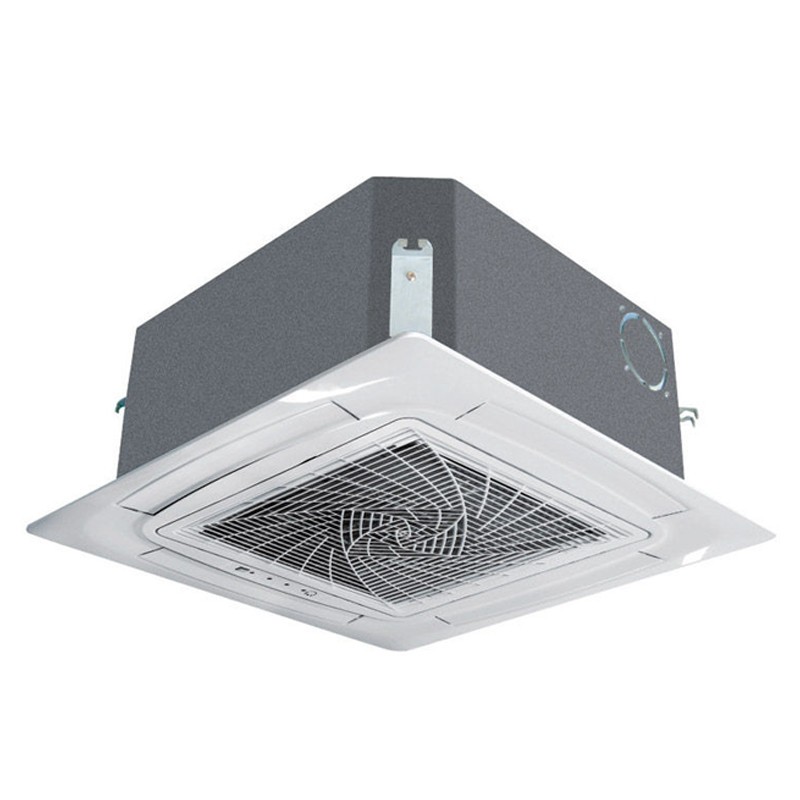

Indoor Unit Features:

• Dimensions: (WxDxH) 570x570x260mm
• Weight 18,5Kg
• Treated air cubic meters/h (H/M/L 620/520/450
• Dehumidification capacity l/hr 1.0
• Sound pressure level (Cooling) dBa 36/33/30/27 (Heating) 36/33/30/27
• Sound Power Level dBA 52/52

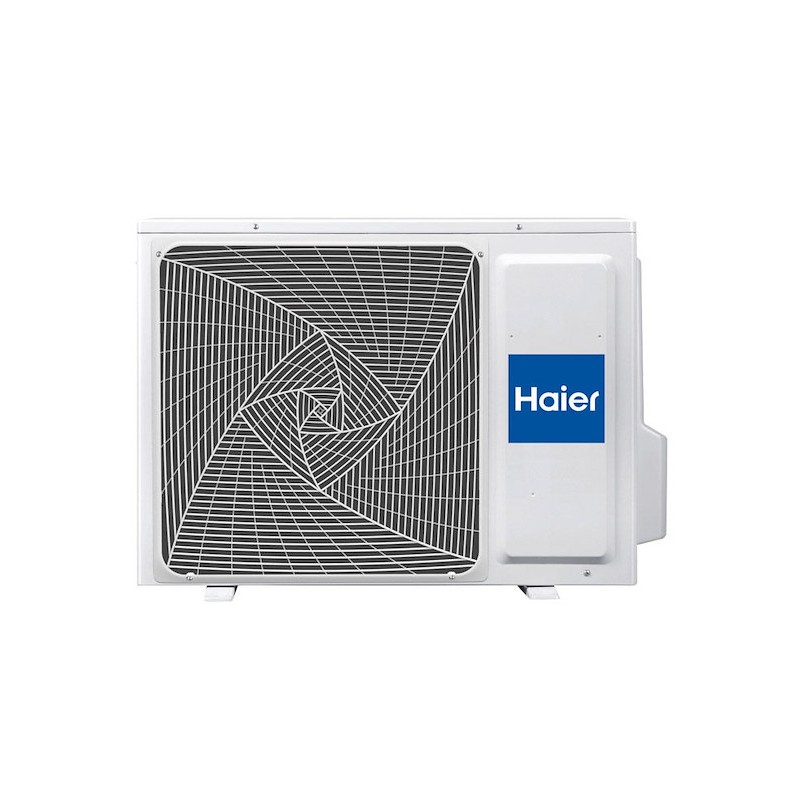

Outdoor Unit Features:

• Dimensions: (WxDxH) 800x275x553mm
• Weight 31,5Kg
• Sound Pressure Level dBa 48
• Sound Power Level dBA 61
• Power supply Single-phase 220-240 / 50Hz
• Liquid/Gas piping 6.35 (1/4") - 9.52 (3/8)
• Max. piping length/min 15/3 meters
• Max height difference between indoor/outdoor unit 10 meters
• Refrigerant Type: Gas R32
• Factory refrigerant charge Kg 0.94
• Additional charge over standard length g/m 20
• Operating limit in cooling mode -10 + 43 Degrees out
• Limit of operation in heating - 15 + 24 Degrees out

PB-620KB panel:

• Net Dimensions: 620x620x60mm
• Net Weight 2.8Kg
