Main Features

• UV-C Lamp Purification
• Wi-Fi control with App hOn to remotely control the air conditioner
• Silver ion antibacterial filter
• Low sound level
• 4 independent ways
• "Fresh Air" air inlet prearrangement (Ø 100mm) to feed fresh air into the room (fresh air inlet up to a maximum of 20 % of the unit's rated air flow rate. More than 20 % penalizes the thermo-cooling capacity of the air conditioner).
• On-Off card
• Condensate drain pump
• Energy class in Cooling A++
• Energy class in Heating A++



Specifications:



Cooling:

• Rated capacity Min/Max: 5.0 KW (1.8-5.8)
• Rated input power: Min/Max kW 1.53 (0.55-2.00)
• SEER 6.10
• Energy class: A++
• EER 3.26
• Indicative annual energy consumption kW/a 363

Heating:

• Rated capacity Min/Max: KW 5.5 (2.0-6.5)
• Rated input power Min/Max 1.52 (0.6-2.00)
• SCOP: 3.8
• Seasonal energy efficiency class A
• COP 3.61
• Indicative annual energy consumption: kWh/a 1932

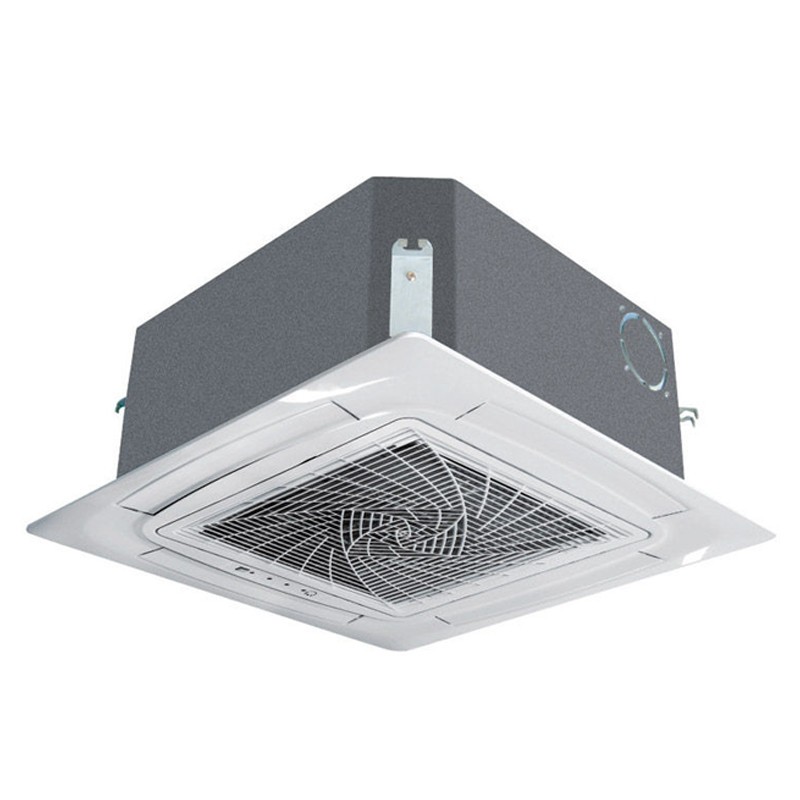

Indoor Unit Features:

• Power supply Ph/V/Hz 1/220~240/50
• Dimensions: (WxDxH) 570x570x260mm
• Weight 19Kg
• Treated air volume (H / M / L) m³/h 700/620/500
• Dehumidification capacity l/hr 2.2
• Sound pressure level (Cooling) dBa 42/37/35/32 (Heating) 42/37/35/32
• Sound Power Level dBA 55/55

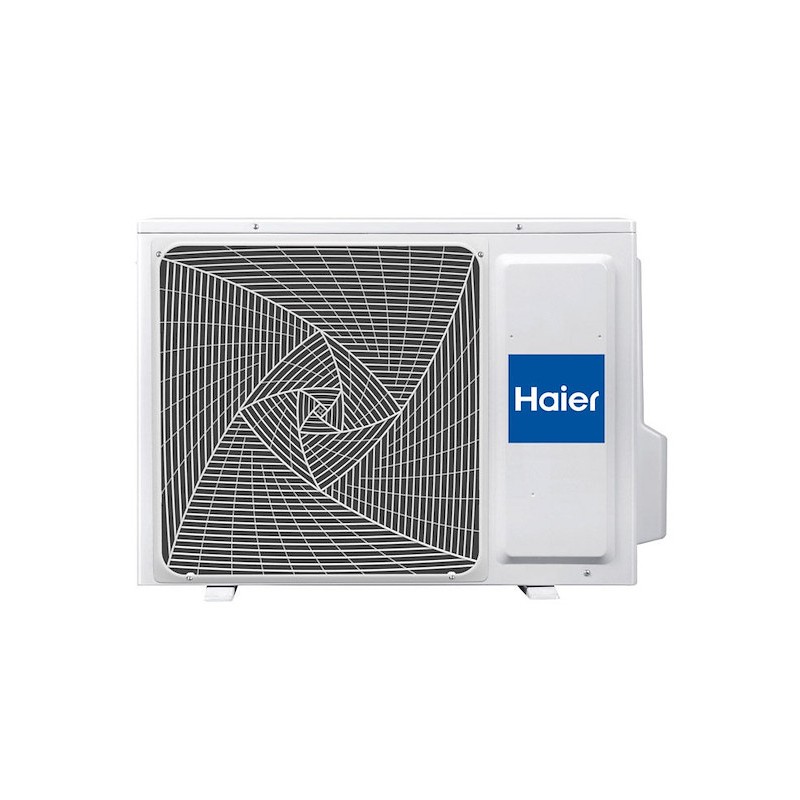

Outdoor Unit Features:

• Dimensions: (WxDxH) 820x338x614mm
• Weight 37.8Kg
• Sound Pressure Level dBa 51
• Sound Power Level dBA 63
• Power supply Single phase 220-240 / 50Hz
• Liquid/Gas piping 6.35 (1/4") - 12.7 (1/2)
• Compressor type Inverter twin rotary
• Compressor brand Mitsubishi
• Max/min piping length 25/3 meters
• Std piping length without additional charge ref 7 meters
• Factory refrigerant charge kg 0.95
• Max height difference between indoor/outdoor unit 15 meters
• Refrigerant Type: R32 gas
• Tons of CO2 equivalent tCO2EQ 0.64
• Additional charge ref. over standard length g/m 20
• Operating limits Cooling min~max °C 21÷35°C (in) / -20÷43°C (out)
• Operating limits Heating min~max °C 10÷27°C (in) / -20÷24°C (out)

Panel PB-620KB:

• Dimensions: WxDxH 620x620x60
• Net weight: 2.8kg
