Haier Round Flow Cassette Air Conditioner 9.2KW 31200BTU 90x90 WIFI R32 A+/A
KIT 25014A80L
6941917657243

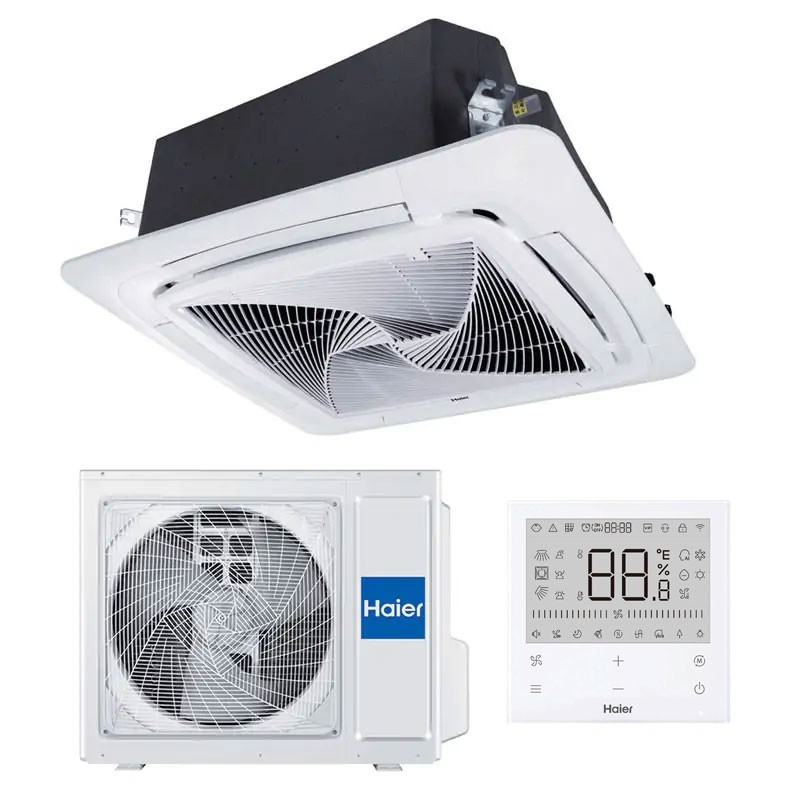

Haier Round Flow 9.2KW 31200BTU Cassette Air Conditioner, WIFI, with GAS R32 Included, Energy Class A+/A 8-Way (4 independent) consisting of:

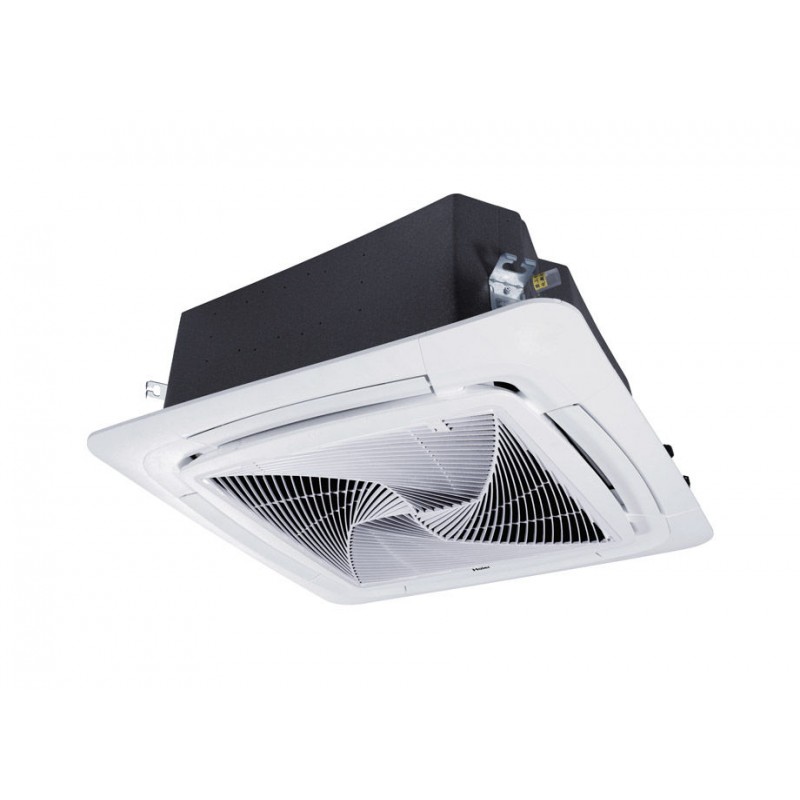

- 1 Indoor Cassette unit 90x90cm (ABH105H1ERG 25014A80L)

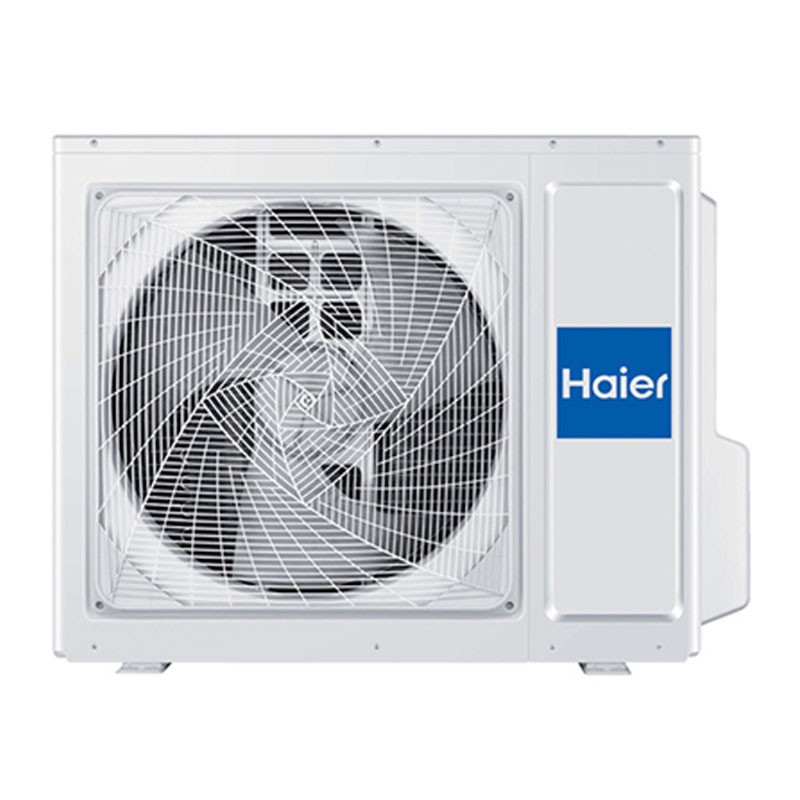

- 1 Single-phase 10.0kW Outdoor unit (1U105S2SS2FA 2502308C2)
- 1 PB950KB SMART Panel 95x95x50cm

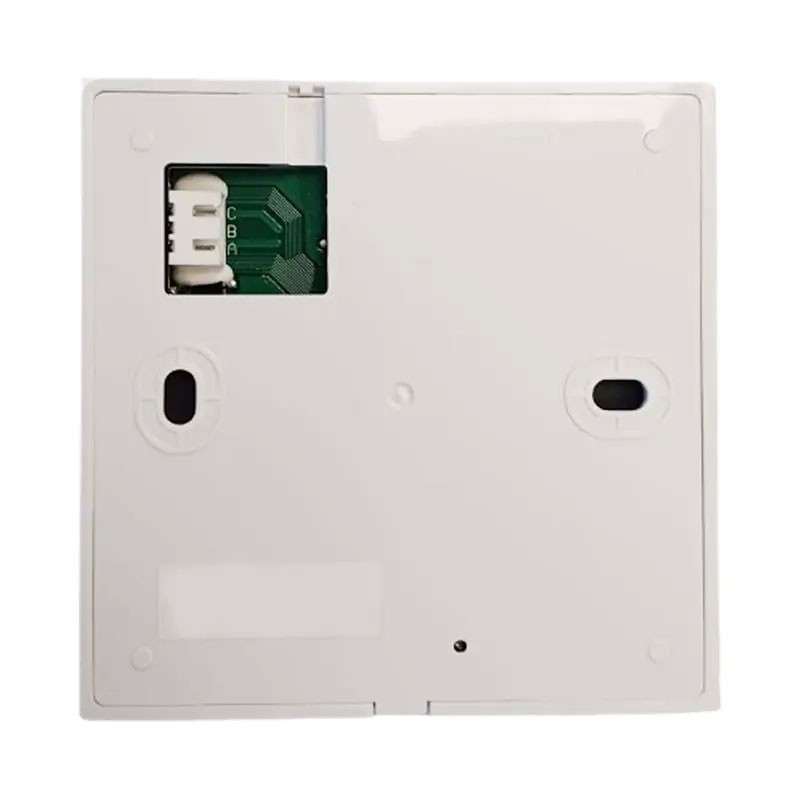

- HW-SA201ABK wired control with daily timer (25030121J).
Wi-Fi control with App hOn to remotely control the air conditioner.
For a room of approximately 150m²
The air conditioner will be delivered pre-charged with gas R32
The air conditioner is also an heat pump, therefore also suitable for heating environments in winter.
![](https://www.elettronew.com/73820-large_default/haier-round-flow-92kw-31200btu-90x90-r32-aa-cassette-air-conditioner.jpg)
Haier Round Flow Cassette Air Conditioner 9.2KW 31200BTU 90x90 WIFI R32 A+/A
€2,839.97
€2,839.97
Tax included
Tax included
Free Shipping
![klarna](/../img/logo-klarna-list.png)
Items Available: 2
Air conditioners of the same series
Main Features
- UV-C Lamp Purification
- Wi-Fi control with App hOn to remotely control the air conditioner
- Silver ion antibacterial filter
- Low sound level
- 8-way (4 independent)
- "Fresh Air" air inlet prearrangement (Ø 75mm) to feed fresh air into the room (fresh air inlet up to a maximum of 20 % of the unit's rated air flow rate. More than 20 % penalizes the thermo-cooling capacity of the air conditioner)
- Condensate drain pump.
Fresh Air:
- Fresh air allows clean air to enter the room. "Fresh Air" air inlet arrangement puts fresh air inside the room, up to a maximum of 20% of the unit's nominal air flow rate
- Low noise level.
Specifications:
Cooling:
- Rated rated capacity Min/Max: 9.2 KW (2.5-10.0)
- Rated input power: Min/Max kW 3.12 (0.5-4.0)
- SEER 5.9
- Energy class: A+
- EER 3
- Indicative annual energy consumption kW/a 555
Heating:
- Rated capacity Min/Max: KW 10.1 (3.0-10.5)
- Rated input power Min/Max 2.91 (0.5-4.0)
- SCOP: 3.8
- Seasonal energy efficiency class A
- COP 3.5
- Indicative annual energy consumption: kWh/a 2780
Indoor Unit Features:
- Power supply Ph/V/Hz 1/220~240/50/60
- Dimensions: (WxDxH) 840x840x240mm
- Weight 31Kg
- Air handled cubic meters/h H/M/L 1680/1530/1320/1190
- Sound pressure level dBa Cooling 45/42/38/34 Heating 45/42/38/34
- Sound Power Level Heating/Cooling dBA 62/62
- PB-950KB Panel
- Net dimensions W x D x H mm 950x950x50
- Net weight 6.5 kg.
Features Outdoor Unit:
- Dimensions: (WxDxH) 920x372x760mm
- Weight 60Kg
- Sound Pressure Level dBa 53
- Sound Power Level dBA 66
- Power supply Single phase 220/240 Frequency 50/60Hz
- Liquid/Gas piping 9.52 (3/8") - 15.88 (5/8)
- Max/min piping length 50/3 meters
- Max height difference between indoor/outdoor unit 30 meters
- Std piping length without additional charge ref 30 meters
- Refrigerant Type: R32 gas
- Factory refrigerant charge 1.7 kg
- Additional charge beyond standard length 45 g/m
- Operating limits Cooling min-max 21 +35 degrees (in) -10 -46 degrees (out)
- Operating limits Heating min-max 10 +27 Degrees (in) -15 -24 Degrees (out)
Data sheet
- Air conditioners:
- Cassette
- Gas:
- R32
- Power:
- 31200 BTU (9,2 Kw)
- WIFI:
- Integrated
- Room Size:
- 150m²
- Energy class:
- A+
- Series:
- Round
