Product Details

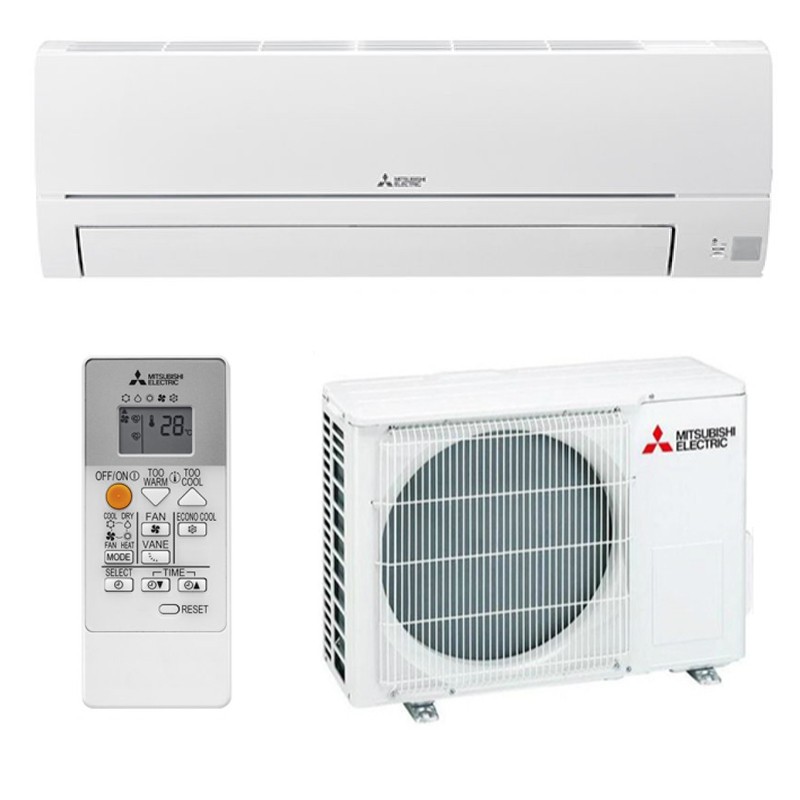

DC INVERTER: The Inverter system is an electronic device for efficiently varying the speed of the compressor and, consequently, the power output of the air conditioner according to the cooling or heating demand. Compared with conventional air conditioners with fixed speed (On/Off), inverter air conditioners reach the required temperature sooner and keep it stable, without annoying surges, benefiting comfort and power consumption.
Beyond Class A++/A+ Operating economy is the great advantage of Mitsubishi Electric air conditioners.
Thanks to the careful design of all components and the use of state-of-the-art technologies, energy efficiency reaches extraordinary levels even on a seasonal basis. In particular, the Smart Line achieves SEER and SCOP (seasonal efficiency indices) values above Class A++/A+ across the entire range.
MELCloud, the Wi-Fi control ( OPTIONAL ) is the new Wi-Fi control for your Mitsubishi Electric system. Leveraging the support of the cloud (the "Cloud") to transmit and receive information and the optional dedicated Wi-Fi interface (MAC-567IF-E), you can easily control your system wherever you are via your PC, tablet or smartphone; all you need is an internet connection. The MELCloud service is designed to have maximum compatibility with PCs, Tablets and Smartphones through dedicated Apps or via Web Browser.
Technical features
Cooling:
- Min/Max capacity: KW 3.4 (0.9/3.4)
- Rated input power: kW 1.21
- SEER 6.2
- Energy Class: A++
- EER 2.8
- Indicative annual energy consumption kW/a 191
Heating:
- Min/Max capacity: KW 3.6 (0.9/3.7)
- Rated input power: 0.975
- SCOP: 4.3
- Seasonal energy efficiency class A+
- COP 3.6
- Indicative annual energy consumption: kWh/a 781

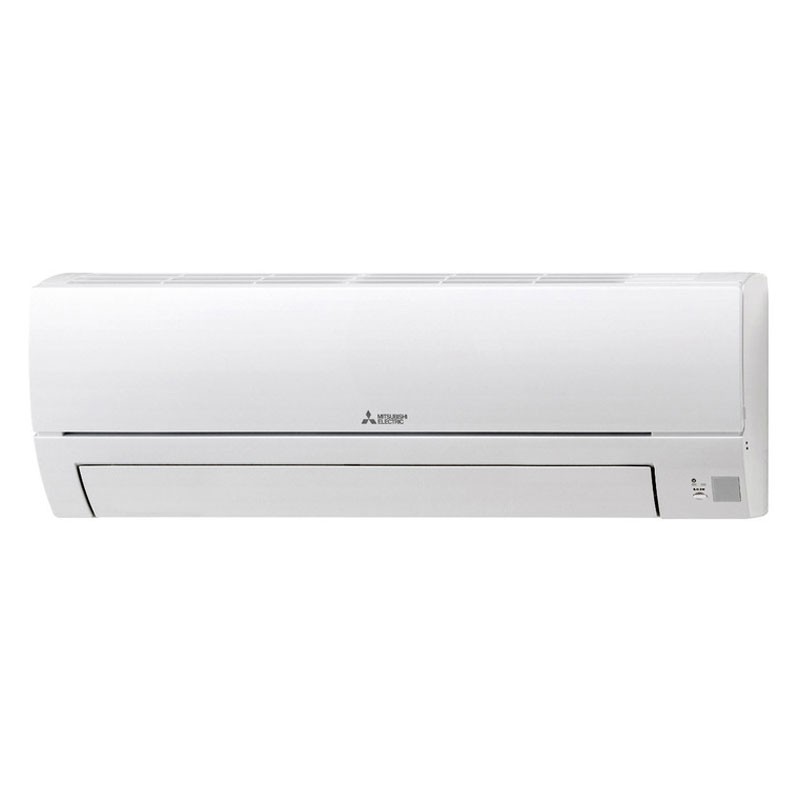

Indoor Unit Features:
- Dimensions: (HxWxD) 280x838x228mm
- Weight 8.5Kg
- Air handled Cooling cubic meters/min 3.6/5.6/7.8/11.7
- Air handled Heating cubic meters/min 3.3/5.4/7.4/10.5
- Dehumidification capacity l/hr N/A
- Sound pressure level (Cooling/Heating) dBa 22-31-38-46 / 21-30-37-44
- Sound Power Level dBA 60

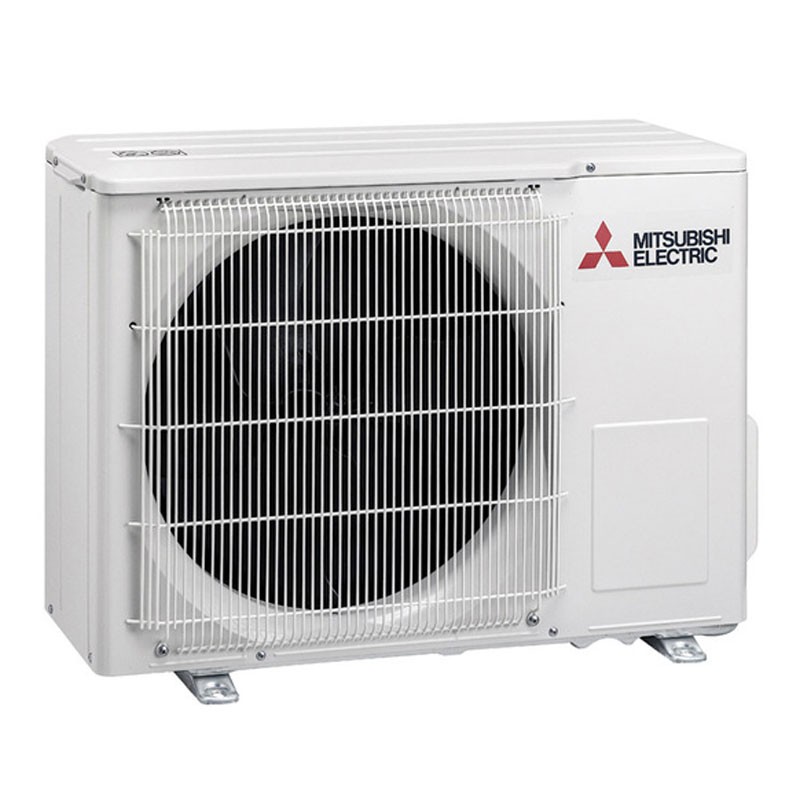

Outdoor Unit Features:
- Dimensions: (HxWxD) 538x699x249mm
- Weight 24Kg
- Sound Pressure Level dBa 51
- Sound Power Level dBA 64
- Power Supply Single Phase 220-240 / 50Hz
- Liquid/Gas piping 6.35 (1/4") - 9.52 (3/8")
- Max/min piping length 20/3 meters
- Max height difference between indoor/outdoor unit 12 meters
- Refrigerant Type: R32 Gas
- Guaranteed operating range Cooling °C -10 ~ +46
- Guaranteed operating range Heating °C -10 ~ +24
- Factory Gas Precharge Kg 0.45
- Refrigerant GWP2 / Tons. Co2 Eq 675 / 0.30

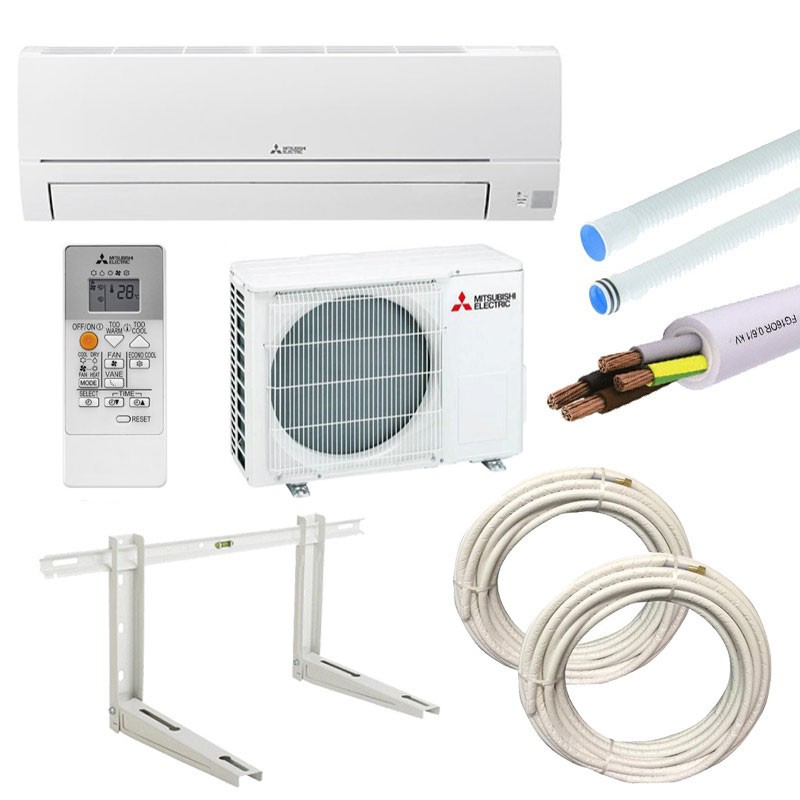

Product specifications in the Mounting Kit:
Wall brackets for 9000 and 12000 btu air conditioners for outdoor motor:
- Galvanized and powder coated steel brackets.
- Brackets complete with quick-fit anti-vibration feet
- Stainless steel hardware in KLIMA STRONG INOX and KLIMA TOP INOX SCREWS items.
- KLIMA STRONG and KLIMA HEAVY for non-standard machines
- KLIMA TOP shelf for maximum quality
- KLIMA GROUND and KLIMA FOOT anti-vibration bases available for floor installations
- White RAL 9002
- Arm lengthL1 420 mm
- Height 400 mm
- Bracket thickness 15/10 mm
- Crossbar length 780 mm
10 meters Double Insulated Flameproof Cable 5X1.5 mmq
Arnocanali condensate hose D. 17-20mm 10 meters:
- BIESTRUSO anti-crushing corrugated hose. Manufactured with double layer of POLYPROPYLENE to ensure maximum safety in under-track use. Hose constructed from Polypropylene stabilized against UV rays. Operating temperature - 30°C + 75°c.
Tecnogas FAST PIPE kit consisting of:
- 2 pipes by 6 meters one with female-female connections Diameter 1/4 (diameter 6.35) and one with female-female connections Diameter 3/8 (diameter 9.52) conical with copper gaskets included. Suitable for 9000/12000btu air conditioners.
Construction characteristics of the compartment pipe:
- Closed-cell expanded polyethylene
- Polymer barrier
- 4-layer aluminum film
- long-chain polyamide
- high-tenacity synthetic fiber
- anti-Uv and anti-IR coating
- anti-Uv film
Fittings: brass "Propeller": Calipers, Screwdrivers, Crimps.
Field of use F-gas refrigeration circuits containing R410A-R32-R134A-R404A-R407C
Operating temperatures -30°C/110°C (Max 130 C° non-continuous)
Maximum operating pressure 100 Bar
