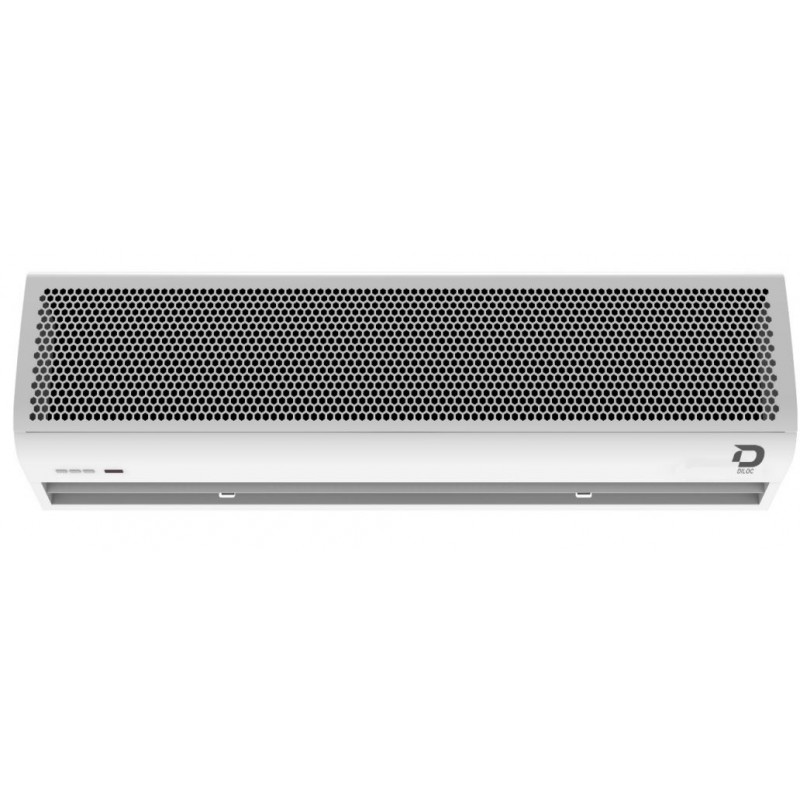

Naicon Eco Line Air door 90cm D.45000BAR-N
Air door Naicon Eco Line 90 cm. The rate of air emitted from these products is best used to create an invisible barrier to be put over the entrances of industries, theatres, offices, warehouses, pharmacies, etc., Installed at the entrance of the environments, avoid also to create an exchange of heat, the entry of dust, pollution,flies, or gas, making the environment comfortable.
Naicon Eco Line Air door 90cm D.45000BAR-N
Naicon Eco Line Air door 90cm D.45000BAR-N
Tax included
Naicon Eco Line Air door 90cm D.45000BAR-N
Air curtains are produced, based on recent research for the development of technological products, against the dispersion of the energy used to condition an environment.
How to Select the model:
Based mainly on the height and the width of the input on which to install it. Also take into account the diameter of the impeller. Take care not to install air barriers smaller in size compared to the door where will be placed, as this could cause leakage making compartment, the use of the barrier. Select the model, based mainly on the height and the width of the input on which to install it. Also take into account the diameter of the impeller. Take care not to install air barriers smaller in size compared to the door where will be placed, as this could cause leakage making compartment, the use of the barrier.
Features:
- Width 90cm
- Supply voltage 50Hz 220-240 V
- Power consumption 325W
- Maximum height of installation (3.5 m)
- Volume air flow 1200 m3/h
- Speed air flow 14.5 m/s
- Noise level Indoor Unit (min/med/max) ? 56 db/A
- Dimensions Indoor Unit Hxwxd 230x900x212 mm
- Indoor Unit weight 17Kg
- Centrifugal fan
- Compliance with CE regulations.
Data sheet
- Type:
- Air curtains
- Power:
- 325W
- Air flow:
- 180W
