Vortice AIR Door AD1200 Air door with standard remote control 65196

Vortice
VOR 0000065196

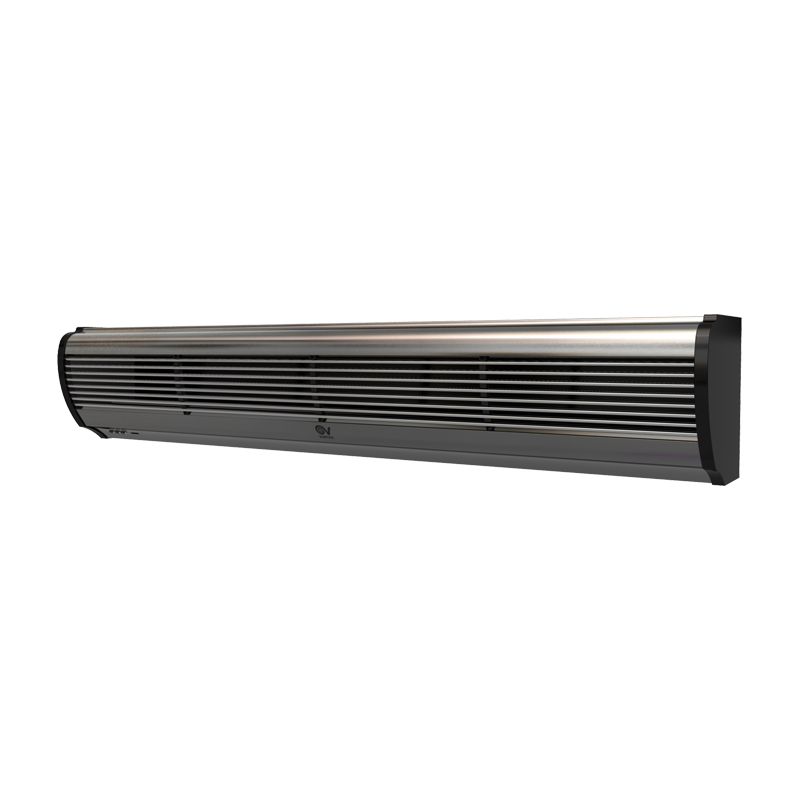

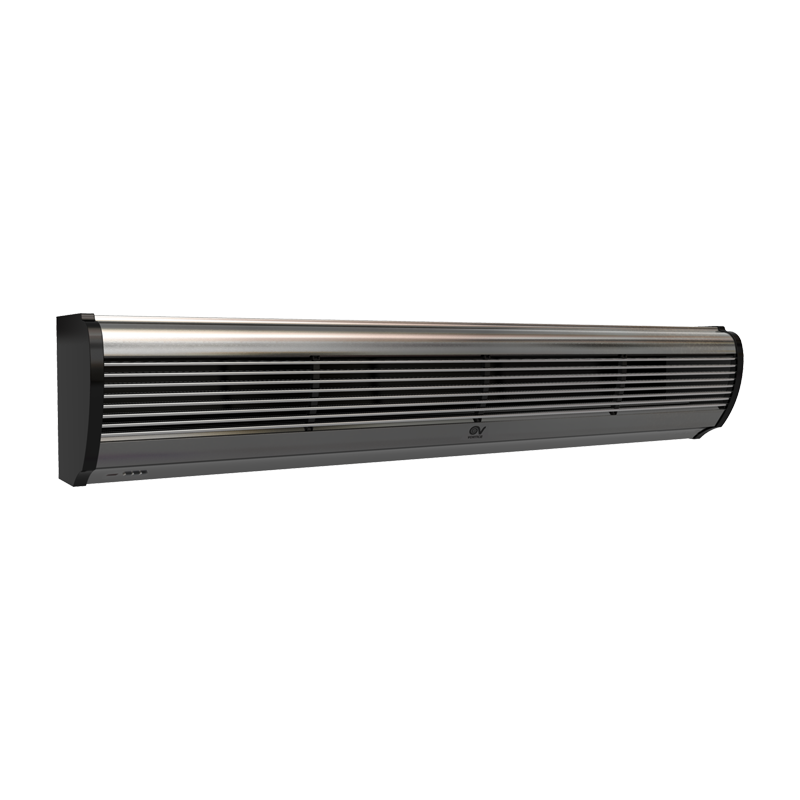

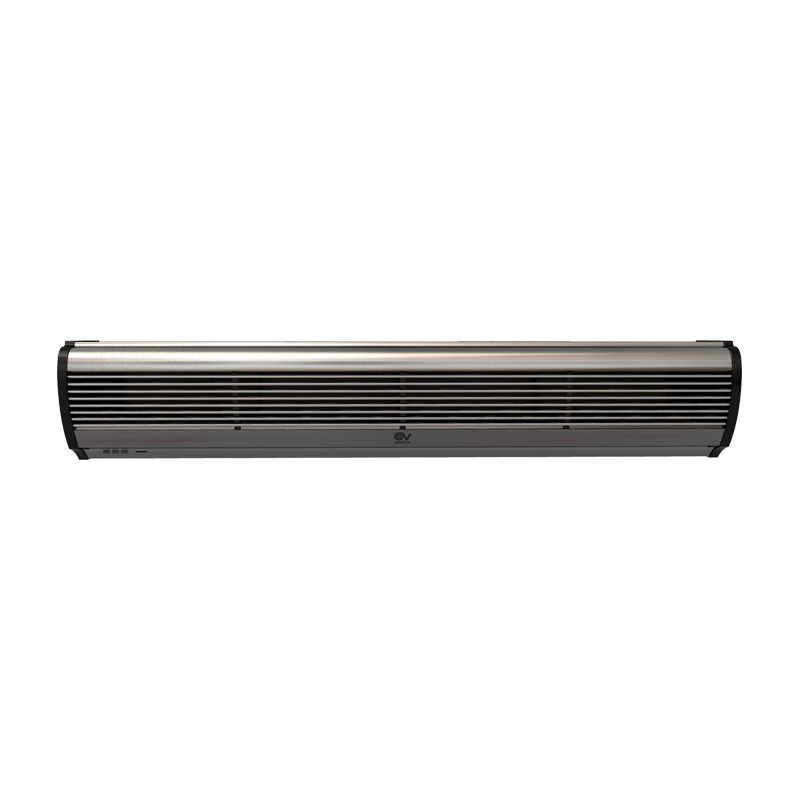

Vortice AIR DOOR AD1200 air curtain with remote control as standard, with the following features:



  • Voltage 220-240V
  • Max current consumption: 0.87A
  • Frequency: 50 Hz
  • Number of speeds 2
  • Weight: 12,5 Kg
  • Max power consumption at max speed: 200W
  • Max power consumption at minimum speed: 150W
  • Max. ambient temperature for continuous operation: 30°C
Do you have questions about this product or did you not find what you were looking for? Ask us!

Vortice AIR Door AD1200 Air door with standard remote control 65196

€279.41
€279.41

Vortice AIR Door AD1200 Air door with standard remote control 65196

€279.41
Tax included
Items Available: 10
Further availability of the manufacturer

Vortice AIR Door AD1200 Air door with standard remote control 65196

€279.41

Buy it within and receive it from Monday, 11 November
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Advantages:

  • Front panel in silver-grey satin-finished aluminium with air intake grille consisting of 9 horizontal polished aluminium elements. The rear body in black sheet metal acts as a support for the fixing of the components inside the product
  • The black side panels are made of ABS thermoplastic resin
  • Rated width: 1200 mm
  • Neutral version (air at room temperature) and 2 operating speeds
  • AC bi-shaft motor, thermally protected
  • Minimum flow rate: 1600 m3/h
  • Maximum flow rate: 1900 m3/h
  • 2 tangential fans, made of black thermoplastic resin (SAN), ultrasonically welded, direct the air through a longitudinal opening at the bottom of the machine
  • IR remote control, with a button to switch the product on/off and select speeds; the same controls are located on the front panel of the product (3 buttons)
  • Power cable with schuko plug
  • Possibility of combination with standard "door sensors".
  • Adjustable fins to direct the air jet



Other features:

  • Max flow rate at max speed (l/s) 527
  • Max flow rate at max speed (m³/h) 1900
  • Max. flow rate at minimum speed (l/s) 444
  • Max. flow rate at minimum speed (m³/h) 1600
  • Sound pressure level Lp [dB (A)] 2m - max speed 58
  • Sound pressure Lp [dB (A)] 2m - min speed 56
  • RPM max 1450
  • RPM min 1400
  • Air speed at max speed (m/s) 11
  • Air speed at minimum speed (m/s) 9

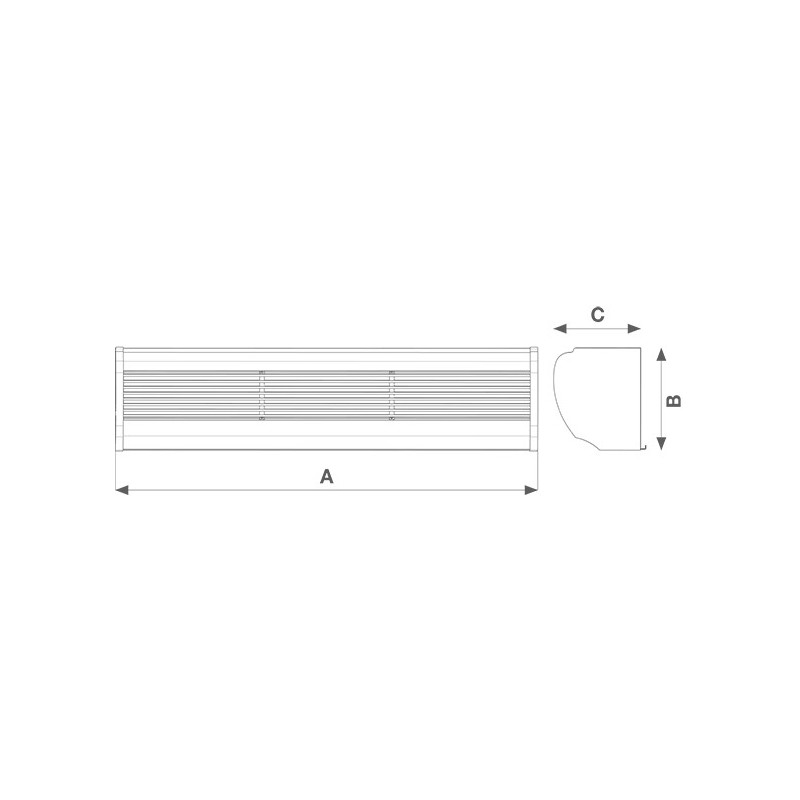

Dimensions:

  • A (mm) 1200
  • B (mm) 220
  • C (mm) 190

There are no reviews

Data sheet

Type:
Air curtains
Power:
200W
Air flow:
1900 m3/h
