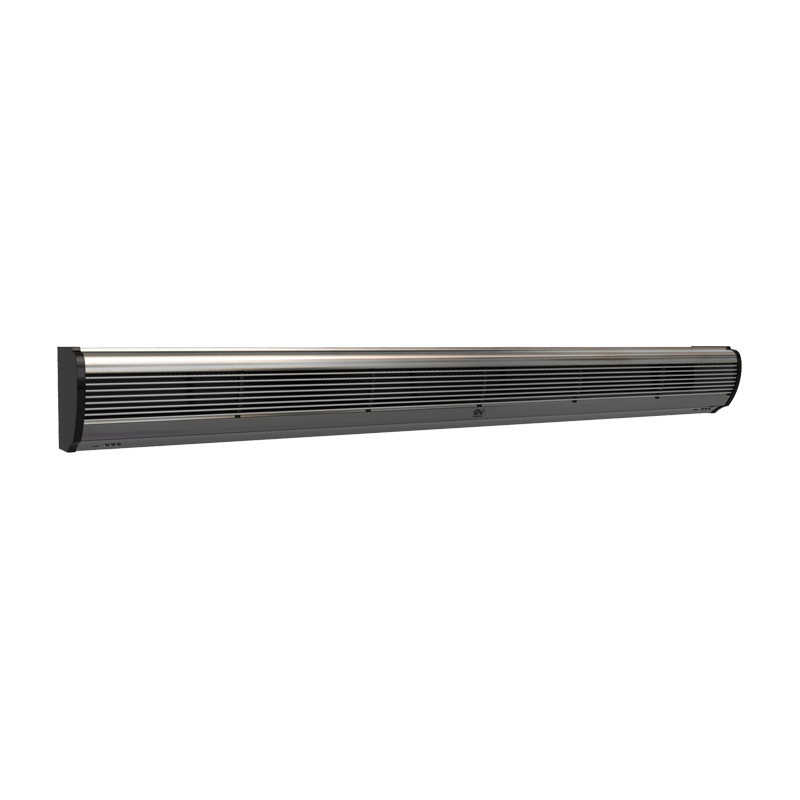

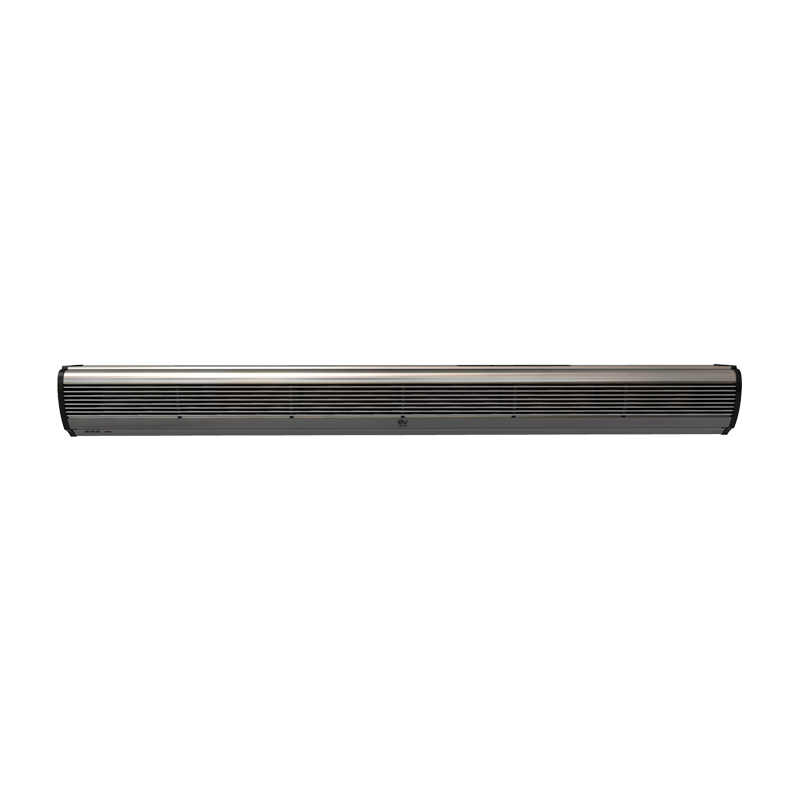

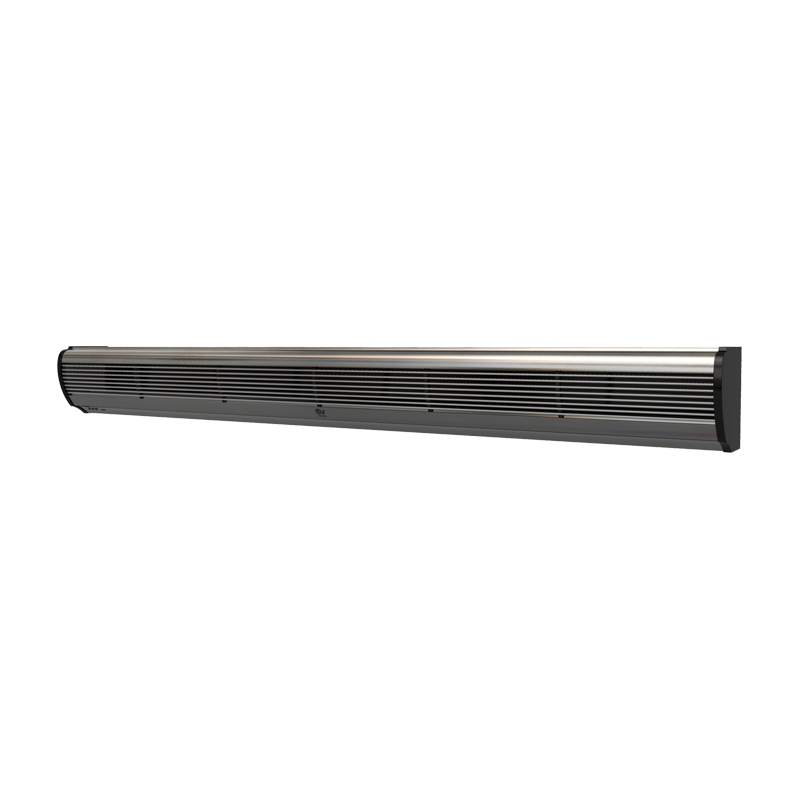

Vortice AIR Door AD2000 Air door with remote serial 65198
VOR 0000065198
8010300651989
Vortice AIR Door AD2000 Air curtain with remote control 65198 - Width 200 cm
Vortice AIR Door AD2000 Air door with remote serial 65198
€471.80
€471.80
Tax included
Tax included
Items Available: 11
: 2
Silver-coloured satin aluminium front panel with air intake grille consisting of 9 horizontal polished aluminium elements. The black sheet-metal rear body acts as a support for fixing the internal components. The black side panels are made of ABS thermoplastic resin.
Advantages:
- Rated width: 2000 mm
- Neutral version (room temperature air) and 2 operating speeds
- Twin-shaft AC motor, thermally protected
- Minimum flow rate: 2900 m3/h
- Maximum flow rate: 3600 m3/h
- 2 tangential fans, made of black thermoplastic resin (SAN), ultrasonically welded, direct air through a longitudinal opening at the bottom of the machine
- IR remote control, with a button for switching the product on/off and for speed selection; the same controls are located on the front panel of the product (3 buttons)
- Power cable with schuko plug
- Can be combined with standard 'door sensors'
- Adjustable flaps to direct the air jet.
Technical specifications:
Max. current consumption (A) 1.52
Frequency (Hz) 50
Number of speeds 2
Weight (Kg) 20,5
Max. power input at max speed (W) 350
Max. power input at min speed (W) 300
Max. ambient temperature for continuous operation (°C) 30
Voltage (V) 230
Max. flow rate at max. speed (l/s) 1000
Max. flow rate at max. speed (m³/h) 3600
Max. flow rate at min. speed (l/s) 805
Max. flow rate at min. speed (m³/h) 2900
Sound pressure level Lp [dB (A)] 2m - max. speed 61
Sound pressure Lp [dB (A)] 2m - min speed 59
RPM max 1450 RPM min 1400
Air speed at max. speed (m/s) 11
Air speed at min speed (m/s) 9

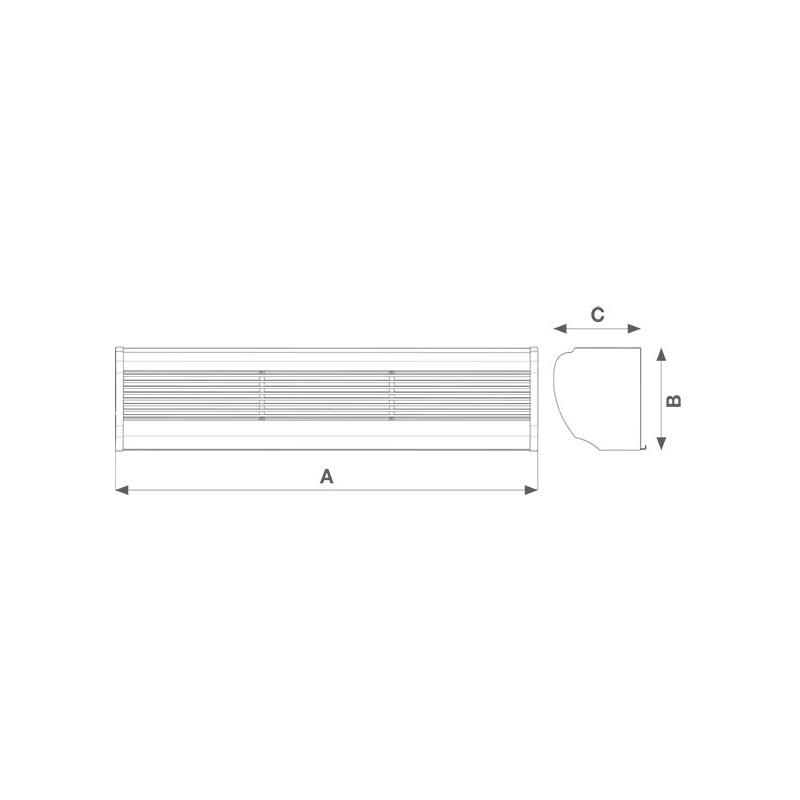

Dimensions: Width 200 cm - Height 22 cm - Thickness 19 cm
Data sheet
- Type:
- Air curtains
- Power:
- 350W
- Air flow:
- 3600 m3/h
