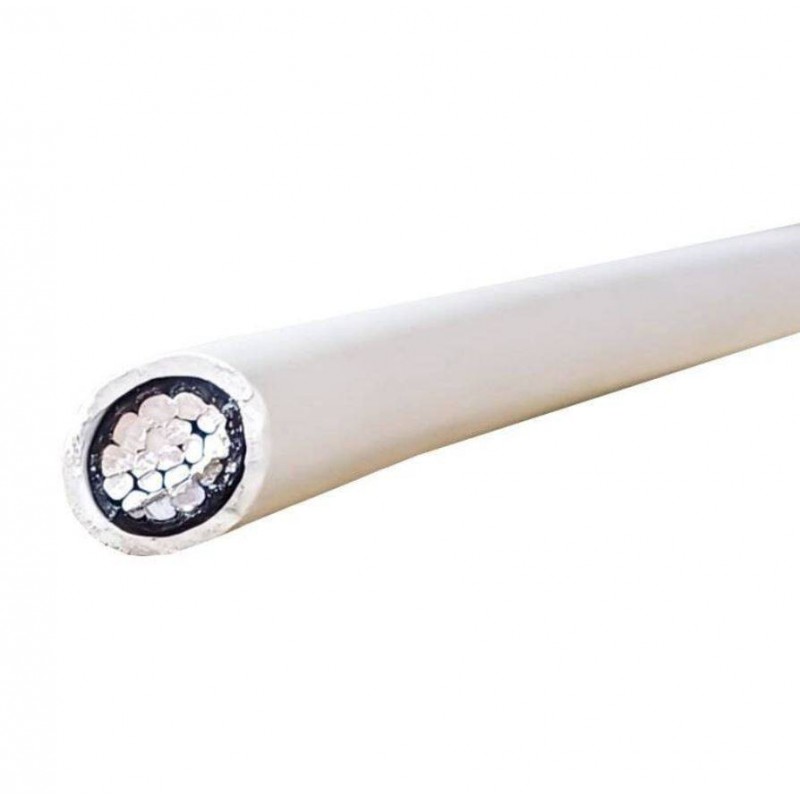

Single-core ARG16R16 aluminum conductor cable 1x16 sq. mm 0.6/1KV

Brand: Cavi

Code: 9X9 ARG161X16 EAN:

ARG16R16 Aluminum Unipolar Cable, with aluminum conductor and high-quality ethylene-propylene rubber insulation, is designed for power transmission applications in residential and industrial construction. With advanced fire reaction characteristics, it ensures safety and high performance under harsh operating conditions, with the following features:

Conductor diameter: 4.9 mm
Insulation thickness: 0.7 mm
Outer diameter: 9.1 mm
Electrical resistance: 1.91 ohm/km
Current carrying capacity in free air: 70A
Current rating in air tube: 64A
Current rating in buried pipe: 98A
Current flow rate in buried pipe: 75A

The selling price is intended per meter.

The producers of our cables are:

Baldassari cavi
Icel
La Triveneta
Prysmian

The delivery of the cable from one manufacturer rather than another is dictated by the availability of the moment. All our cables comply with the relevant legal regulations.

The right of withdrawal does not apply to this product as the cables are cut according to your personal specifications.

Single-core ARG16R16 aluminum conductor cable 1x16 sq. mm 0.6/1KV

€0.96

Single-core ARG16R16 aluminum conductor cable 1x16 sq. mm 0.6/1KV

€0.96
Tax included

Items Available: 425

: 340

Further availability of the manufacturer

Two-year warranty

Purchase with tax breaks

Are you a professional ?

Request access to

Description

Single-core ARG16R16 aluminum conductor cable 1x16 sq mm 0.6/1KV

The cable is ideal for both residential and industrial electrical installations. Its sturdy structure and thermal resistance make it suitable for energy transport in dry, damp or wet rooms, as well as outdoor environments exposed to the elements.

Safety and regulatory compliance

The cable meets CPR requirements and offers high performance in terms of fire resistance, ensuring safety in case of emergency.

Installation versatility

Designed to be installed on masonry, metal structures and directly underground, the cable offers great flexibility of use in different plant configurations.

Technical performance and reliability

With its combination of rigid aluminum conductor and advanced insulation materials, the cable provides electrical efficiency, mechanical strength and operational longevity. Its technical specifications make it ideal for high-performance applications for both civil and industrial use.
