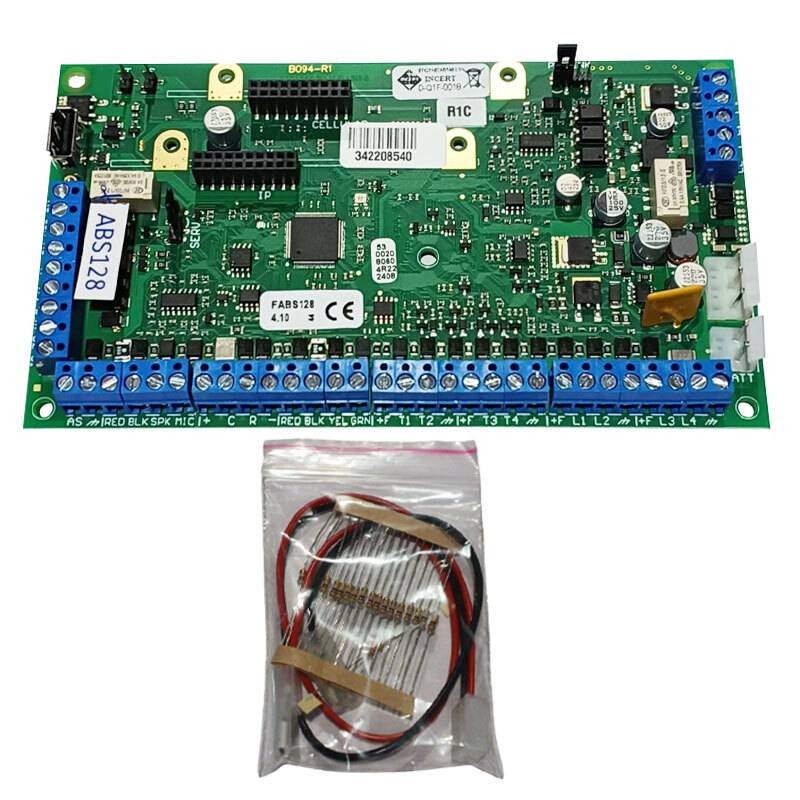

Card for Bentel Absoluta Plus Hybrid 8A 128 zone ABS-128 control panel
BSY ABS-128
Bentel Absoluta Plus Hybrid 8A control unit card with the following features:
- Maximum number of zones (wired and wireless): 128
- Maximum number of wireless zones: 128
- User codes: 127
- Installer codes: 2
- Keypads: 16
- Tags, keys and proximity cards: 250
- Radio keys: 32
- Proximity readers (tags, keys and cards): 32
- Input/output expansions: 32/16
- Power stations: 4
- Areas: 16
- Maximum number of outputs: 50
- Timers: 16
- Voice messages: 206
- Phone numbers in address book: 32
- E-mail addresses: 32
- Management via ABSOLUTA APP
- Management via telephone (DTMF)
- Management via telephone (SMS)
- Triple balanced zones
Card for Bentel Absoluta Plus Hybrid 8A 128 zone ABS-128 control panel
€284.74
€284.74
Tax included
Tax included
Items Available: 5
: 1
Frequently bought together
TheABSOLUTA Plus control panel is the heart of a modular and programmable security system that can adapt to all installation requirements. The ABSOLUTA Plus control panel can be connected to wired devices and to supported BW two-way radio devices. The installer can also program the ABSOLUTA Plus central unit via the BOSS console remotely, via cell phone or IP. The ABSOLUTA Plus central unit can send alarm messages to supervisory stations via PSTN, cellular, and IP. The end user can manage the ABSOLUTA Plus control panel via LCD and touch keypads, proximity tags, remote controls, sms and dedicated app.
Absoluta Plus combines the renowned reliability and flexibility of Absoluta control panels with the market-leading PowerG wireless technology. Available as both a fully wired and hybrid system with a wide range of compatible devices, Absoluta Plus offers many new business opportunities for residential and commercial system installers. Designed according to Italian design and quality, this new security solution is another step in the evolution of the Absoluta platform, built with the same passion and attention to detail demanded by an increasingly demanding market.
Simply Powerful User Interfaces:
- Up to 16 touchscreen keypads for user-friendly operations
- Up to 32 proximity readers for tags and keys (up to 250) to perform operations without the need to remember any PINs
- Up to 16 LCD keypads for User and Installer operations
Full System Remote Control:
- Remote management of the control panel through voice guidance
- Remote listening and hands-free conversation with AS100 accessory
- Remote control via SMS: remote arming, disarming, output activation via SMS
- User APP (iOS, Android and Windows Phone) for remote control
New Home Automation Horizons:
- Powerful event/action system to control actions (output, calls, sms) on each event recorded on the control panel
- Up to 50 programmable outputs: polarity, time, swing and event trigger
- All input zones of the central unit can be used as inputs with home automation control functions
- Built-in time programmer to define up to 8 automatic arming/disarming per day for each individual partition
- 20 timers for 8 home automation activations per day
Absolute Communication:
- Voice annunciator with messages for each event/zone and customizable audio library
- CID and SIA digital communicator over PSTN or GSM
- GPRS/IP communication with Sur-Gard receivers
- Phone book with 32 numbers - including white and black list
- SMS or e-mail available for each event 360° programming
- Powerful Bentel Operating Security Software (BOSS) for complete programming of the control panel
- Connection of BOSS locally with USB port or remotely on GPRS or IP channels
- Ability to program via USB key
- Programming from keypad for basic operations
- Grade2/Grade3 certification
- Up to 128 zones with logical assignment to physical zones
- Full management of partitions (up to 16)
- Storage of up to 2000 events
- 9 languages available on the control panel
- Firmware upgrade with USB key
There are no reviews
Data sheet
- Type: Expansion Cards
