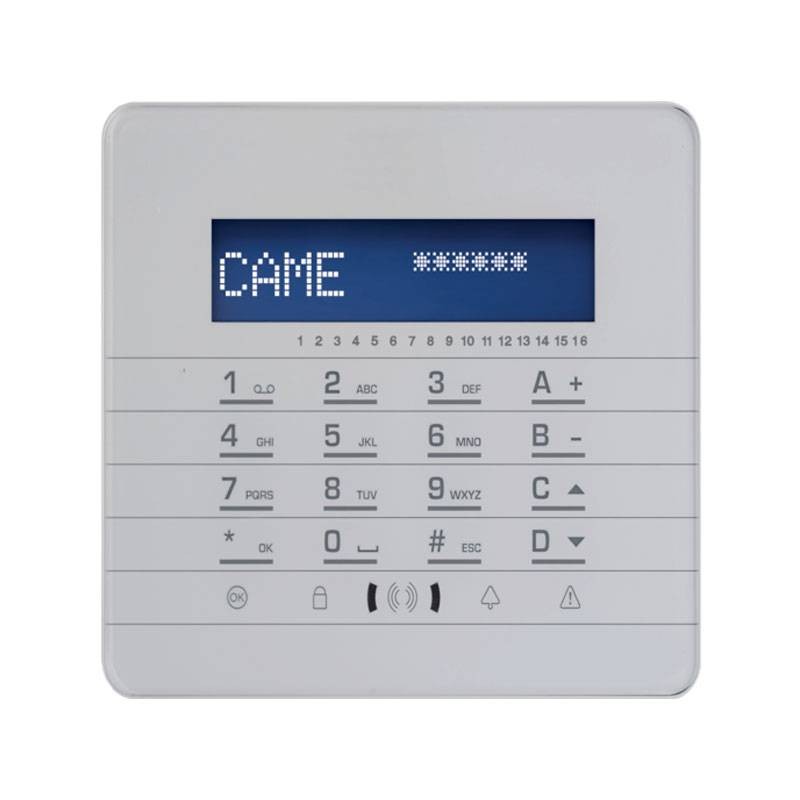

Bpt Came PXKTB02 Wired LCD Keyboard White 846CA-0110
CMC 846CA-0110
8050456067401
Bpt Came PXKTB02 LCD Keyboard:
- Capacitive with touch keys
- White color
- Allows programming of all control panel parameters and total control of the system by launching 16 scenarios (programmed partitions, e.g.: NIGHT scenario insert perimeter area, outdoor area, day area) set in the control panel
- Provides an on-board transponder key inserter for use with PXTAG01 key and two terminals freely programmable as inputs or outputs (PXC2 only) of the control unit to which it is connected (in compliance with the maximum number of wire inputs and outputs, provided for each control unit, which does not vary with the addition of keypads)
- In order to minimize consumption, keypads are activated and illuminated by a sensor only when the operator is present and using them
- Can be installed directly on the wall or flush-mounted with box item OPALESI (see installation example)
- Power consumption 140 mA
- Dimensions 158 x 138 x 31 mm
- Regulatory compliance EN 50131-3 GRADE 3
- Environmental class II
Compatible with:
- The 2019 control panels (PXC2-32 - PXC2-64 - PXC2-212)
- The control panels prior to the year 2019 (PXC48 - PXC96 - PXC200) N.B. For those prior to the year Not available triple balancing for on-board terminals.
Bpt Came PXKTB02 Wired LCD Keyboard White 846CA-0110
€190.97
€190.97
Tax included
Tax included
Items Available: 3
: 1
Frequently bought together
There are no reviews
Data sheet
- Type:
- Keyboards
