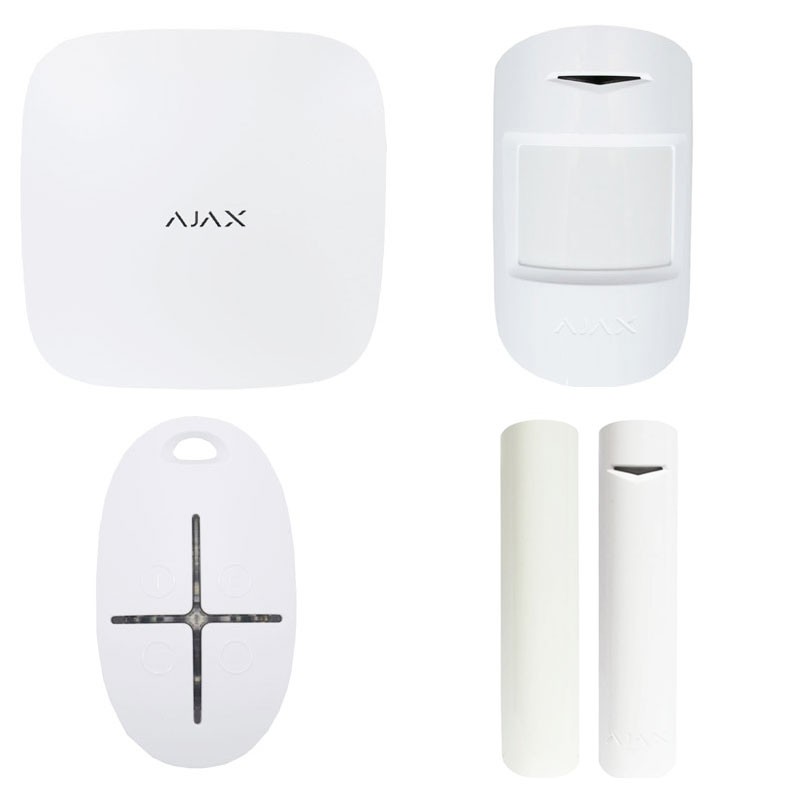

Kit Content Specifications:

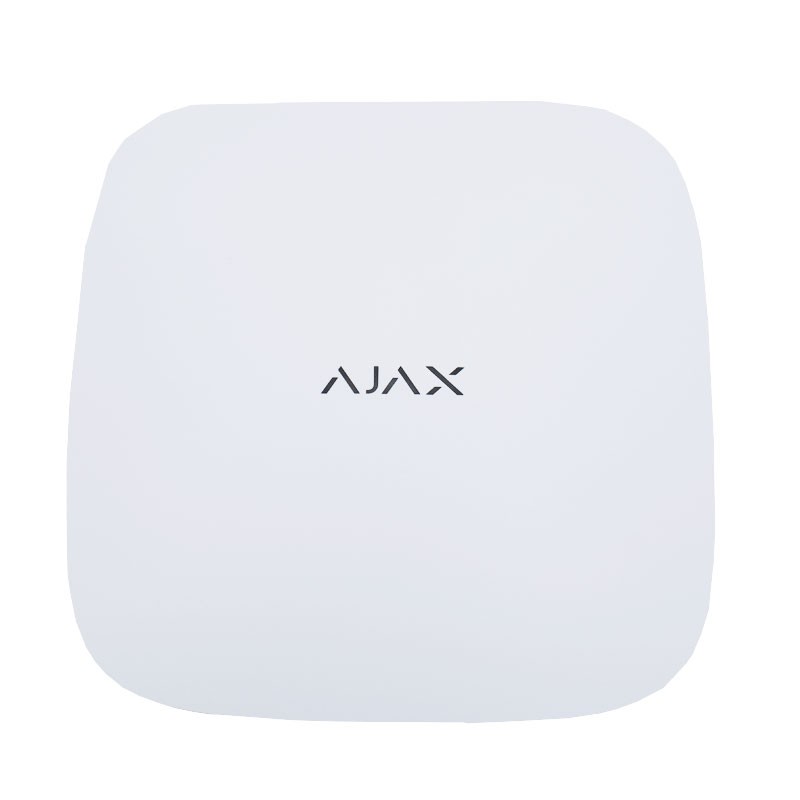

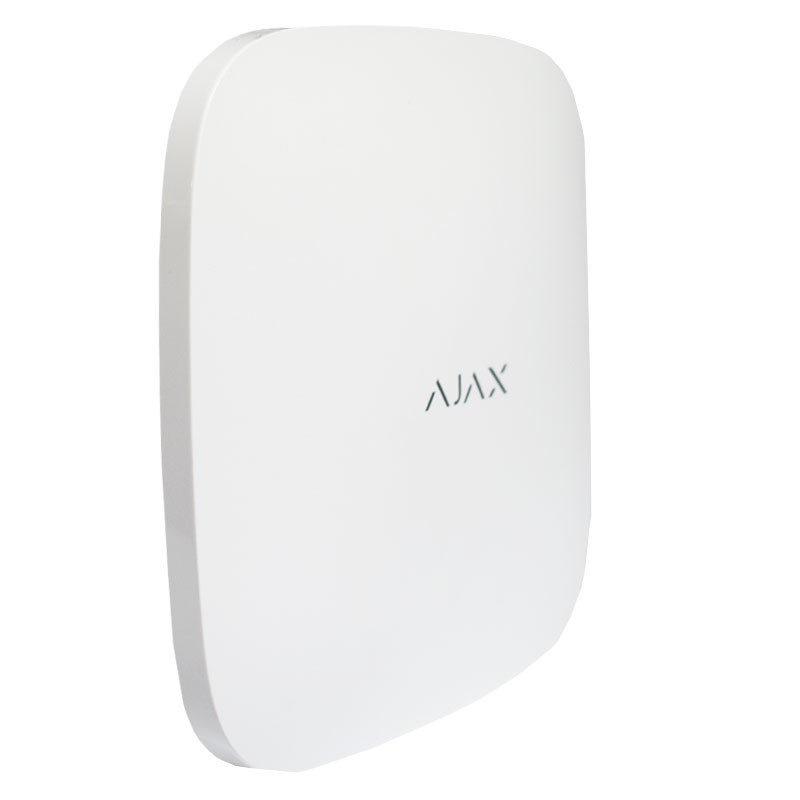

• AJAX HUB 100 Zone wireless alarm control unit, color White, for professional installations in both residential and commercial settings. Communication is realized via Ethernet and/or GPRS. Two-way supervised connection from detectors and accessories is made via radio frequency following its own protocol, Jeweller, in the 868 MHz band, obtaining Grade 2 certification.

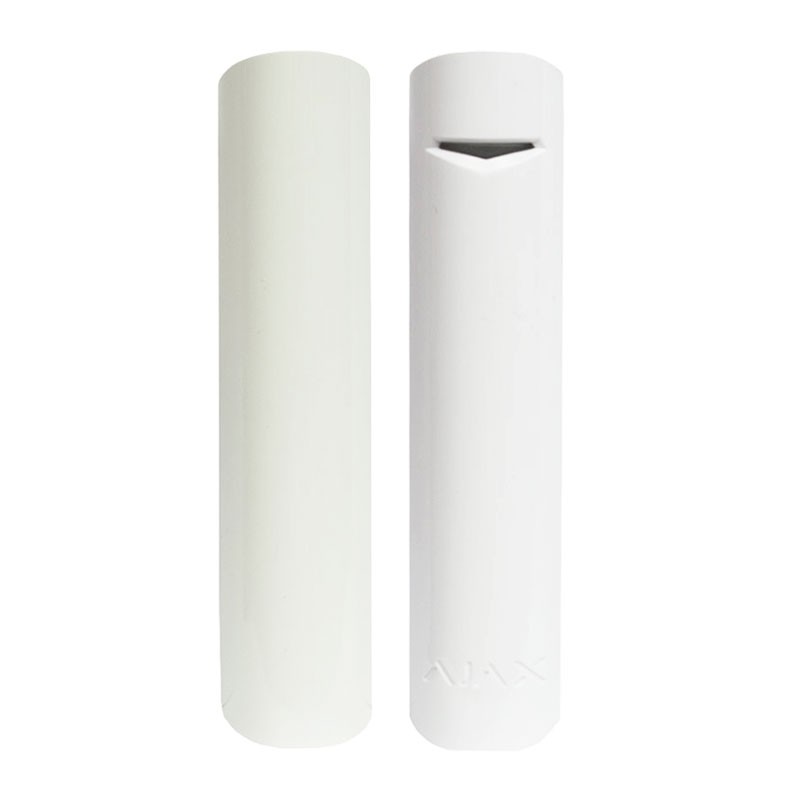

• Magnetic Contact AJ-DOORPROTECT-W wireless AJAX for doors and windows white color, It sends a notification at the first signs of intrusion into a room through breaking a door or window. Can be installed on all types of doors and metal surfaces.

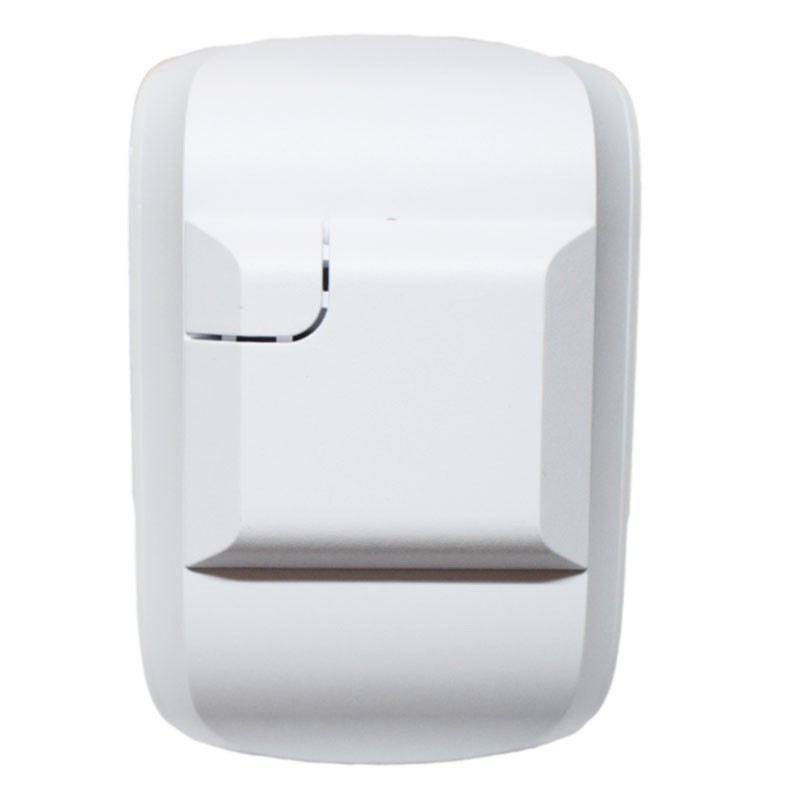

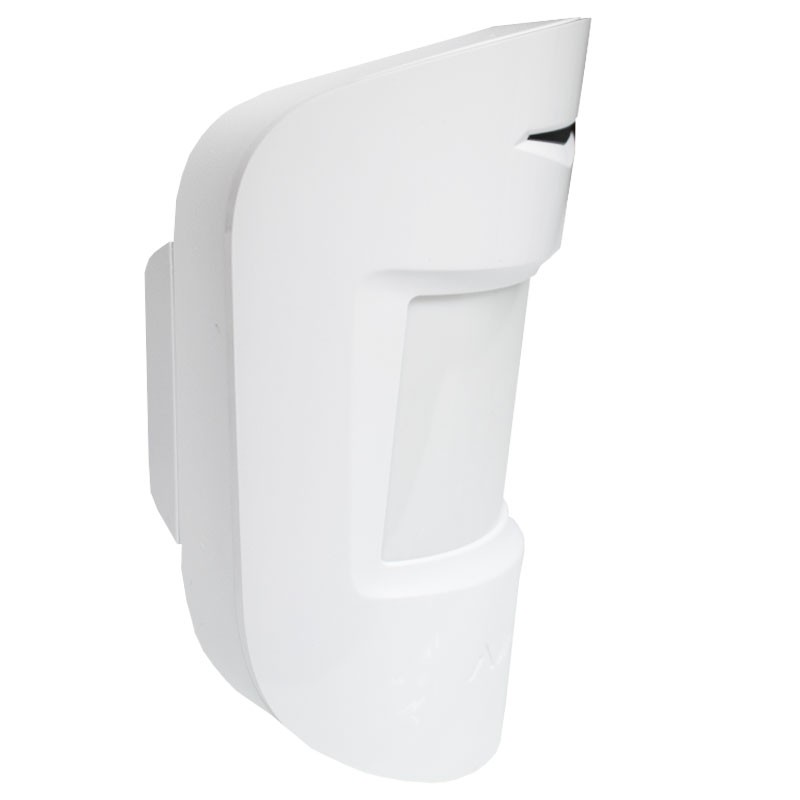

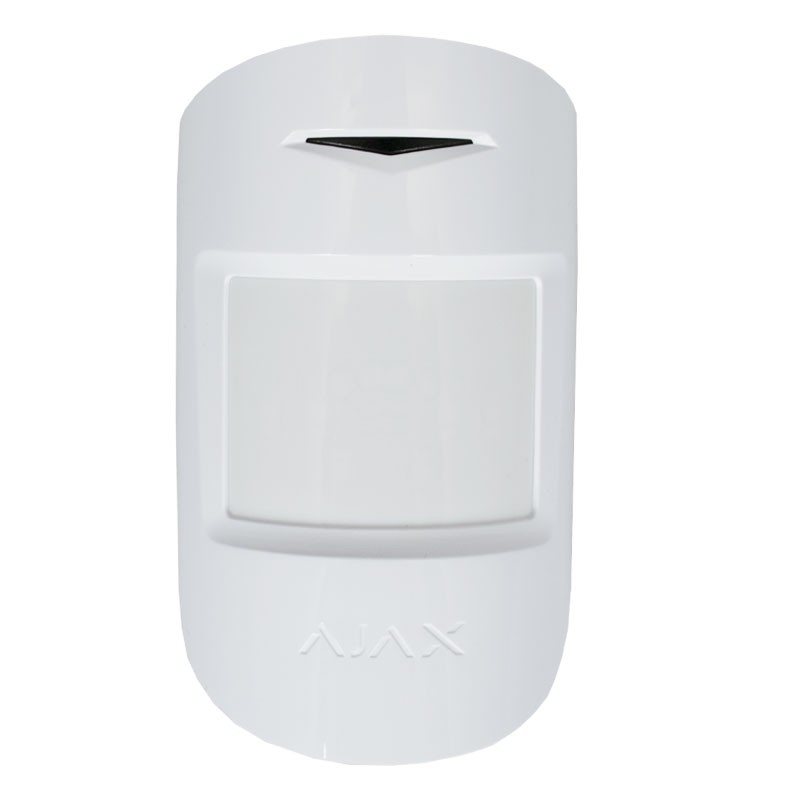

• AJ-MOTIONPROTECT wireless motion detector AJ-MOTIONPROTECT AJAX PIR Pet Immune < 20 Kg, wireless 868 Mhz Jeweller, for indoor, 12 meters maximum motion detection distance.

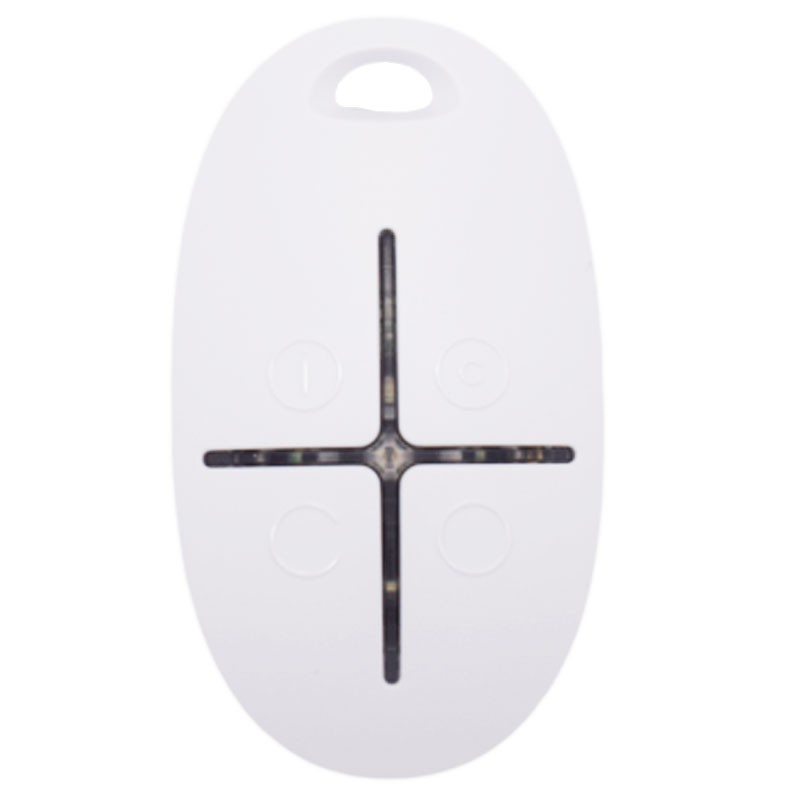

• AJAX AJ-SPACECONTROLW SpaceControl 4-button remote control on/off to control security modes. Features a panic button to send alarms to the inner circle and a security company in case of problems.




Central Unit Specifications:

• White color
• Ethernet and 2G communication
• 1 SIM card
• Up to 50 users
• Up to 100 connectable devices
• Up to 5 scenarios
• Up to 10 cameras or DVRs
• Up to 2000 meters signal range



The two-way supervised connection from detectors and accessories is made by radio frequency following its own protocol, Jeweller, in the 868 MHz band, achieving Grade 2 certification.

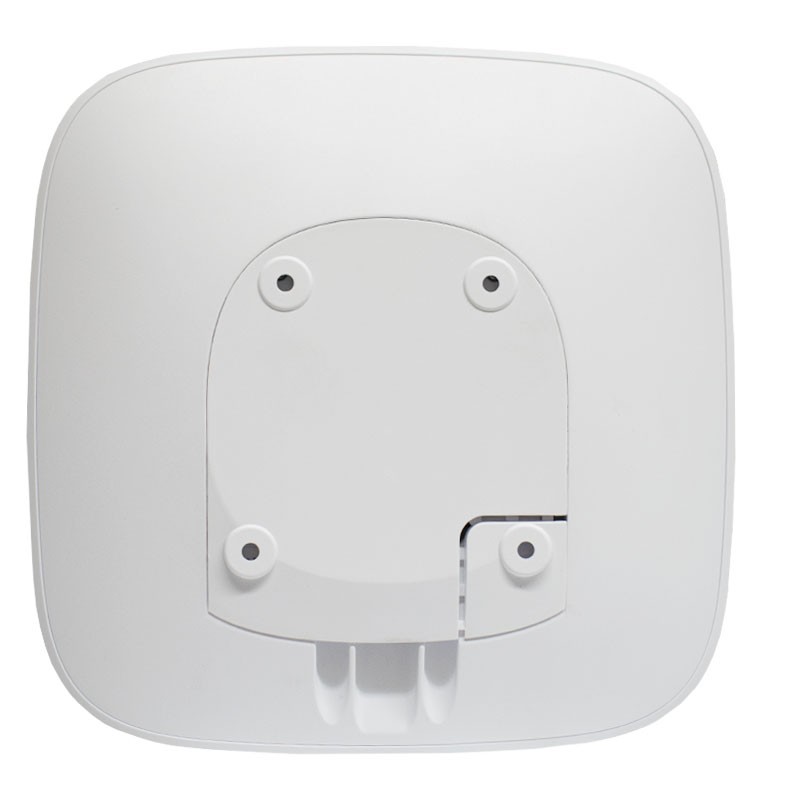

The easy connection has high reliability due to its advanced Jeweller protocol with high-security AES encryption. The unique instantaneous and intelligent monitoring system detects signal inhibition by identifying a certain specific downtime and, in turn reduces maintenance costs as it guarantees to greatly prolong detector battery life without compromising security. The wireless signal is capable of covering distances up to 2 km open spaces. It also includes features to facilitate installation, such as smart bracket (Smart-Bracket) or easy connection of detectors to the alarm system.

It enables up to 100 wireless zones, allowing the possibility of grouping these devices into up to 9 different groups, on which the different actions of arming, partial arming, and disarming can be performed. These Ajax wireless devices have different possible configurations, such as 24-hour zone, or zone with entry or exit delay...

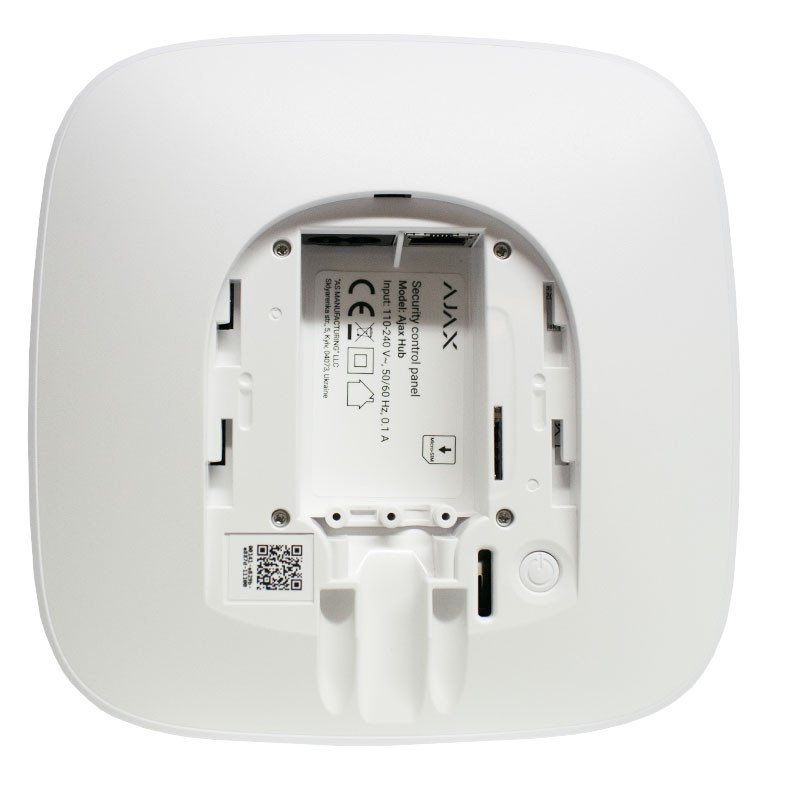

The AJ-HUB-W panel has a 110-250 V AC power input and a rechargeable backup battery with up to 15 hours of life.

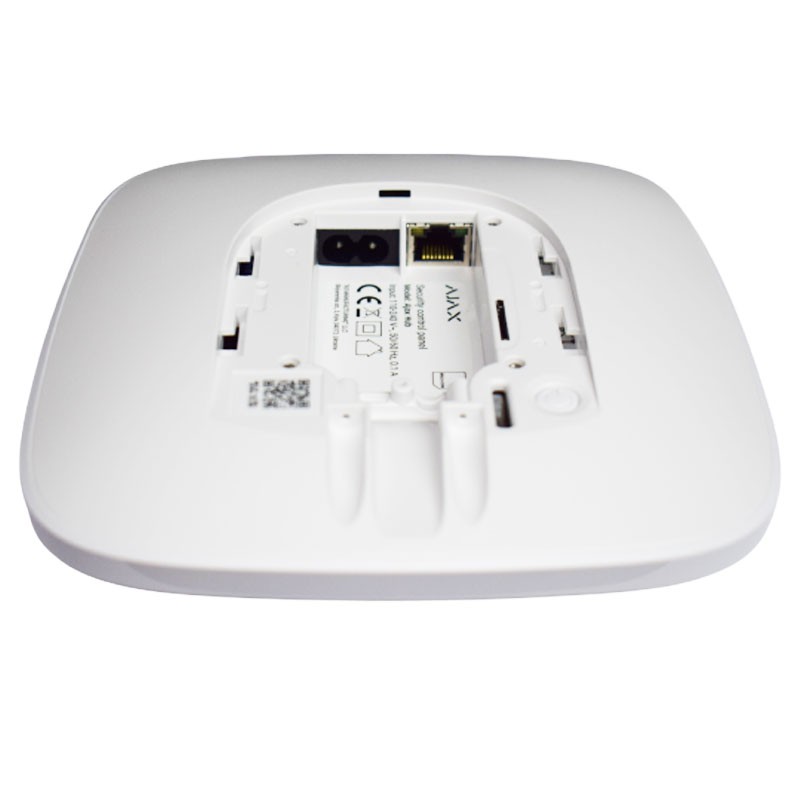

Ethernet communication is the main advantage for remote access, both for the user and the installer, because it allows connection through the AJAX PRO Desktop PC software and the Ajax Security Systems mobile apps for iOS and Android (end user) and AJAX PRO: Tool for Engineers (professionals). Through these apps it is possible to configure the entire system, manage users and their permissions, add devices, group them by environments and change their configurations. Cloud use is compatible with dynamic IP without the need to open ports.

The Ajax user will enjoy multiple benefits, receiving reliable and instant notifications on both desktop software and mobile apps.

As an additional complement to the Ajax alarm system, up to 10 IP cameras or VCR channels can be added via the mobile app to check the live video stream.



Features:

• Classification Radio central unit with GSM and Ethernet modules.
• Devices 100
• Number of users 50
• Rooms 50
• Security groups 9
• Mobile applications iOS 9.1 and later Android 4.1 and later
• Communication channels Ethernet, GSM (850/900/1800/1900 MHz)
• Alarm signal Reception time: 0.15 s Types of notifications: SMS messages, calls, push notifications
• Communication with CRA Contact ID, SIA
• ARM processor
• OS Malevich operating system
• Mains power supply: 110?240 V - Backup battery: Li-Ion 2 ?/h - Runs up to 15 hours in offline mode when Ethernet is not active
• Power consumption 10 Wh
• SIM card supported Micro SIM 2G
• Tamper-resistant systems Anti-counterfeiting protection - Inhibition detection - Tamper-resistant
• Video surveillance Up to 10 cameras or DVR
• Dimensions 163 × 163 × 36 mm
• Weight 350 g
• ReX (repeaters) 1
• Scenarios 5.

Jeweller radio technology

• Communication range with detectors: up to 2000 m in open spaces
• Two-way communication between devices
• Operating frequencies: 868.0 to 868.6 MHz
• Self-adjusting RF output power: up to 25 mW
• Block encryption based on AES algorithm
• Detector polling period: 12?300 s
• Frequency jumps.
