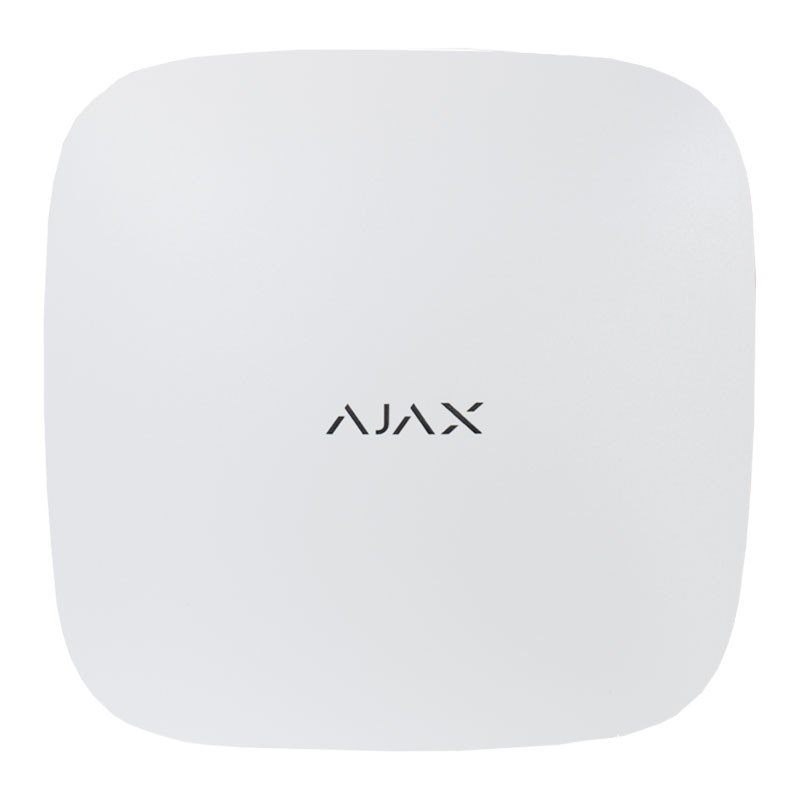

Ajax Control unit HUB2 PLUS 4G 2 SIM WI-FI+LAN HUB2PLUS
08T 38245
4823114015144
Control unit Ajax HUB2 PLUS white color:
- 4G
- 2 SIM CARDS
- WI-FI+LAN Ethernet
- 4 communication channels including high-speed LTE network
- 64 scenarios
- 2000 meters signal distance
- up to 200 users
- up to 200 connected devices
- up to 100 cameras or dvr connected
This configuration allows the device to be connected to two separate Internet providers via Ethernet and Wi-Fi, while having two cellular services ready to back up. Switching from one channel to the other is done easily and in seconds.
Ajax Control unit HUB2 PLUS 4G 2 SIM WI-FI+LAN HUB2PLUS
€366.96
€366.96
Tax included
Tax included
Items Available: 80
: 19
The article is also included in the kit:
Frequently bought together
Hub 2 Plus can manage up to 200 MotionCam detectors and provide photo confirmations of alarms to users and alarm monitoring companies in as little as 9 seconds, even when using SIM cards for communication. Thanks to LTE support.
Hub 2 Plus supports 64 scenarios that minimize human impact on the security of a location. It can automatically turn on and off the entire security system or certain groups as set. In addition, it can instantly activate an intrusion smoke-producing machine, disconnect the power supply and turn on emergency lights in case of fire, or shut off water in case of leakage. Using automation devices, Hub 2 Plus can control lights, electric locks and shutters. Scenarios can be triggered in response to security mode changes, alarm activation, or button commands.
Hub 2 Plus runs on OS Malevich, a real-time operating system developed by Ajax Systems. The OS Malevich operating system is extremely stable, immune to viruses and protected from cyberattacks.
Hub 2 Plus is ready to use. It comes with pre-installed communicators, a power supply and a spare battery. To begin system configuration, you need to plug the device into a power outlet, connect it to the Internet, insert SIM cards and scan the QR code, using the app. Thanks to SmartBracket, you will not even need to disassemble the device to mount it.
All security system settings are always available in the app. Even when you are away from the hub, you can connect security devices or CCTV cameras, add users, test radio signal strength, create security groups and scenarios, or connect a hub to an alarm monitoring company.
Features:
- Classification Security system control panel with four built-in channels for external communication and camera detector support
- Indoor installation
- Connected devices 200
- Video surveillance support 100 DVR cameras
- Users 200
- Rooms 50
- Security groups 25
- ReX connected 5
- Scenarios 64
- App iOS 9.1 and later Android 4.4 and later
- Communication Channels 2 SIM Cards - 2G (GSM900/DCS1800 (B3/B8)) - 3G (WCDMA 850/900/2100 (B1/B5/B8)) - LTE (FDD B1/B3/B5/B7/B8/B20) - Wi-Fi (802.11 b/g/n) - Ethernet
- Alarm signals Delivery time: 0.15 sec - Notification types: SMS, call, push notification
- Instant switching between 2G, 3G, LTE
- Switching between SIM cards 4 minutes
- CRA Connectivity CRA connectivity: Contact ID, SIA - Photo-verification integrated in Manitou, ABsistemDC(NG), WBB, Horus and SBN
- OS Malevich operating system
- Power supply: 110-240 V from mains
- Built-in backup battery: Li-Ion 3 ?-h
- Up to 15 hours of battery life when Ethernet or Wi-Fi channels are disabled
- Power consumption from mains 10 W
- Jeweller radio technology: Detector communication range: up to 2,000 m in open spaces - Two-way communication between devices - Operating frequencies - 868.0?868.6 MHz - Self-adjusting RF output power: up to 25 mW - Block encryption based on AES algorithm - Detector polling period: 12?300 s - Frequency hopping
- Wings radio technology Transmission of visual confirmations - Verification of packet reception
- Operating temperatures From ?10°? to +40°?
- Anti-tampering systems Counterfeit prevention - Jamming notifications - Tamper to detect opening and disassembly from SmartBracket
- Size 163 × 163 × 36 mm
- Weight 351 g.
Components in the package:
- Ajax Hub 2 Plus control panel

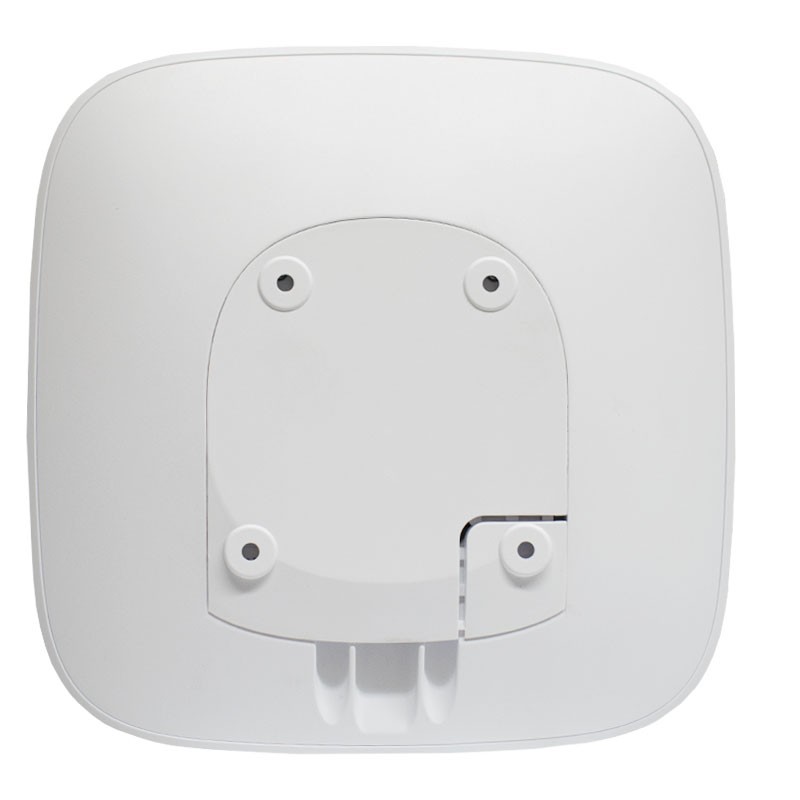

- SmartBracket mounting panel
- Power cable
- Ethernet cable
- Installation kit
installata ottima soluzione wifi, molto semplice la sua configurazione
Facila da installare, manuale utente on line chiaro e preciso
Come da descrizione . Imballo perfetto spedizione puntuale
Ottimo. Costa ma stiamo parlando di un sistema di allarme di grado 2. Lasciate stare le cinesate.
Prodotto valido anche se un po' costoso .
Cumple con mis expectativas. Útil y muy recomendable.
Dopo aver installata l’applicazione di gestione, collegato alla rete e all’alimentazione è stato semplice iniziare la configurazione del sistema.
Conforme alla descrizione, la procedura di installazione è rapida e precisa.
Data sheet
- Type:
- Wireless control panel
- System:
- Wireless
