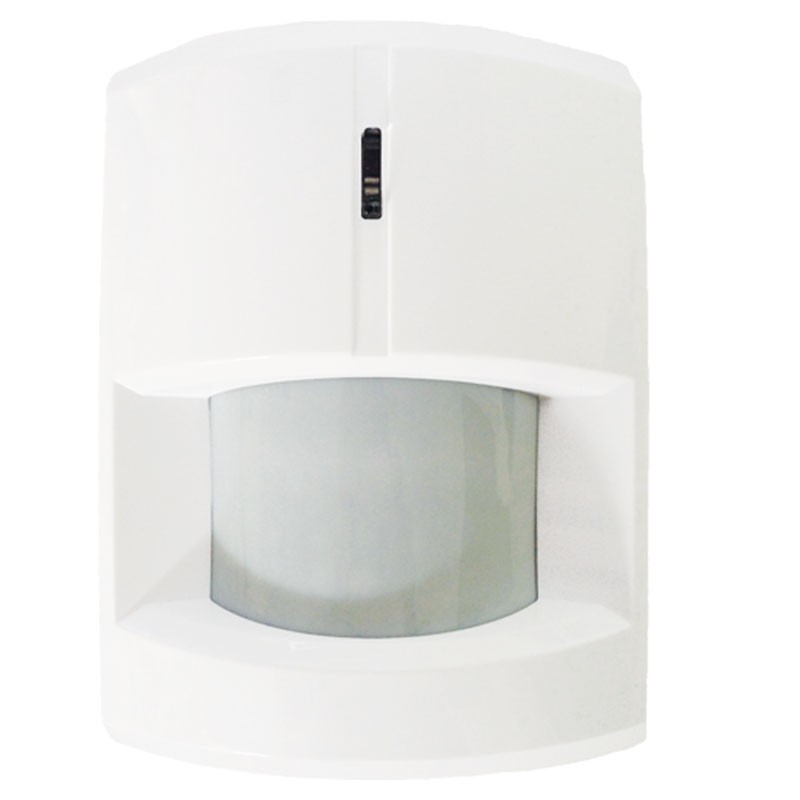

Elkon IR600 indoor infrared detector 80IR2E00113
EKO 80IR2E00113
Elkon IR600 indoor infrared detector, with the following features:
- Power supply: 1 CR123A 3V battery
- Battery life: 5 years (typical value, may vary with use)
- Two-way radio frequency: 868.6375 MHz
- Infrared range: max 12m with 110° angle
- Operating temperature: -10/+45 °C
- Dimensions (W x H x D): 53.2 x 67x 89.2 mm
- Weight: 300 grams
- Performance level: EN50131 Grade 2 Class 2
Compatible with ER600 radio expansion and EGON radio system.
Elkon IR600 indoor infrared detector 80IR2E00113
€73.62
€73.62
Tax included
Tax included
Items Available: 39
: 13
IR600 is a detector with a passive infrared (PIR) motion sensor that can detect movement in an assigned area and report it to the control control unit to trigger an intrusion alarm. The base of the product has provisions for holes that allow installation on a flat surface or in a corner. The detector has a tamper switch that is activated when the cover is opened. It can also send an alert to indicate a communication or low battery problem.
The detector is designed to operate with a detection range of 12 meters, mounted at a height of 2 meters from the ground.
Installation: The detector is designed to be mounted on a flat surface or in a corner using the supplied mounting screws and dowels. There are provisions for holes on the base, where the plastic is thinner and can be broken for the purpose of mounting. Two hole arrangements are for surface mounting, while four hole arrangements are for corner mounting.
Data sheet
- Type: Detectors
