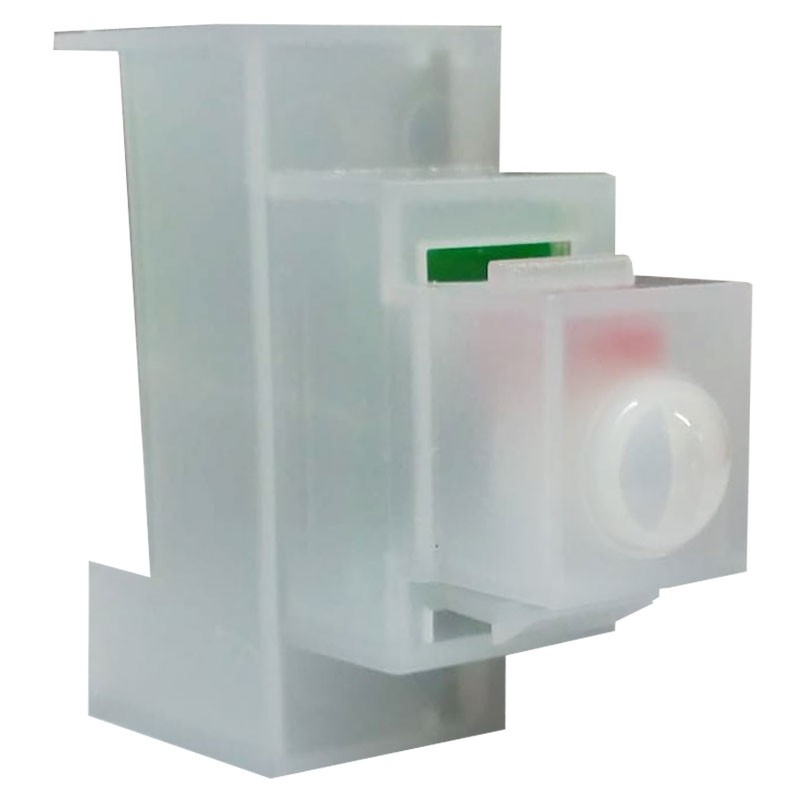

Hiltron passive recessed infrared detector white IRINJ45

Cia Hiltron
C1A IRINJ45 8056450412209

Hiltron passive infrared detector, with the following features:

  • Rated supply voltage 12Vdc +- 10%.
  • Maximum absorption 5mA
  • Recessed with keystone attack
  • Dual element digital sensor (Digipyro™)
  • Local signaling of alarm memory
  • High immunity to RF 30Vm
Do you have questions about this product or did you not find what you were looking for? Ask us!

Hiltron passive recessed infrared detector white IRINJ45

€28.37
€28.37

Hiltron passive recessed infrared detector white IRINJ45

€28.37
Tax included
Items Available: 51
Further availability of the manufacturer

Hiltron passive recessed infrared detector white IRINJ45

€28.37

Buy it within and receive it from Monday, 11 November
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

It can be installed inside any recessed fixture end cap with RJ45 connection.


Features:

  • Hiltron Series
  • Lens beams 3 (horizontal)
  • Coverage angle H: 85°; V: 60°
  • Coverage max 5 meters
  • Signaling LED
  • Solid state relay output NC 100mA, 50Vdc max
  • Initial stabilization time 30"
  • Operating temperature +5°C - 40°C
  • Safety grade: 1
  • Environmental class: 2
  • Dimensions (WxHxD): 19x33x47 mm
  • Conforms to CEI EN 50131-1 standard

There are no reviews

Data sheet

Type:
Detectors
