Technical specifications of individual components:

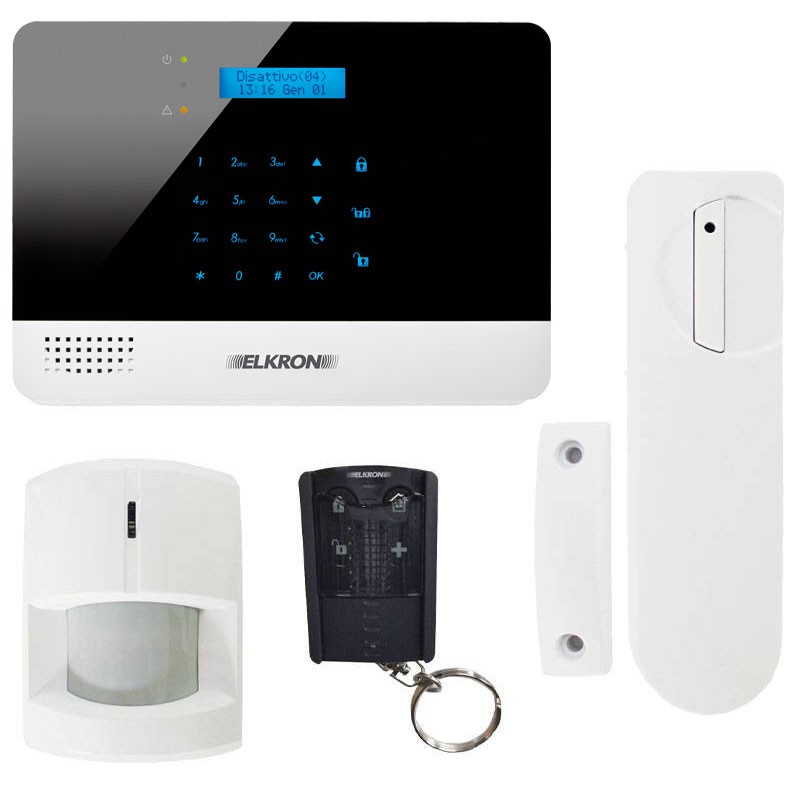

1 piece CR600 Plus IP/3G control unit with integrated soft touch keypad, 2 km radio range in free air, 50 RF or ZigBee devices (code 80WL5900113). The CR600 version is joined by a new control panel model with integrated softouch keypad. Notable features include 3G carrier equipment, backing up to the LAN and sending voice messages for alarm. In addition to wireless devices for managing burglar alarm functions, the Egon system integrates a new range for managing additional Home Automation features: thanks to these devices, it is possible to control shutters, regulate temperature, control electrical loads and display their consumption, as well as manage generic actuations for 230VAC and 12/24VDC equipment. All from a single app.



• Power supply: 230VAC /12V 1A Internal power supply + rechargeable battery 7.2V Ni-Mh, 1300 mAh
• Autonomy: 15 hours (averages dependent on usage conditions)
• Transmission carriers: LAN + 3G in automatic backup
• Radio communication type: RF 868 MHZ + ZIGBEE = 1.2 HA AT 2.4GHZ both bidirectional
• Radio range: RF = 2 km Zigbee = over 200 m (both in free air)
• Built-in microphone/speaker
• Built-in 95dB siren at 1m
• On-board soft touch keyboard
• Max number of devices: 50
• Max number of detectors with camera: 6
• Inputs on board central unit: 1- external tamper
• Outputs on board central unit: 2 - provide 12Vdc in alarm
• Partialization: 3 sectors + total
• Max number of users: 20
• Max number of historical events: 200 app events, 250 local events
• Functionality: intrusion, fire, video verification/video verification, home automation
• Video verification: with indoor and outdoor camera detectors
• Video verification: with indoor and outdoor camera detectors
• Video real time control: maximum 4 Wi-Fi IP cameras
• Local user control: Remote control/Built-in keypad/keyboard
• Remote user control: Elkron EGON APP (iOS and Android) EGON web portal
• Installer remote control: Elkron EGON PROFESSIONAL APP (iOS and Android) EGON PROFESSIONAL web portal
• Programming: local keypad
• Supervision: yes
• Jamming control: yes
• EN50131 Grade 2 Class II
• Dimensions: (H x W x D) 260 x 176 x 30 mm




Alarm sending type:

• VOICE call
• DTMF CID over GSM
• CID/ SIA over TCP/IP, over Ethernet or GPRS
• SMS over GSM
• Video and images over Email/FTP over IP/4G
• Push notifications




1 piece RC600 remote control 4 keys ON /OFF total/1 partial programmable / panic alarm, Sliding door key protection LED transmission and reception indication Batteries supplied Low battery warning (code 80TX4400113)



• Keys (ON / OFF total / 1 partial / panic alarm)
• Sliding door key protection LED indication of transmission and reception
• Low battery indication
• Power supply: 1 CR2032 3V lithium battery
• Battery life: 6 years (typical value, may vary with use)
• Two-way radio frequency: 868.6375 MHz
• Operating temperature: -10/+45°C
• Dimensions: 50 x 33 x 14.5mm
• Weight: 60 grams
• Complies with EN 50131 Grade 2 Class 2



1-piece IR600 indoor infrared detector, High-speed signal transmission Two selectable sensitivity levels White light protection Detection range of 12 meters over an angle of 110° Generates supervisory signals at regular intervals to check device operation Built-in LED feedback and test button Protection from insect access Automatic temperature compensation sensor Long-life lithium battery included (part number 80IR2E00113)



• Power supply: 1 CR123A 3V battery
• Battery life: 5 years (typical value, may vary based on use)
• Two-way radio frequency: 868.6375 MHz
• Infrared range: max 12m with 110° angle
• Operating temperature: -10/+45 °C
• Dimensions (W x H x D): 53.2 x 67x 89.2 mm
• Weight: 300 grams
• Performance level: EN50131 Grade 2 Class 2
• Compatible with ER600 radio expansion and EGON radio system




IR600 is a detector with a passive infrared (PIR) motion sensor that can detect movement in an assigned area and report it to the control control unit to trigger an intrusion alarm. The base of the product has provisions for holes that allow it to be installed on a flat surface or in a corner. The detector has a tamper switch that is activated when the cover is opened. It can also send an alert to indicate a communication or low battery problem. The detector is designed to operate with a detection range of 12 meters, mounted at a height of 2 meters from the ground.



Installation: The detector is designed to be mounted on a flat surface or in a corner using the supplied mounting screws and dowels. There are provisions for holes on the base, where the plastic is thinner and can be broken for the purpose of mounting. Two hole arrangements are for surface mounting, while four hole arrangements are for corner mounting.



1 piece magnetic contact DC600 High-speed signal transmission Installs on the frame of doors and windows Generates supervisory signals at regular intervals to check the operation of the device High-intensity magnet Integrated LED feedback Long-life lithium battery included (part number 80MM1E00113)



• Power supply: 1 lithium battery 3V type CR2
• Battery life: 2 years (typical value, may vary based on use)
• Two-way radio frequency: 868.6375 MHz
• Operating temperature: -10 °C to +45 °C
• Dimensions (H x W x D): 85 x 25 x 20 mm
• Weight: 100 grams
• Performance level: EN50131 Grade 2 Class 2
