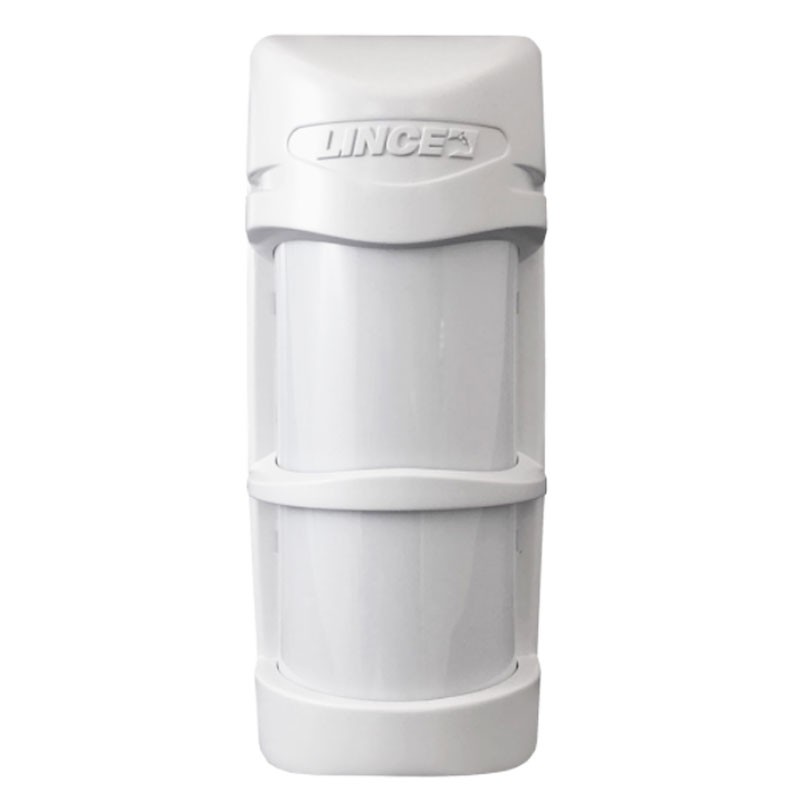

Lince BOBBY detector for outdoor triple technology 15MT 1873
LIN 1873
9000004995174
Outdoor volutmetric detector Lince 1873 BOBBY-AM, with the following features:
- Detection: 2 PIR + microwave with frequency 24 GHz
- Power supply: 9 ÷ 15 Vdc
- Absorption: 20 mA
- LED: 4 (green PIR 1, green PIR 2, yellow MW, red alarm)
- Sensitivity: adjustable and independent for each technology
- Angle of coverage: 85 °
- Detection range: adjustable: 3 ÷ 18 m
- Bottom PIR adjustment: micrometric through patented device
- Antimask output: dedicated NC contact
- Antimask function: via active infrared
- AND / OR function: DIP selectable - triple AND / triple OR / (PIR1 OR PIR2) AND MW / PIR1 AND PIR2 (MW excluded)
Lince BOBBY detector for outdoor triple technology 15MT 1873
€116.84
€116.84
Tax included
Tax included
Items Available: 63
The outdoor detector 1873 BOBBY-AM, consisting of 2 dual PIR infrared sensors and a microwave with planar cavity, has been designed and built to ensure maximum performance in outdoor environment. The electronics of the detector is adjustable and allows to obtain a horizontal coverage of 85° distributed on a plane of 170°. The fixing of the detector can be both wall and pole (height 1 ÷ 1.2 m). The lower infrared beam, also vertically adjustable, allows to obtain a range of coverage between a minimum of 3 m and a maximum of 18 m. The three sensors, managed by a microcontroller, can be combined with each other according to the installation requirements (triple AND, MW in AND with each PIR, AND of the PIRs with MW excluded, triple OR). For the management of the outputs, alarm and anti-mask, two solid state relays are used. The anti-masking has been realized using active IR sensors that, through Fresnel lenses, have the ability to detect obstacles placed voluntarily on the lenses to prevent detection (spray, tape, paper, etc.). If set in triple AND allows the discrimination of animals (PET IMMUNITY).
Other features:
- Anti-solar blindness: through high efficiency mechanical filters
- Electronic board: adjustable on 90° and tropicalized
- Housing: polycarbonate with UV resistant lens
- Wall mounting bracket: stainless steel (supplied)
- Anti-sabotage protection: against opening and tearing
- Security grade: Grade 3 (EN 50131)
- Environmental class: IV (EN 50131-1)
- Operating temperature: -25°C ÷ + 60°C
- Enclosure degree of protection: IP44
- Dimensions: 81 x 76 x 189 mm
- Weight: 0.47 kg (bracket included)
