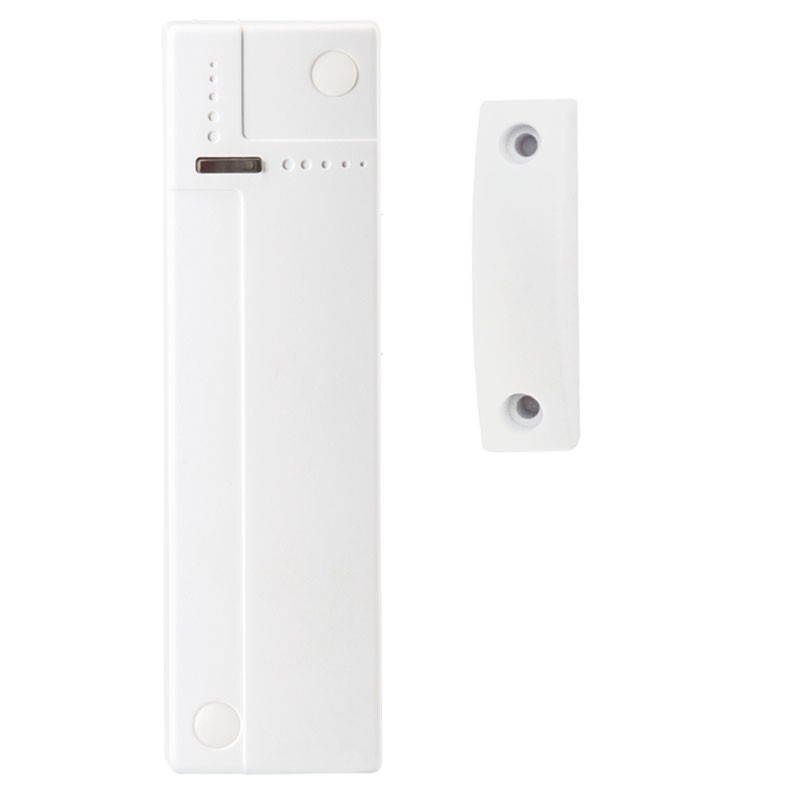

Magnetic contact with 2 inputs Elkron DC6002I 80MM1G00113
EKO 80MM1G00113
8034034445744
Micro magnetic contact with wired input Elkron DC6002I, with the following features:
- Power supply: 1 lithium battery 3V type CR2
- Battery life: 5 years (typical value, may vary with use)
- 2 programmable auxiliary inputs
- Two-way radio frequency: 868.6375 MHz
- Operating temperature: -10 °C to +45 °C
- Dimensions (H x W x D): 107 x 32 x 22 mm
- Weight: 100 grams
- Performance level: EN50131 Grade 2, Class 2
- White color
Compatible with ER600 radio expansion and EGON radio system.
Magnetic contact with 2 inputs Elkron DC6002I 80MM1G00113
€58.80
€58.80
Tax included
Tax included
Items Available: 31
: 5
The DC6002I wired input magnetic contact controls the opening/closing of specific devices (such as a door or window).
The contacts are fixed on the door or window frame, while the actuation magnets are to be fixed on the door or window itself. When the door or window is opened, the magnet moves away from the contact, triggering the internal magnetic switch and triggering the transmission of an alarm signal to the control unit. The device also has the ability to send information regarding anomalies and low battery warning. The contact consists of a cover and a base. The cover contains all the electronic components, while the base is used to install the device. An internal tamper switch provides protection against unauthorized attempts to open or remove the device.
Installation: The contact should be placed on the door frame, while the magnet should be placed on the door. If the contact is placed on the door and the door is opened too quickly, the transmission distance may be reduced. With the door closed, the magnet should not be more than 15 mm from the contact.
Ottimo prodotto nessun falso allarme e molto utile la possibilità di collegare dei sensori filari
Data sheet
- Type:
- Contacts
- System:
- With Wires
- Installation:
- Shutters
