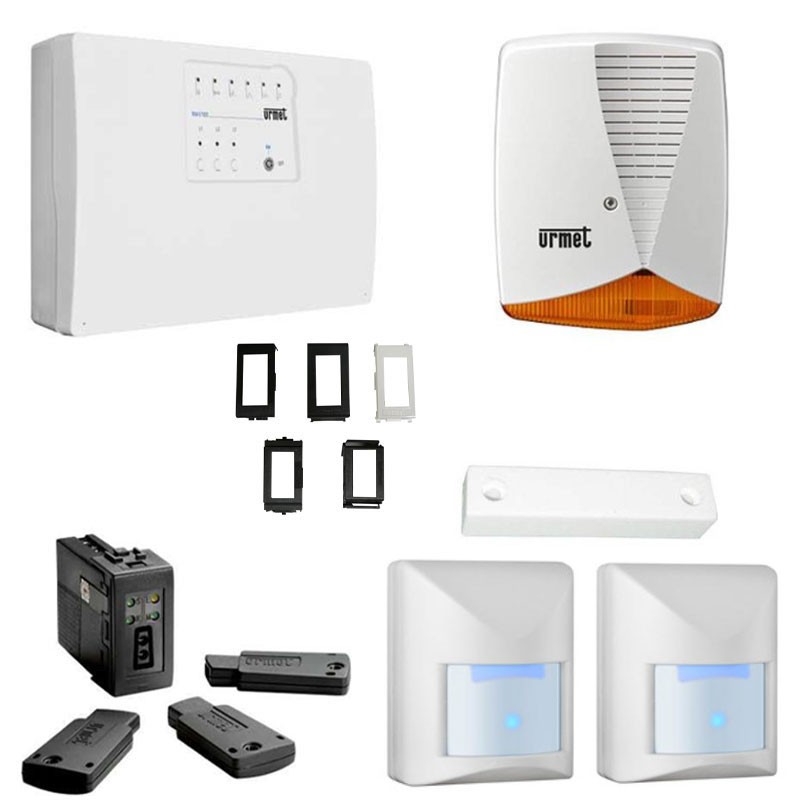

Features of the individual Kit components:

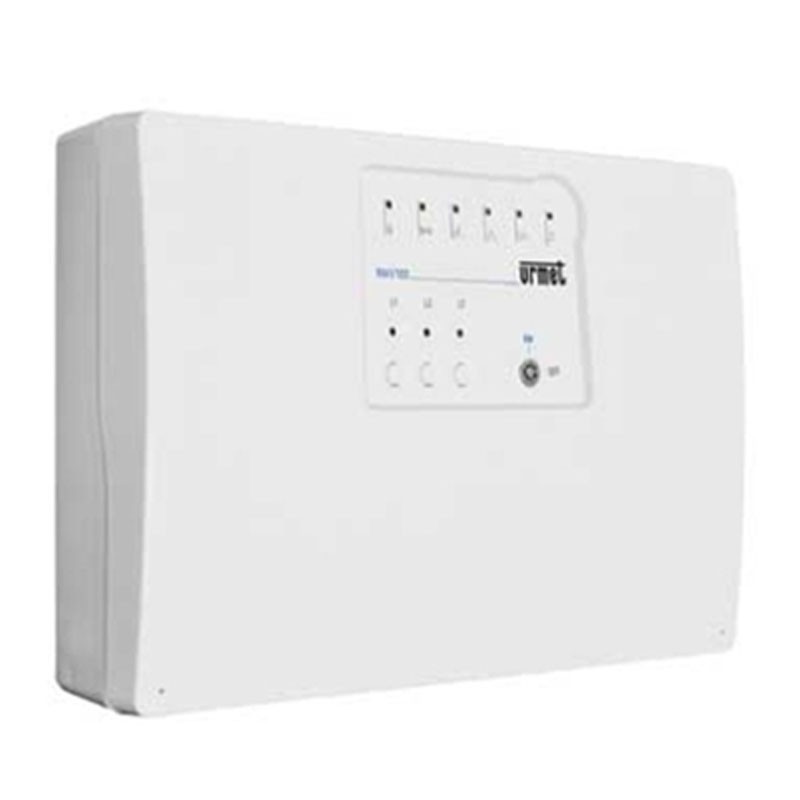

• 1 contral unit with 3 lines/zones (article code 1061/103): It manages, via a microprocessor, the entire system. A compact, simple and intuitive burglar alarm control unit, suitable for small residential applications.

CHARACTERISTICS:

• 220-240 V~, 50/60 Hz power supply with 12V back-up battery
• Normally closed inputs
• Up to 8 control devices, freely chosen from key or transponder inserters (max 4) and keypads (max 4)
• 1 24H input (always active).
• Up to 10 keys
• Up to 10 freely programmable codes (4 to 6 digits).
• Free association of inputs to zones.
• Freely selectable input and output times.
• 1 delayed input
• LED on the front panel of the control unit to display status/events.
• Possibility to exclude each individual input via dedicated buttons on the front panel of the control unit.
• Automatic exclusion of input after 8 consecutive alarms.
• Automatic exclusion of open input upon activation (function selectable via dipswitch)
• Anti-sabotage tamper: 24V - 1A
• Max. serial line length (+ - LA LB): 500m
• Max. switching current Output (relay): 1A resistive
• Max. switching voltage Output (relay): 30V
• Maximum cable cross-section: 1.5 mm2
• Manufacturer's declared operating temperature: -5 ÷ +45°C
• Certified operating temperature: +5 ÷ +40°C
• Operating environment: indoor
• Enclosure degree of protection: IP30 / IK02
• Max. dimensions (h x w x d): 240 x 340 x 85mm
• Weight (without battery): 1.450 kg
• Bottom and lid: ABS, white

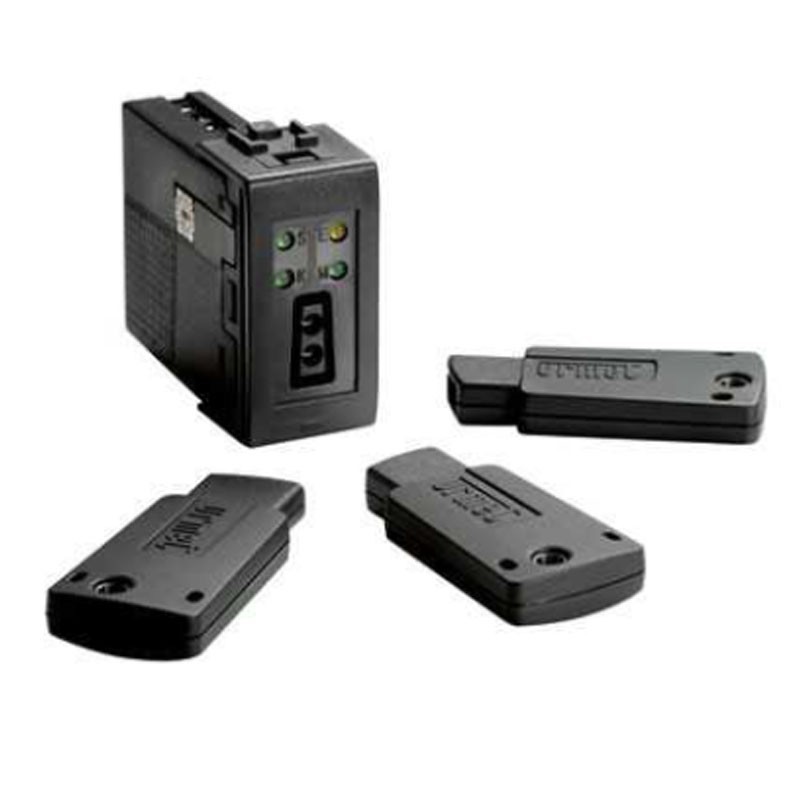

High security key kit (article code 1061/334): It consists of 1 inserter compatible with the Urmet Nea series and 3 electronic keys. The inserter allows the system to be activated and deactivated, even partially, by means of an electronic key and is connected to the control unit via the 4-wire bus.

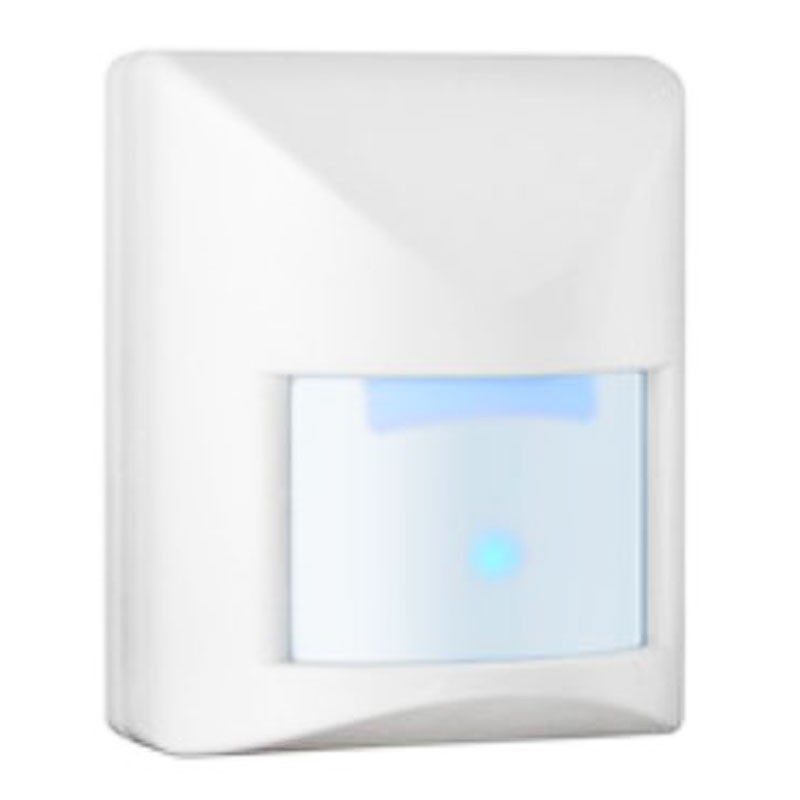

2 Passive infrared detectors with joint (article code 1033/011) plus 1 magnetic contact (article code 1033/702): The compact dimensions and exclusive design make it suitable for all applications in the residential sector. Its operating principle is based on the variation of heat emitted by the human body. EN50131 grade 2. Install the sensor on rigid, vibration-free surfaces at a height of between 2 and 2.3 metres, referring to the detection diagrams. Avoid placing the sensor near heat sources or in direct sunlight. Avoid the existence of blind zones in the protected area within which the intruder can move due to furniture, shelving, etc. Do not install the sensor outdoors. In the case of installations at heights above 2.2 metres, we recommend the use of the optional joint, tilting the sensor so as to best adapt the coverage ranges to actual needs.

DETECTOR CHARACTERISTICS

• Power supply: 12Vdc
• Max. absorption: 10 mA
• Max. range: 15 metres
• Coverage angle: 90°.
• Fresnel lens 18 beams on 4 planes + low proximity beam
• Tamper-proof tamper
• Joint for wall or ceiling mounting (optional code 1033/119)
• Weight: 65 grams
• Dimensions (W x H x D): 75 x 60 x 45 mm

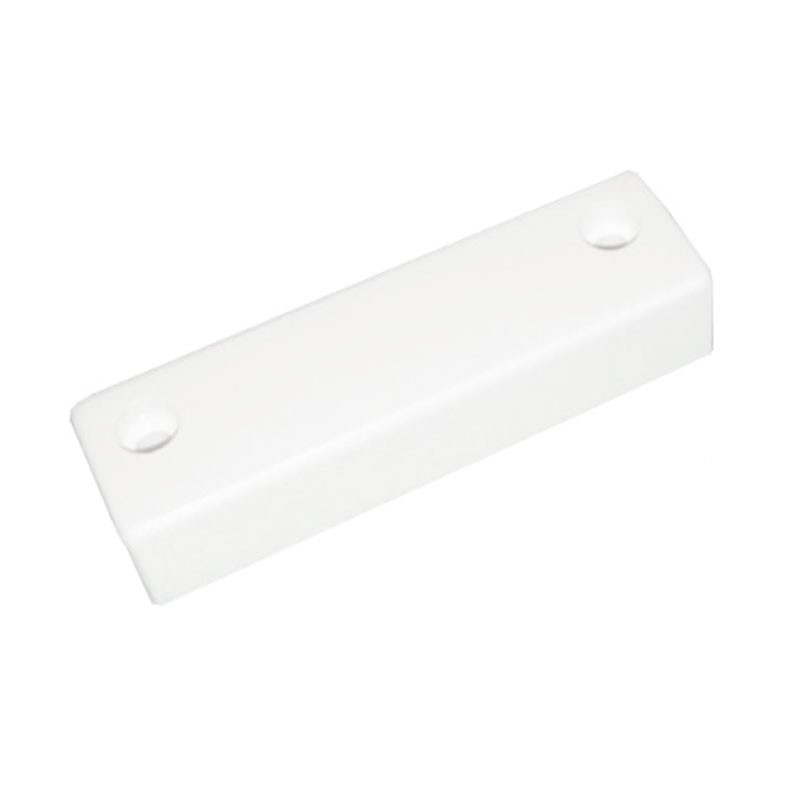

MAGNETIC CONTACT CHARACTERISTICS:

• For universal use
• White thermoplastic material
• Visible mounting
• Visible mounting for indoor use
• Possibility 3 connections inside
• Suitable for wooden doors
• Dimensions: 40 (W) x 13 (H) x 17 (D) mm

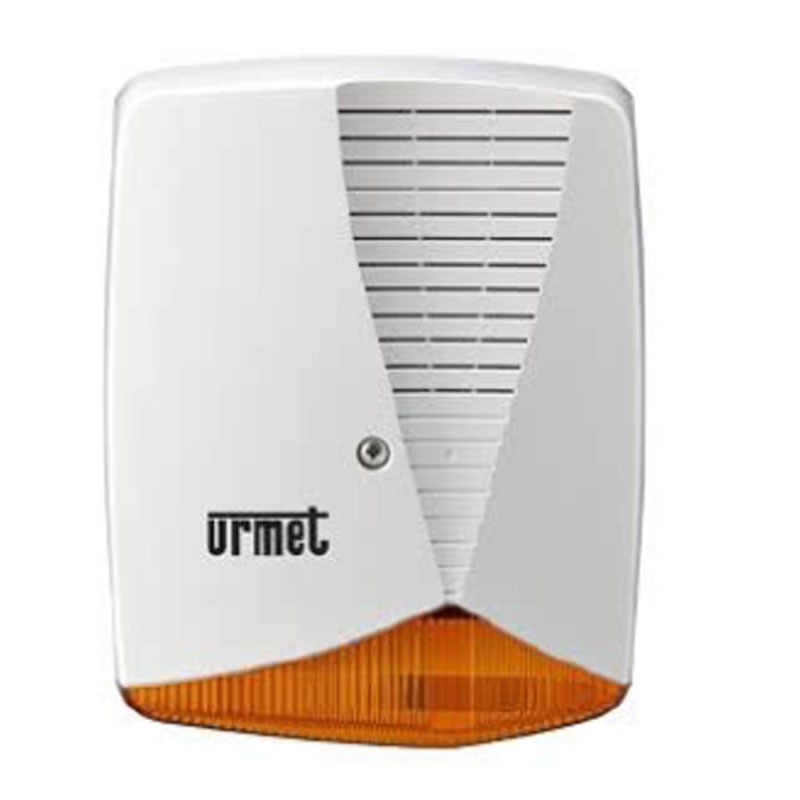

1 self-powered outdoor siren (article code 1033/415):

• External cover in polycarbonate with high mechanical resistance
• Internal metal protection cage;
• Control managed by microprocessor;
• SA block input referred to positive;
• RM memory reset input with reference to positive or negative;
• Possibility of programming the ringing time in case of permanent absence of the blocking signal;
• Counting of the ringing: max 9 within 24 hours or within one activation (RM transition);
• Alarm storage if the control unit has an RM output (by flashing);
• Function "system status report": a lack of signal RM provided by the central causes a continuous flashing of the flash;
• Protection against battery polarity inversion (luminous signal) and power supply from control unit;
• Anti-opening and anti-removal protection;
• Initial blocking function: at the first power supply the device does not sound but the flashing of the flash will be activated; to prepare the siren for operation it is necessary to correctly supply the SA and RM signals from the control unit;
• In case of absence of the blocking signal after the programmed time (see "Programming the duration of sounding") the siren stops and will generate a new alarm cycle only with a subsequent absence of the blocking signal;
• Acoustic pressure at 3 meters 101 dB(A);
• Internal low-battery check that blocks the flash in the event of an alarm, giving priority to the siren.
• Rated supply voltage: 13.8V
• Minimum / maximum operating voltage: 10.5 V to 15 V
• Blocking voltage NC inputs to positive: 5.5 V- to rated voltage
• Absorption at rest: 15 mA Max. absorption in alarm: 1.2 A
• Incandescent lamp: 12V - 10W
• Degree of protection IP44
• Degree of mechanical resistance IK06
• Fundamental frequency 1480 Hz
• Operating frequency: min/max1400 ÷ 1600 Hz
• Acoustic pressure: 101 dB(A) at 3 m
• Allocatable battery: 12V 1.9 Ah; 12 V 2.2 Ah
• Tamper Tamper:1A @ 24 V
• Operating temperature: - 25°C ÷ + 70°C
• Low battery threshold voltage: ≤ 10,8 V
• Dimensions in mm: 254 x 314 x 108 (l x h x p)

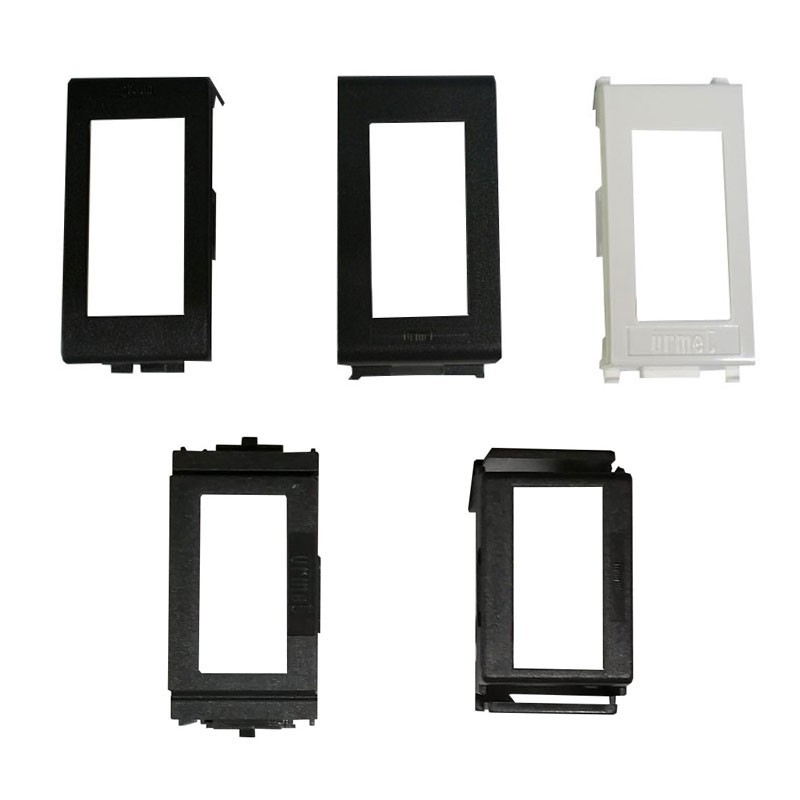

1 adapter kit for 1056, 1061, 1063 and 1067 series inserters (article code 1056/337): The kit allows adapting the inserters/readers to the most common civil series. The kit consists of: 1 adapter Living International, 1 adapter B-Ticino Living, 1 adapter Vimar Plana, 1 adapter Vimar Idea, 1 adapter Gewiss Playbus.
