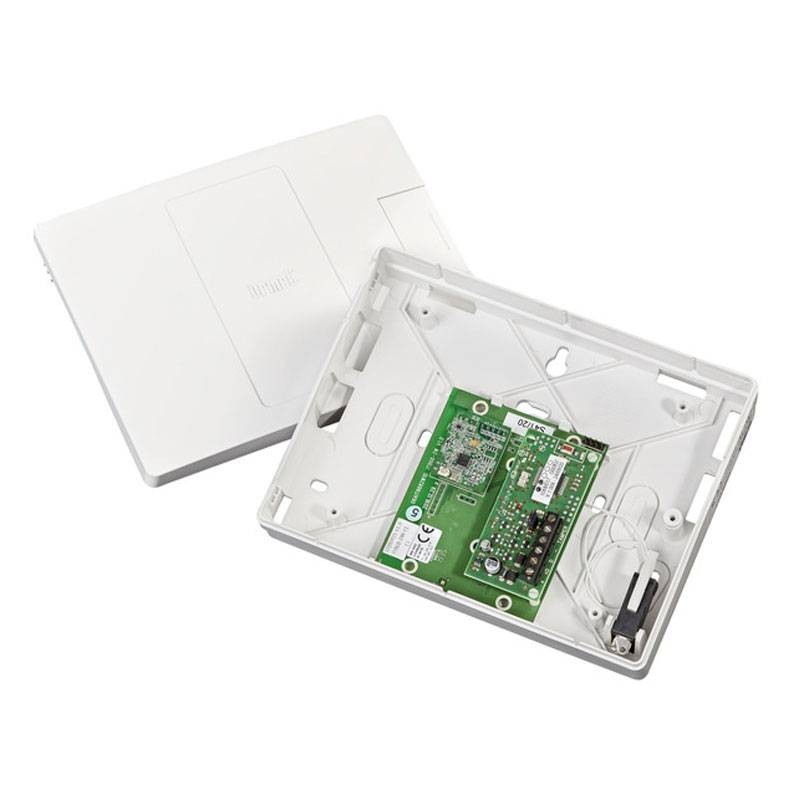

Urmet wireless interface for 1068 control panels 35 mA communication bus 1068/017


UTD 1068/017 8021156070336

Interface for wireless expansion of Urmet 1068 intrusion detection systems, compatible with 1051 series devices. It manages detectors, sirens, remote controls and keypads in wireless mode, providing flexibility and security, with the following features:

  • Wireless expansion: Supports up to 28 detectors, 4 sirens, 8 remote controls and 4 keypads

  • Reliable radio communication: 868MHz frequency with range up to 2km in free air

  • Direct power supply: Operation via 1068 control panel bus line

  • Low consumption: Current consumption of only 35mA

  • Advanced protection: Container with tamper protection and IP40 rating

  • Wide operating range: Operates in a temperature range of -5 +40 degrees

Do you have questions about this product or did you not find what you were looking for? Ask us!
Urmet wireless interface for 1068 control panels 35 mA communication bus 1068/017
€95.36
€95.36

€95.36
Tax included

€95.36

Buy it within and receive it from Thursday, 20 March
Two-year warranty
Easy return within 14 days

Urmet wireless interface for 1068 control panels 35 mA communication bus

The interface allows 1051 series devices to be integrated into 1068 intrusion detection systems, making the system more versatile and customizable. Volumetric sensors, magnetic contacts, sirens, remote controls and keypads can be connected for centralized and efficient management.

Reliable communication via bus

The module connects directly to the communication bus of the central unit, ensuring stable and secure transmission. Power is supplied through the same bus line, simplifying installation and reducing configuration costs.

Excellent radio performance

With an 868MHz radio frequency and a range of up to 2km in free air, the module ensures a stable connection even in environments with obstacles or large distances.

Robustness and protection

The module's enclosure is tamper-proof and IP40 certified, ensuring a long service life and durability suitable for indoor environments.

Ease of use and configuration

The module is designed for intuitive installation, enabling rapid system expansion without the need for complex wiring.

Specifications:

  • Maximum number of devices managed: 28 detectors (volumetric sensors and magnetic contacts) 4 sirens - 8 remote controls - 4 keypads

  • Radio frequency: 868MHz

  • Radio range: up to 2km in free air

  • Current consumption: 35mA

  • Power supply: Via central unit bus line

  • Degree of protection: IP40

  • Dimensions: 180x139x45 mm (WxHxD)
