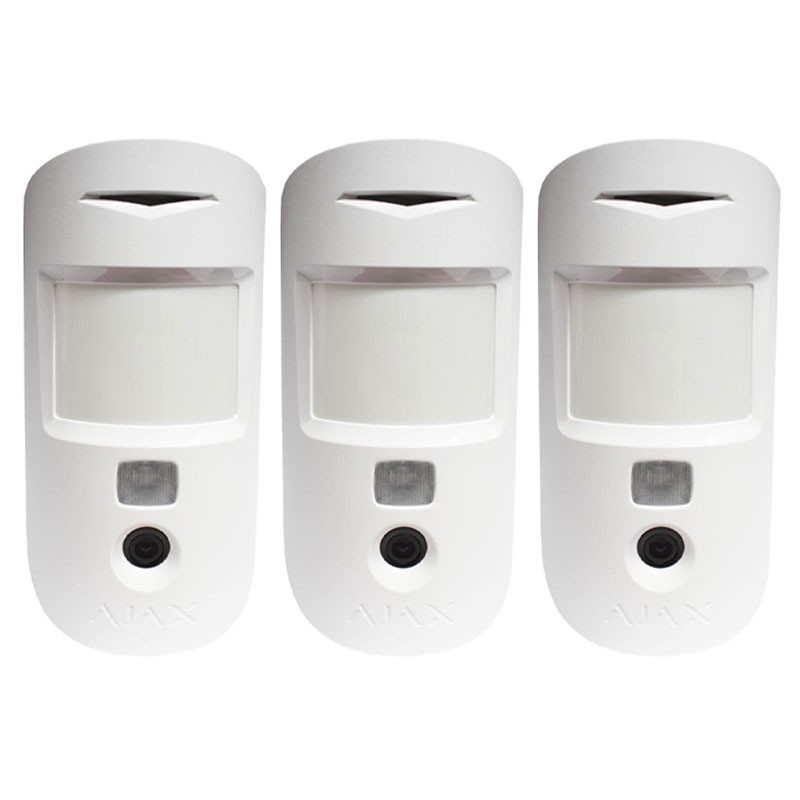

Ajax MotionCam PhOD 3 Motion Detectors Kit White
KIT 39290
Ajax MotionCam PhOD White 3 Motion Detector Kit is a wireless motion detector with built-in camera designed to provide advanced indoor security. In addition to motion detection, it automatically takes photos in the event of an alarm, providing immediate visual evidence to users and security agencies. With SmartDetect for false alarm prevention and pet immunity, it is the perfect solution for reliable and stress-free monitoring:
-
PIR sensor with detection up to 12 meters
-
88.5° detection angle for wide coverage
-
Built-in camera with automatic photo sending in case of alarm
-
Photo on demand to check the situation at any time
-
SmartDetect to reduce false alarms
-
Pet immunity up to 20 kg and 50 cm in height
-
Compatibility with Ajax hubs running OS Malevich firmware 2.19 or later.
This motion detector in addition to sending photo verification on alarm has the functions of:
-
Photo on demand: The user takes a photo at any time or when the detector is engaged
-
Photo by scenario: The detector camera takes photos automatically when Ajax fire detectors are engaged.
-
Photos by schedule: The detector automatically takes photos at a specific time. This feature is available for hubs with OS Malevich firmware version 2.19 or later
With the kit you save compared to individually purchased items
€412.60
Frequently bought together
Ajax MotionCam PhOD Motion Detector White
MotionCam (PhOD) Jeweller has a built-in camera that takes pictures once the detector is triggered. It takes 9 seconds to show the incident in the facility. With visual evidence available in Ajax apps, the security firm can quickly verify if the threat is real and respond accordingly. With photo-verification, users can avoid unnecessary worries and security institutions can avoid false patrol calls. Users can take a photo on demand with a single tap to monitor the status of the house at any time. The detector can also automatically take photos if another device in the system is alarmed and according to a specific schedule.
It is recommended that the device be installed at a height of 2.4 m. The device is designed for indoor use only.
Real-Time Visual Monitoring
The Ajax MotionCam PhOD revolutionizes home security with its built-in camera, which automatically activates upon detecting motion. In as little as 9 seconds, users and security agencies receive clear images of the situation, allowing them to verify whether the alarm is real or a false positive.
Photos on Demand and Automatic Programming
In addition to taking photos in the event of an alarm, the MotionCam PhOD allows users to request images at any time with a simple tap on the Ajax app. In addition, automatic scheduling can be set up to receive periodic shots, which is useful for monitoring specific environments.
Intelligent Detection with SmartDetect
The SmartDetect system dramatically reduces false alarms by distinguishing real movement from environmental interference. Thanks to this advanced technology, the alarm is activated only when it is really needed.
Pet Immunity
MotionCam PhOD is designed not to detect pets up to 20 kg and 50 cm in height, avoiding unnecessary notifications for passing dogs or cats.
Easy Installation and Wireless Connection
The device connects wirelessly to the Ajax system, ensuring quick and easy installation with no wiring required. Ideal for homes, offices and commercial premises.
Preinstalled Batteries
MotionCam (PhOD) Jeweller comes with preinstalled batteries with a remarkable 5-year life span. Ajax apps proactively notify both the security institution and users of a low battery level a couple of months in advance. The batteries are replaceable, and the installer can simply replace them after five years. Thanks to the batteries, MotionCam (PhOD) Jeweller operates independently of the local power grid:Up to 5 years of operation with preinstalled batteries - Low battery warning - Replaceable CR123A batteries
Compatibility with Ajax Control Units
| Ajax Central | Compatibility |
|---|---|
| Hub 2 (2G) Jeweller | Compatible |
| Hub 2 (4G) Jeweller | Compatible |
| Hub 2 Plus Jeweller | Compatible |
| Hub BP Jeweller | Compatible |
| Hub Hybrid (2G) | Compatible |
| Hub Hybrid (4G) | Compatible |
| ReX 2 Jeweller | Compatible |
Jeweller and Wings communication
| Features | Jeweller | Wings |
|---|---|---|
| Technology | Proprietary wireless communication technology for transmitting alarms and events. | Proprietary radio communication technology to transmit photo-verification of alarms. |
| Communication | Two-way | Two-way |
| Protection | Advanced anti-sabotage system | Advanced anti-sabotage system |
| Encryption | Moveable key block encryption | Moveable key block encryption |
| Notifications | Instant notifications | Photo delivery control |
| Configuration | Remote configuration from Ajax apps | Reloading of data packets in case of transmission errors |
| Operating frequencies | 866.0-866.5 MHz 868.0-868.6 MHz 868.7-869.2 MHz 905.0-926.5 MHz 915.85-926.5 MHz 921.0-922.0 MHz (Based on sales region) |
|
| Maximum radiated power (ERP) | Up to 20 mW | Up to 20 mW |
| Radio signal modulation | GFSK | GFSK |
| Communication range | Up to 1700 m (Between the detector and the central unit or repeater in an open field) | Up to 1700 m (Between the detector and the central unit or repeater in an open field) |
| Frequency hopping | Uses frequency hopping to prevent eavesdropping and interference | Uses frequency hopping to prevent eavesdropping and interference |
Detection
| Feature | Description |
|---|---|
| Sensor type | 1 × PIR sensor |
| Sensing distance | Up to 12 m (when installed at a height of 2.4 m) |
| Detection angle | Horizontal: 88.5° |
| Sensing speed | 0.3 to 2.0 m/s |
| Positioning | The detector lens must be perpendicular to the entrance path |
| Sensitivity | 3 levels (adjustable by a PRO or a user with administrator rights in the Ajax app) |
| Pet immunity | Weight: up to 20 kg, Height: up to 50 cm |
| False alarm prevention | SmartDetect (Software algorithm) |
| Temperature compensation | Effective motion detection in temperatures from -10°C to +40°C |
Photo-Verification
| Feature | Description |
|---|---|
| Photo for alarm | A built-in camera is activated if the detector is engaged and detects motion. |
| Photo on demand | The user can take a photo at any time or when the detector is engaged (depends on settings). The function is disabled by default. |
| Photo by scenario | The detector camera automatically takes photos when Ajax fire detectors are activated. The function is disabled by default. |
| Photos by schedule | The detector camera automatically takes photos at a specific time. Available for hubs with OS Malevich firmware 2.19 or later. |
| Photo resolution |
|
| HDR Image | Improves detail accuracy in bright and dark scenes. Available for devices with firmware 16.59.36.5 or later. |
| IR Lighting | For night or low-light shots. |
| Bulk images |
|
| Photo delivery time |
|
Anti-Sabotage Protection
| Feature | Description |
|---|---|
| Tamper-resistant tamper | Warning if an attempt is made to detach the detector from the surface or remove it from the mounting panel. |
| Anti-counterfeiting protection | Device authentication to prevent unauthorized access. |
| Loss-of-connection notification | Detection of loss of communication in 36 seconds. |
| Note | Detection time depends on Jeweller or Jeweller/Fiber settings. |
Power supply
| Feature | Description |
|---|---|
| Batteries | 2 × CR123A (preinstalled) |
| Calculated battery life | Up to 4 years (when Photo on Demand is turned off) |
| Up to 3 years (when Photo on Demand is turned on) |
Casing
| Feature | Description |
|---|---|
| Dimensions | 135 × 70 × 60 mm |
| Weight | 170 g |
| Operating temperatures | -10°C to +40°C |
| Maximum allowable humidity | up to 75% |
| Protection class | IP50 |
Package contents
| Element | Description |
|---|---|
| Device | 3 MotionCam (PhOD) Jeweller |
| Mounting panel | 3 SmartBracket |
| Installation kit | Included |
| Batteries | 6 × CR123A (preinstalled) |
| Quick Start Guide | Included |
ottima soluzione la foto trappola, materiale robusto anche se mi sarebbe piaciuto che fosse più orientabile nel suo fissaggio
Data sheet
- Colour: White
- Type: Detectors Wireless
- System: Wireless
- Installation: Internal
