Ape elbow fitting F 1/2 x 16 mm brass ARL3103100
55X ARL3103100
8033708135660
Ape press elbow fitting for multilayer pipe with the following features:
- Connection: Female
- Fittings: 1/2
- Diameter: 16 mm
- Material: Brass

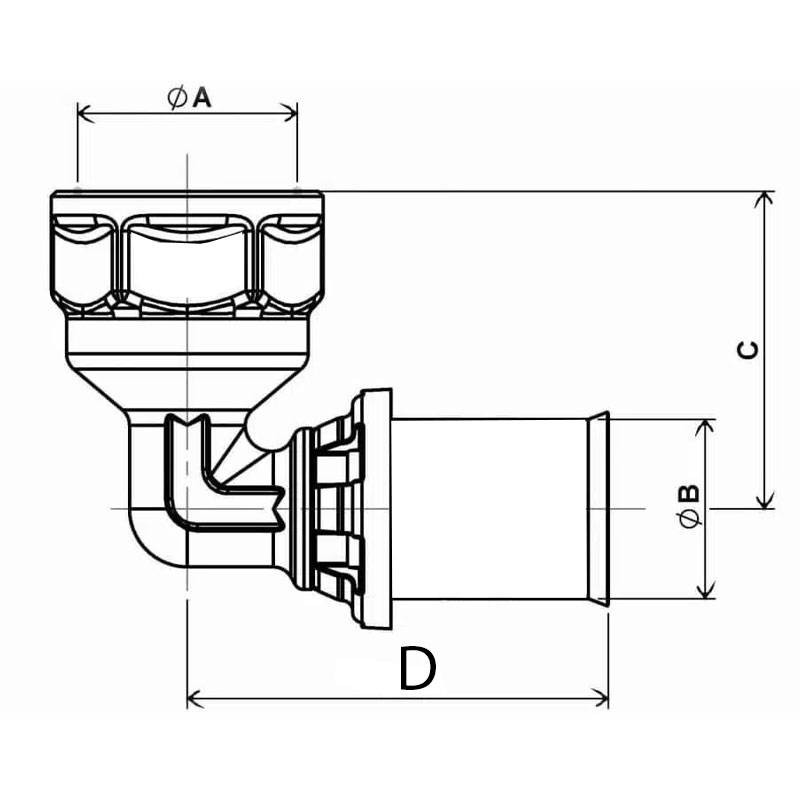

- Dimensions: 1/2x16x31.5x41.8 (A-B-C-D)
Scope of application: Hydro-thermal sanitary systems. Use fluid: Potable water, technical water and glycol water.
Ape elbow fitting F 1/2 x 16 mm brass ARL3103100
€2.04
€2.04
Tax included
Tax included
Items Available: 311
: 124
APL series press fittings, made in accordance with UNI EN ISO 21003-3, UNI EN 1254-3 and DM 174, are designed and manufactured to increase sealing characteristics and reduce assembly time, thus facilitating the installer in installation. Equipped with a double o-ring seal and a polyamide ferrule to support the pipe-tightening sleeve, they are used in hydro-thermo-sanitary installations.
Unlike compression fittings, the coupling of press fittings has the special characteristic of being immovable: this means that, if pressed properly, the APL fitting undergoes permanent deformation that guarantees tightness over time. Precisely for this reason, press-fit coupling is the only system used and guaranteed in undercutting installation.
Features:
- Field of application: Hydro-thermal sanitary systems
- Application fluid: Potable water, technical water and glycol water
- Percentage of glycol: max 30%
- Temperature range: -25°C to 120°C
- Operating pressure: max 16 bar
- Type of piping: multilayer PE-Xb/AL/PE-Xb (in accordance with UNI 21003 standard)
There are no reviews
Data sheet
- Diameter:
- 16mm
- Type:
- Fittings
- Connection:
- F
- Model:
- Elbow
- Connections:
- 1/2 inches
- Material:
- Brass
