Ape Straight Sleeve D 16 mm Brass ARL1200110
55X ARL1200110
8033708135301

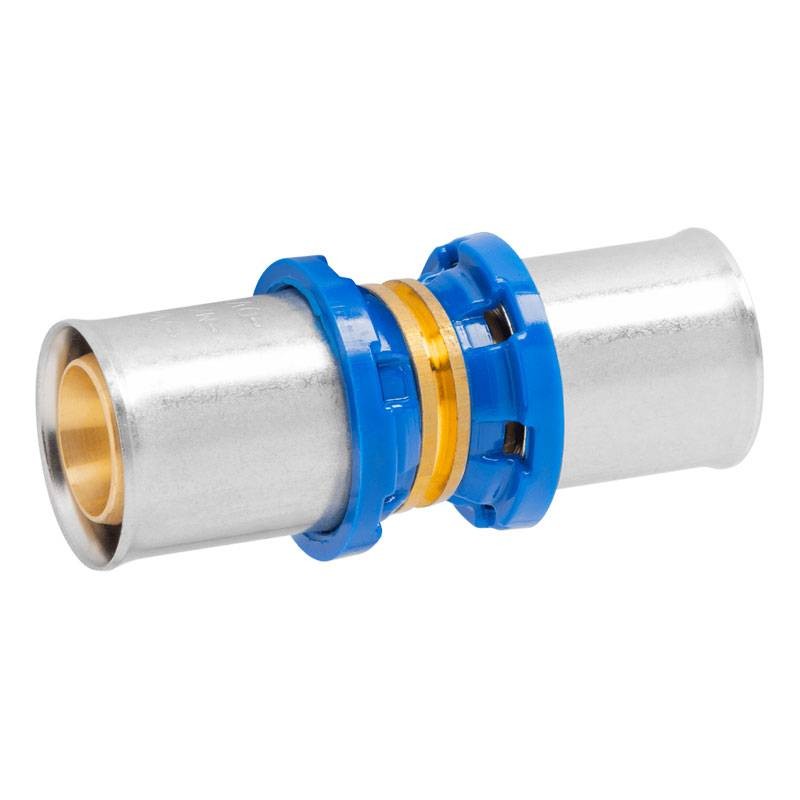

Ape Sleeve Straight press fitting for multilayer pipe with the following characteristics:
- Diameter: 16x16 mm
- Material: brass

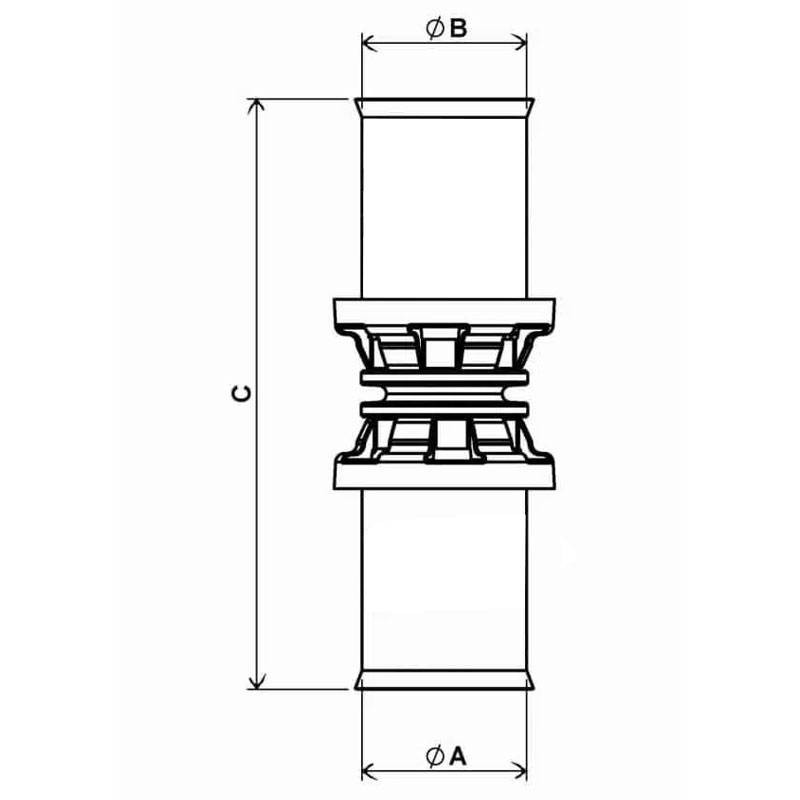

- Dimensions: 16x16x63.6 (A-B-C)
Field of application: Plumbing and heating systems. Use fluid: Potable water, technical water and glycol water.
Ape Straight Sleeve D 16 mm Brass ARL1200110
€1.73
€1.73
Tax included
Tax included
Items Available: 168
: 84
APL series press fittings, made in accordance with UNI EN ISO 21003-3, UNI EN 1254-3 and DM 174, are designed and manufactured to increase sealing characteristics and reduce assembly time, thus facilitating the installer in installation. Equipped with a double o-ring seal and a polyamide ferrule to support the pipe-tightening sleeve, they are used in hydro-thermo-sanitary installations.
Unlike compression fittings, the coupling of press fittings has the special characteristic of being immovable: this means that, if pressed properly, the APL fitting undergoes permanent deformation that guarantees tightness over time. Precisely for this reason, press-fit coupling is the only system used and guaranteed in undercutting installation.
Features:
- Field of application: Hydro-thermal sanitary systems
- Application fluid: Potable water, technical water and glycol water
- Percentage of glycol: max 30%
- Temperature range: -25°C to 120°C
- Operating pressure: max 16 bar
- Type of piping: multilayer PE-Xb/AL/PE-Xb (in accordance with UNI 21003 standard)
There are no reviews
Data sheet
- Diameter:
- 16mm
- Type:
- Fittings
- Model:
- Straight
- Material:
- Brass
