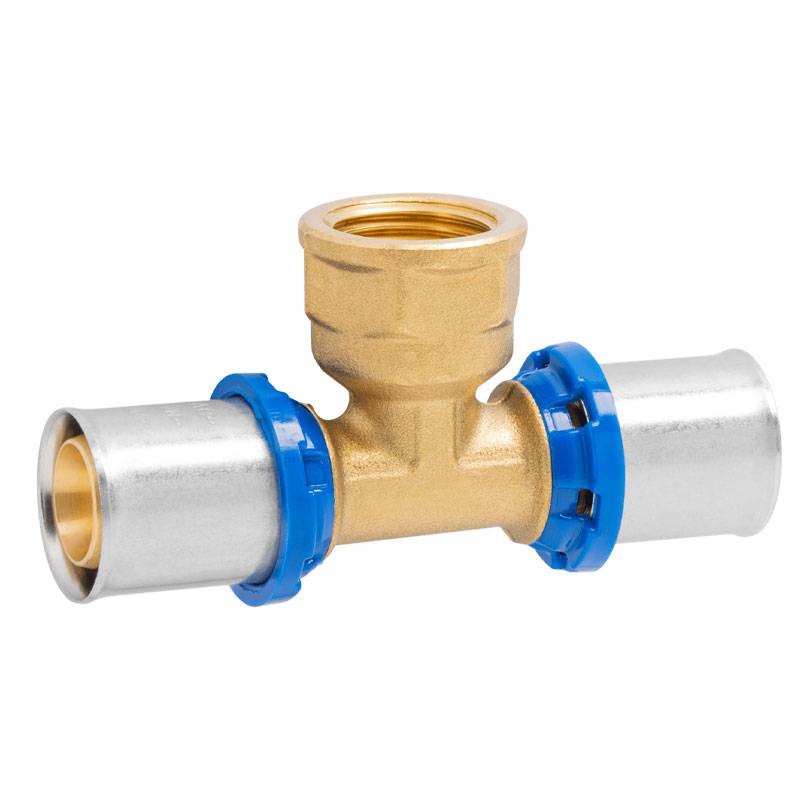

Ape T-fitting F Brass 3/4 x 26 mm ARL2104303
55X ARL2104303
8033708135561
Ape press fitting for multilayer pipe with the following features:
- Connection: Female
- Fittings: 3/4
- Diameter: 26x26 mm
- Material: Brass

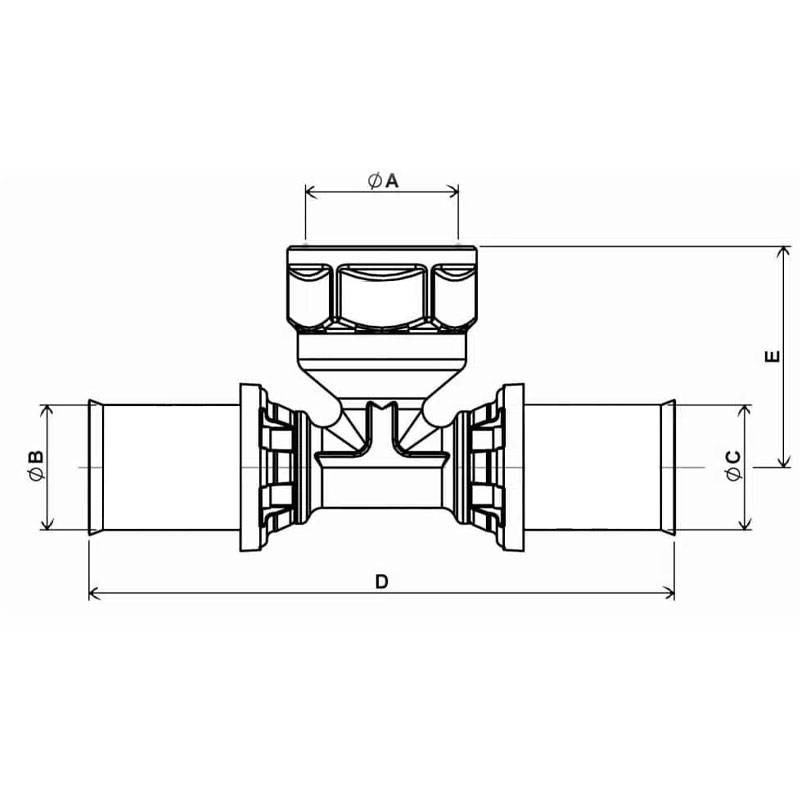

- Dimensions: 3/4x26x94x36.5 (A-B-C-D-E)
Scope of application: Plumbing and heating systems. Use fluid: Potable water, technical water and glycol water.
Ape T-fitting F Brass 3/4 x 26 mm ARL2104303
€7.70
€7.70
Tax included
Tax included
Items Available: 66
: 31
APL series press fittings, made in accordance with UNI EN ISO 21003-3, UNI EN 1254-3 and DM 174, are designed and manufactured to increase sealing characteristics and reduce assembly time, thus facilitating the installer in installation. Equipped with a double o-ring seal and a polyamide ferrule to support the pipe-tightening sleeve, they are used in hydro-thermo-sanitary installations.
Unlike compression fittings, the coupling of press fittings has the special characteristic of being immovable: this means that, if pressed properly, the APL fitting undergoes permanent deformation that guarantees tightness over time. Precisely for this reason, press-fit coupling is the only system used and guaranteed in undercutting installation.
Features:
- Field of application: Hydro-thermal sanitary systems
- Application fluid: Potable water, technical water and glycol water
- Percentage of glycol: max 30%
- Temperature range: -25°C to 120°C
- Operating pressure: max 16 bar
- Type of pipe: multilayer PE-Xb/AL/PE-Xb (in accordance with UNI 21003 standard)
There are no reviews
Data sheet
- Diameter:
- 26mm
- Type:
- Fittings
- Connection:
- F
- Model:
- T-Fittings
- Connections:
- 3/4 inches
- Material:
- Brass
