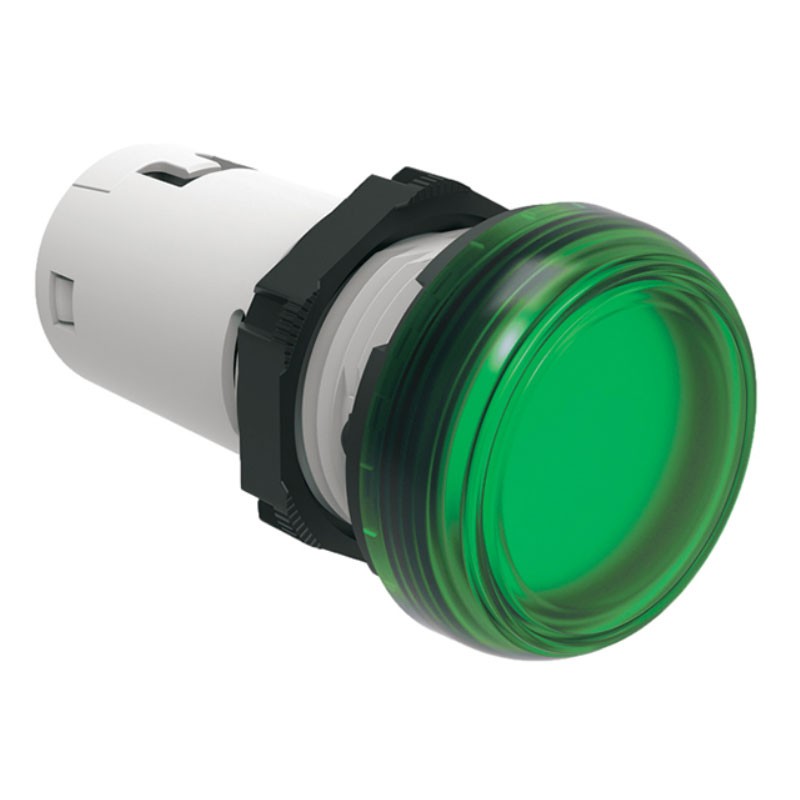

Lovato monoblock LED indicator light Green LED 230V LPMLM3
LOV LPMLM3
8013975225219
Lovato one-piece LED indicator/lamp with the following features:
- Supply voltage (AC):230V (-15% ... +10% Ue)
- Rated frequency 50-60 Hz
- Color: green
- Material: polyamide
- IEC degree of protection : IP66, IP67 and IP69K at the front; IP20 at the back
- Rated frequency 50-60 Hz
- Electrical life hours: >30000
- Tightening torque for terminals max: Nm 0.8
Lovato monoblock LED indicator light Green LED 230V LPMLM3
€8.52
€8.52
Tax included
Tax included
Items Available: 42
Other technical features:
- Lovato series
- Screw terminals: screw termination
- Conductor cross section AWG/kcmil: min 18 - max 16
- IEC: max mm² 2.5
- Fixing: Ø22mm ring fixing
- Weight: 24 grams
- UL rating: Type 1, 2, 3R, 4, 4X, 12, 12K on the front side
- Operating temperature: min °C -25 - max °C +70
Data sheet
- Type: Buttons
- Voltage: 230V
- Degree of protection: IP67
