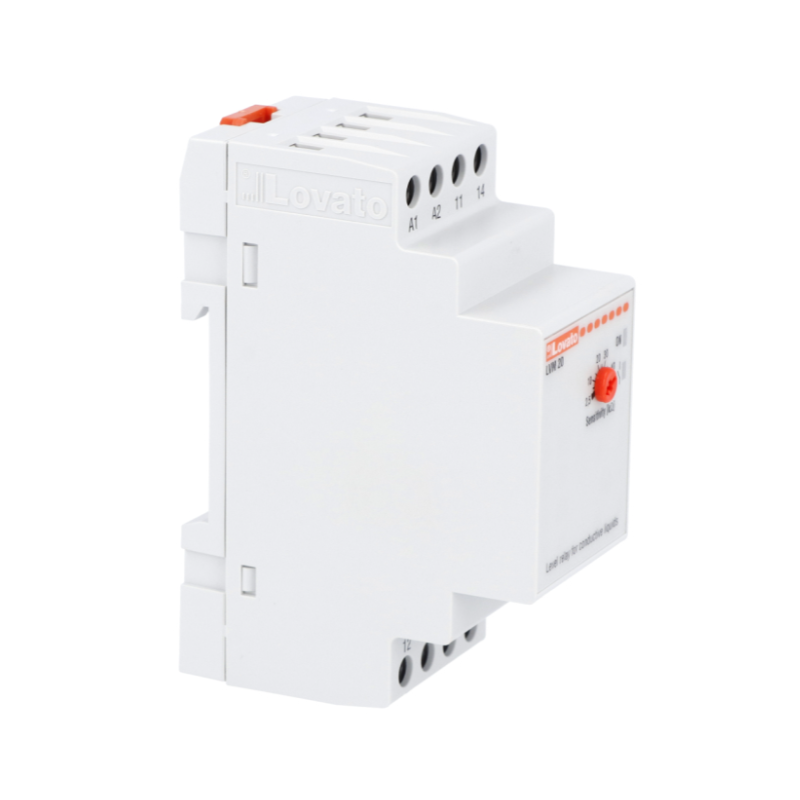

Lovato modular level relay automatic reset 24VAC LVM20A024
LOV LVM20A024
8013975124987
Level control relay for the Lovato emptying function, with the following characteristics:
- Supply voltage type: single voltage
- Rated auxiliary supply voltage Us: alternating current (min VAC 24)
- Operating voltage range: 0.85 to 1.1 Us
- Rated insulation voltage Ui: 415V
- Rated impulse withstand voltage Uimp: kV 6
- Withstand voltage at operating frequency: kV 4
- Double insulation Power supply/relay/electrode: VAC ≤250
- Rated frequency: 50/60 Hz
- Max power consumption: VA 3.5
- Max power dissipation: 1.8W
- Number of connectable electrodes: 3
- 2 modules
- Modular version, with automatic reset
Lovato modular level relay automatic reset 24VAC LVM20A024
€62.63
€62.63
Tax included
Tax included
Items Available: 1
Other technical features:
- Electrode type: electrode holder and electrode holder: SN1 / SCM / CGL / PS31 / PS3S or similar
- Electrode voltage: 7.5 V AC
- Sensitivity: kohm 2.5...50 adjustable
- Travel time: S ≤0.6
- Recovery time: S ≤0.75
- Number of relays: 1
- Operating temperature: min °C -20, max °C +60
- Storage temperature: min °C -30, max °C +80
- Relay status: Normally de-energized, energizes when triggered
- Contact arrangement: 1 C/O-SPDT changeover contact
- Rated operating voltage AC (IEC): 250 Vac
- Maximum switching voltage: 400 vac
- IEC Conventional free air thermal current Ith UN 8
- UL/CSA and IEC/EN 60947-5-1 designation: B300
- Electrical life (at rated load): 105 cycles
- Mechanical life: 30x106 cycles

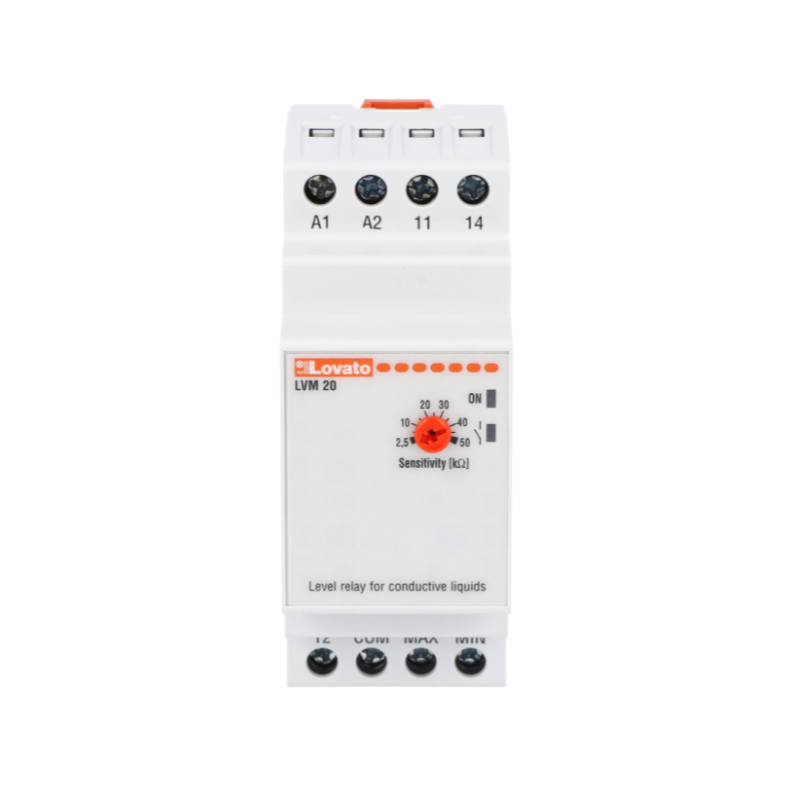

- Indication: 1 green LED for power on 1 red LED for relay status
- Terminal type: screw terminal
- Execution: DIN rail, modular housing
- Material: self-extinguishing polyamide

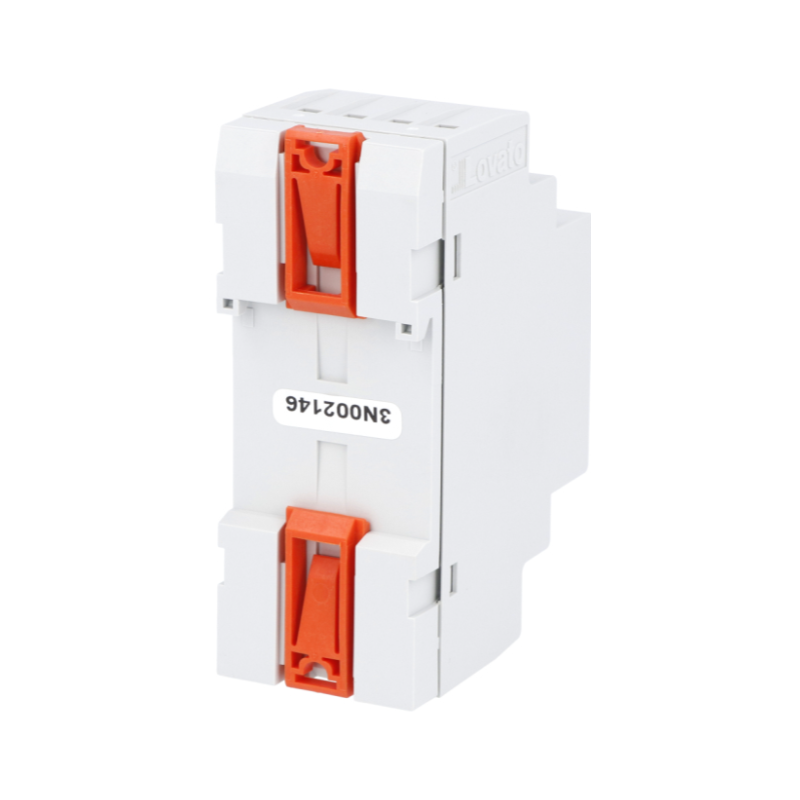

- Mounting: 35 mm DIN rail (IEC/EN 60715) or by screws through removable clips
- IEC degree of protection : IP40 on front panel / IP20 on terminals

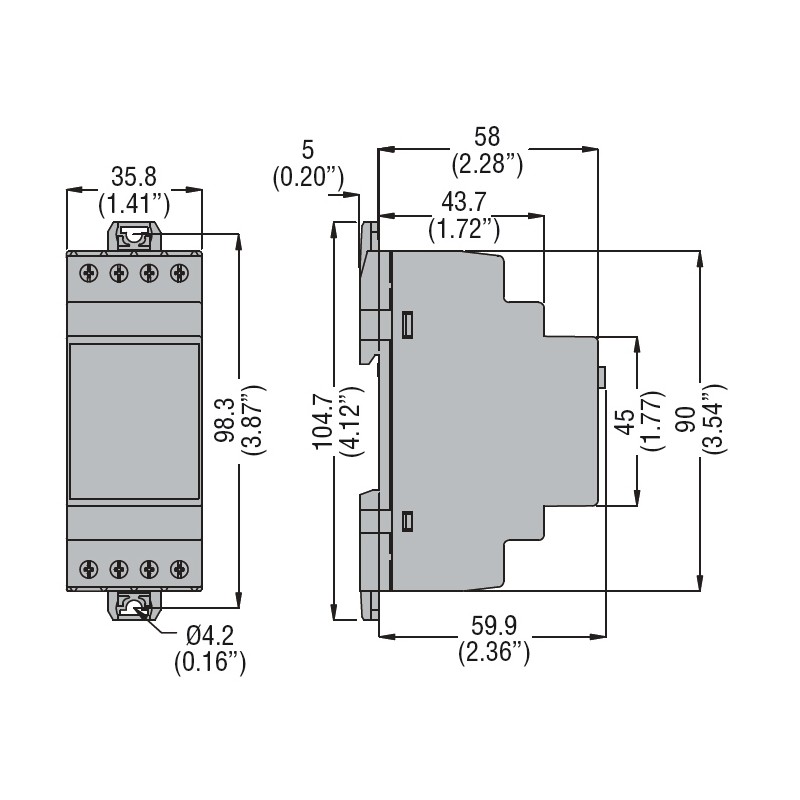

- Dimensions in mm (W x H x D) 35.8 x 104.7 x 64.9
- Weight : 215 grams
Tightening torque for terminals:
- max Nm 0.8
- max Ibin 7
Conductor cross-section:
- AWG/Kcmil: minimum AWG 24, maximum AWG 12
- IEC: minimum mm² 0.2, maximum mm² 4
There are no reviews
Data sheet
- Type: Monitoring relays
- Voltage: 24VAC
- Degree of protection: IP40
