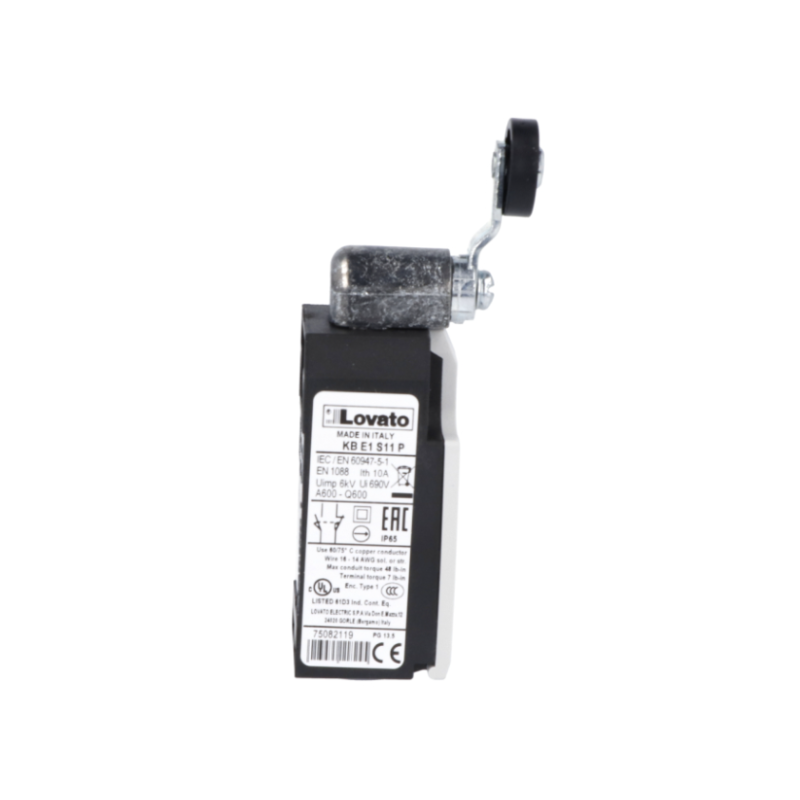

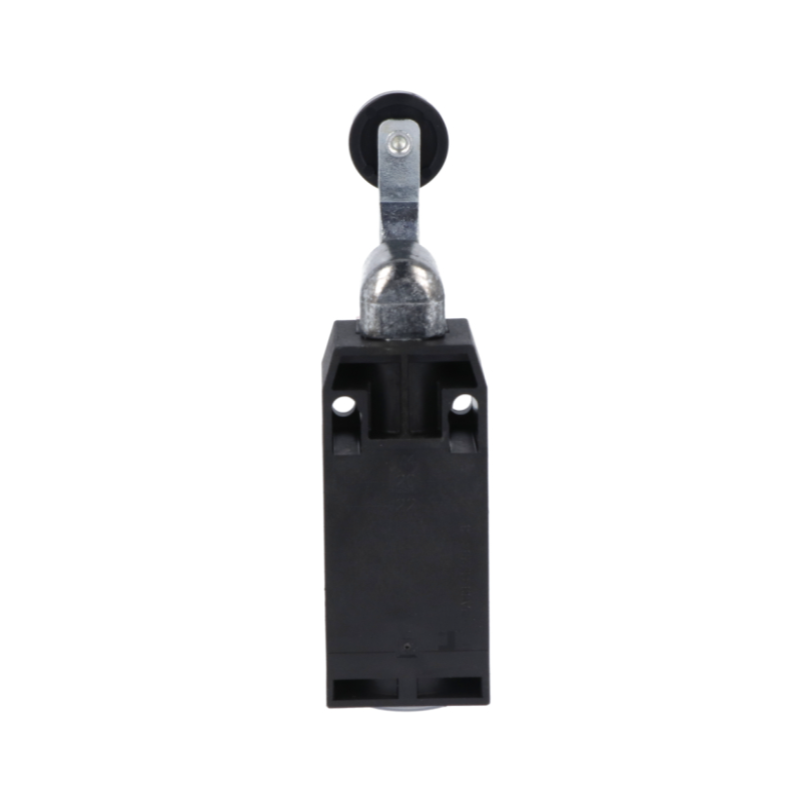

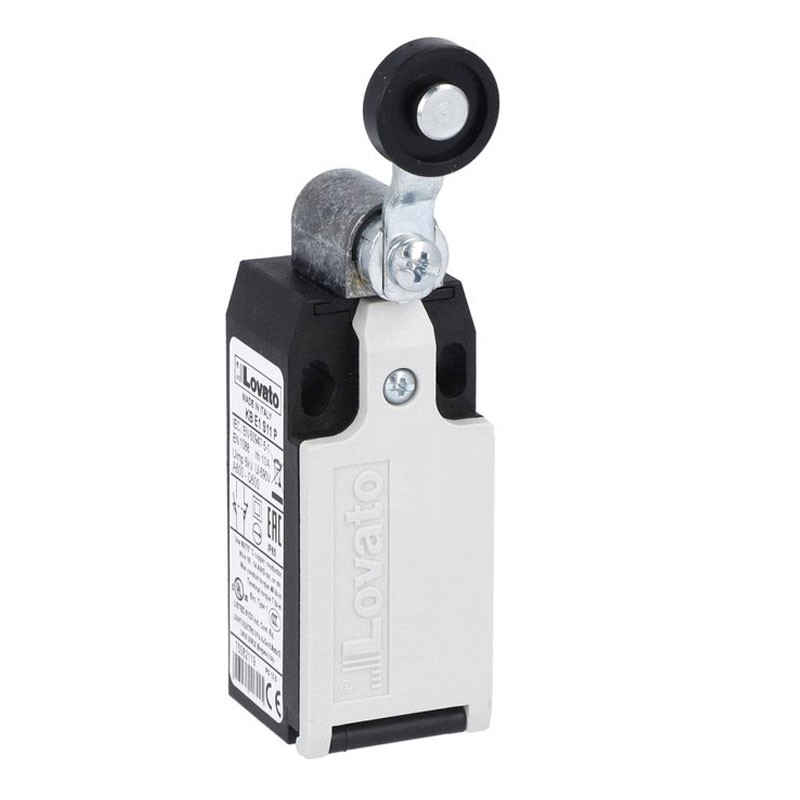

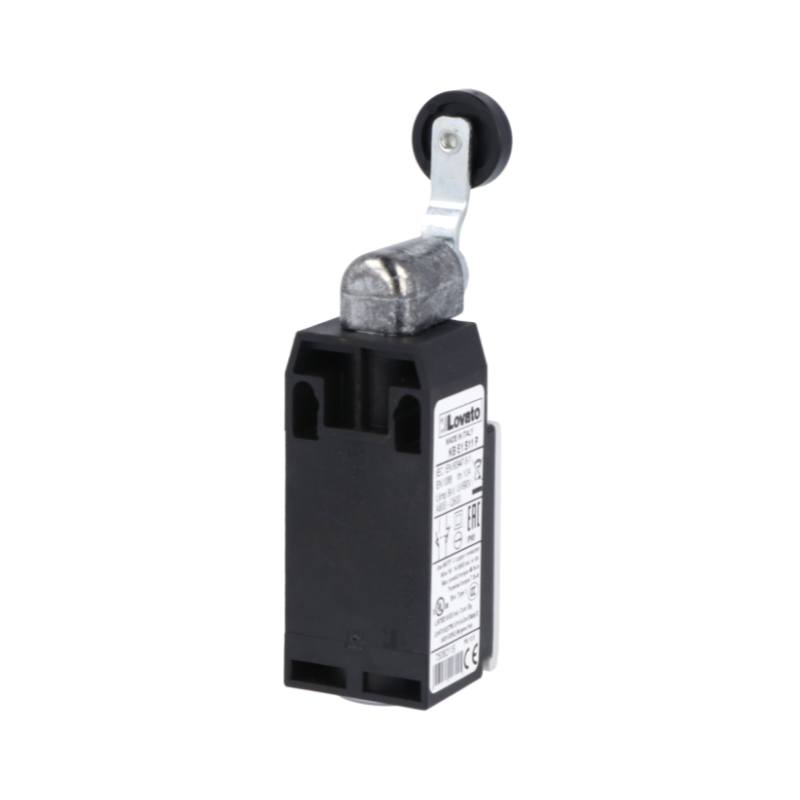

Lovato K-series lever end switch with roller contacts 1NA+1NC KBE1S11

Lovato
LOV KBE1S11 8013975114209

Lovato K series metal and plastic end switch with the following features:



  • Contact type: 1NO+1NC (snap action)
  • Thermal current Ith UN 10
  • IEC/EN 60947-5-1 designation: A600 Q300
  • Rated insulation voltage Ui :690V
  • Rated impulse withstand voltage Uimp: kV 6
  • Insulation class II
  • Fuse short-circuit protection: class A, fast fuse 10 gG/SC
  • Switching speed: min SM 0.5, max SM 1.5
  • IEC Conventional free air thermal current: Ith UN 10
  • Resistance per pole (average value) m? <10
Do you have questions about this product or did you not find what you were looking for? Ask us!

Lovato K-series lever end switch with roller contacts 1NA+1NC KBE1S11

€16.11
€16.11

Lovato K-series lever end switch with roller contacts 1NA+1NC KBE1S11

€16.11
Tax included
Items Available: 7
Further availability of the manufacturer

Lovato K-series lever end switch with roller contacts 1NA+1NC KBE1S11

€16.11

Buy it within and receive it from Wednesday, 13 November
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Other technical features:

  • Lovato series
  • Operating head fastening: bayonet locking insert
  • Operating torque: Ncm 3 - ozin 4.25
  • Cable connection: self-locking screw terminal
  • Cable entry: M20 bottom
  • Mechanical life cycles <10000000
  • Mechanical operation cycles/h: 3600
  • Operating temperature: min -25/+70°C
  • Storage temperature: -40/+70°C
  • IP grade: terminals IP20, body housing IP65
  • Pollution degree 3
  • Housing material: thermoplastic polymer
  • Roller material: plastic

Ok producto recibido correctamente en tiempo razonable

Read all reviews

Data sheet

Type:
Limit switch

Other products with same features
