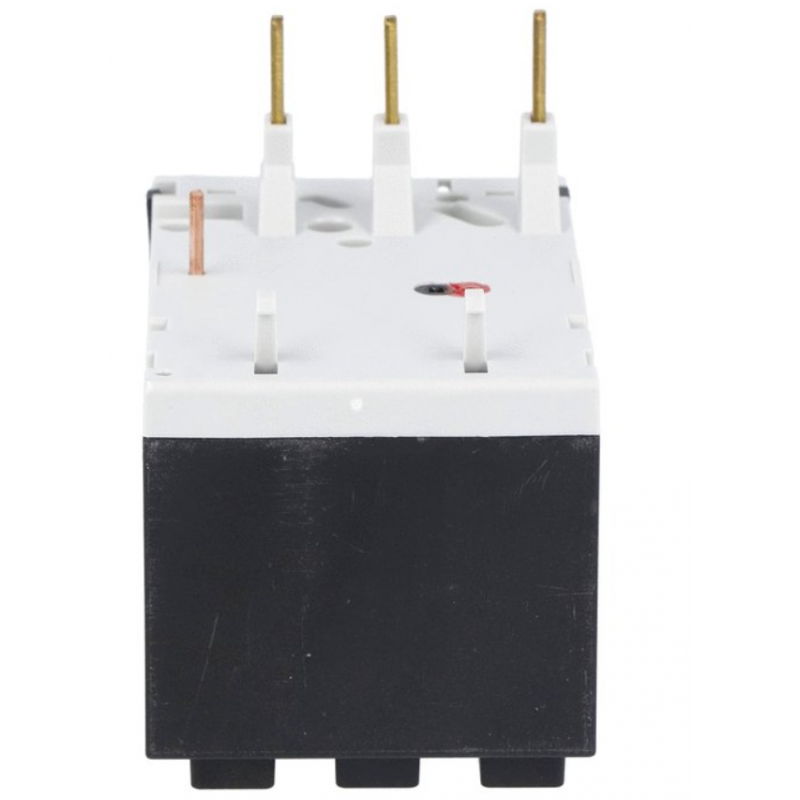

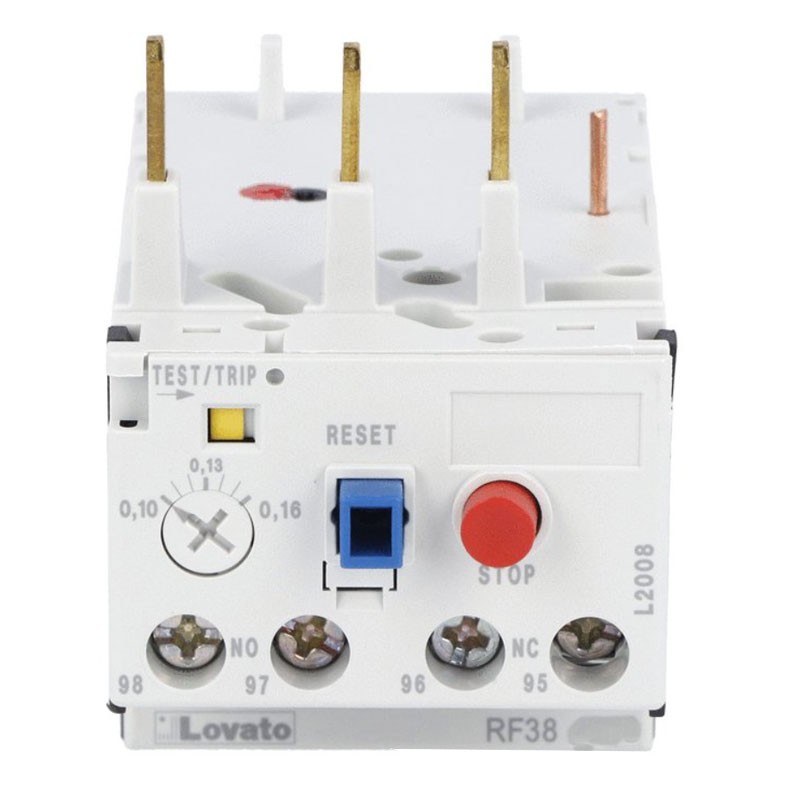

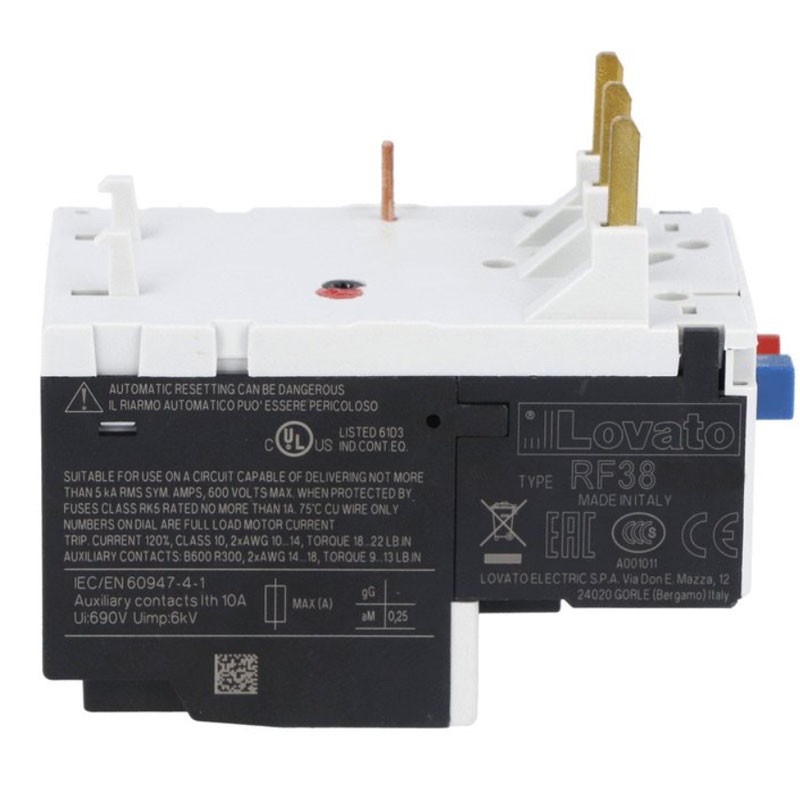

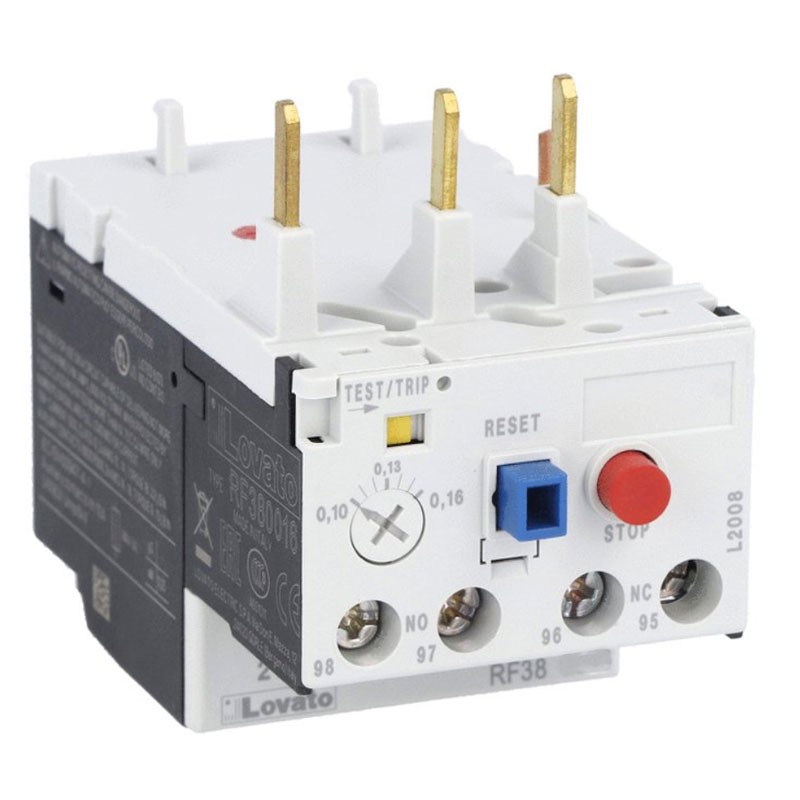

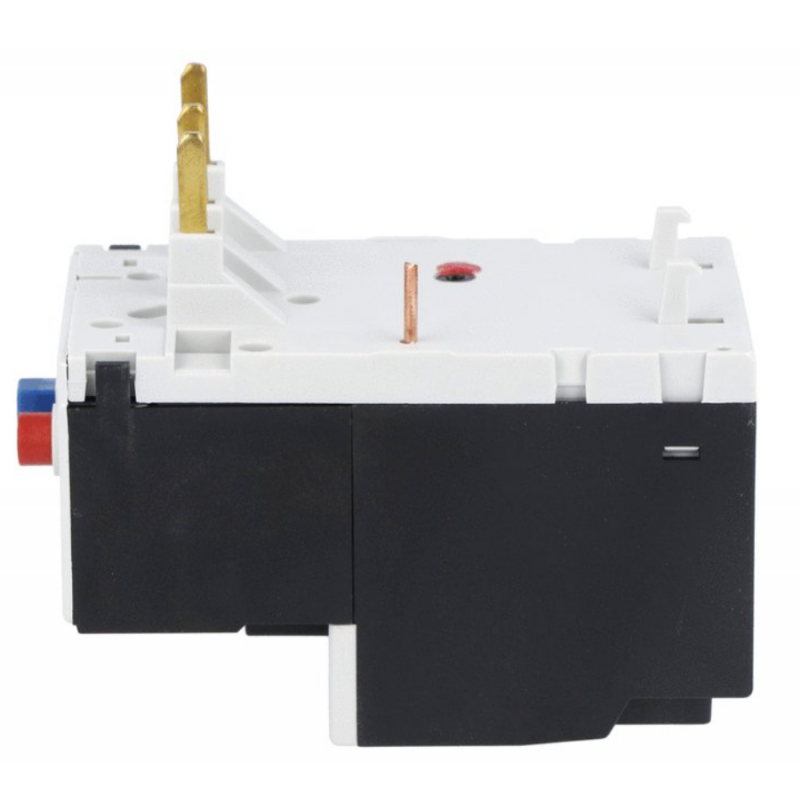

Lovato thermal overload relay BF09-38 6.5 to 10A RF381000

Lovato
LOV RF381000 8013975169902

Lovato thermal overload relay with the following characteristics:



  • Rated insulation voltage Ui: IEC/EN 690V
  • Rated impulse withstand voltage: Uimp kV 6
  • Rated operating voltage: 690V
  • Conductor cross-section: AWG/kcmil max 8
  • With: test button and trip indicator
  • Auxiliary contacts: 1NO and 1NC
  • Operating frequency: min Hz 0 - max Hz 400
  • Current: min operating current UN 6.3 max operating current UN 10
  • Trip class 10A
Do you have questions about this product or did you not find what you were looking for? Ask us!
Lovato thermal overload relay BF09-38 6.5 to 10A RF381000
€41.13
€41.13

€41.13
Tax included
Items Available: 35
Further availability of the manufacturer
€41.13

Buy it within and receive it from Friday, 21 March
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Other features:

  • Operating temperature: min °C -25/ max °C 60
  • Storage temperature: min °C -50/ max °C 70
  • Compensation temperature: min °C -20/ max °C 60
  • Maximum altitude: 3000 m
  • Operating position: normal Vertical plane - permissible ±30°
  • Weight: 160 grams
  • Number of poles: 3
  • Overvoltage category: III
  • Pollution degree: 3
  • Front IP rating: IP20
  • Type of release: Thermal
  • Phase failure detection: yes
  • Reset mode: Manual or automatic

There are no reviews

Data sheet

Type:
Protection relay
Voltage:
690V
Poles:
3P
Degree of protection:
IP20
