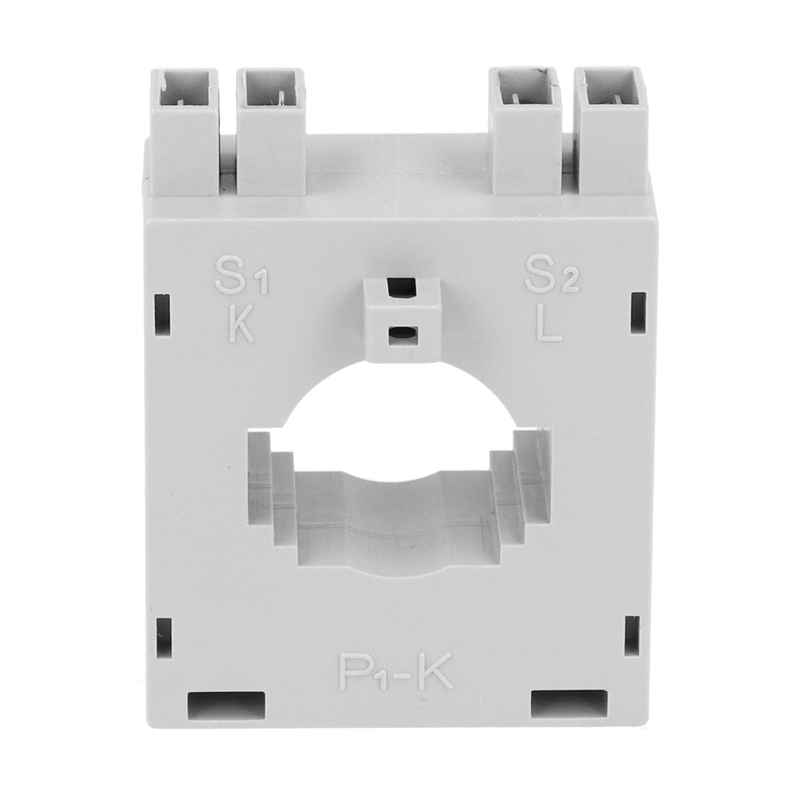

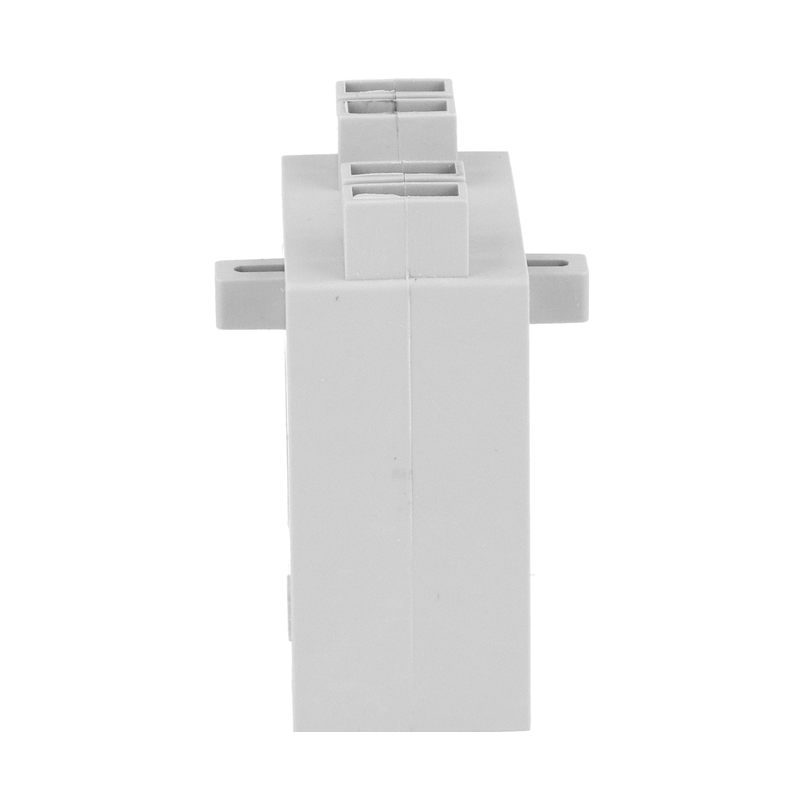

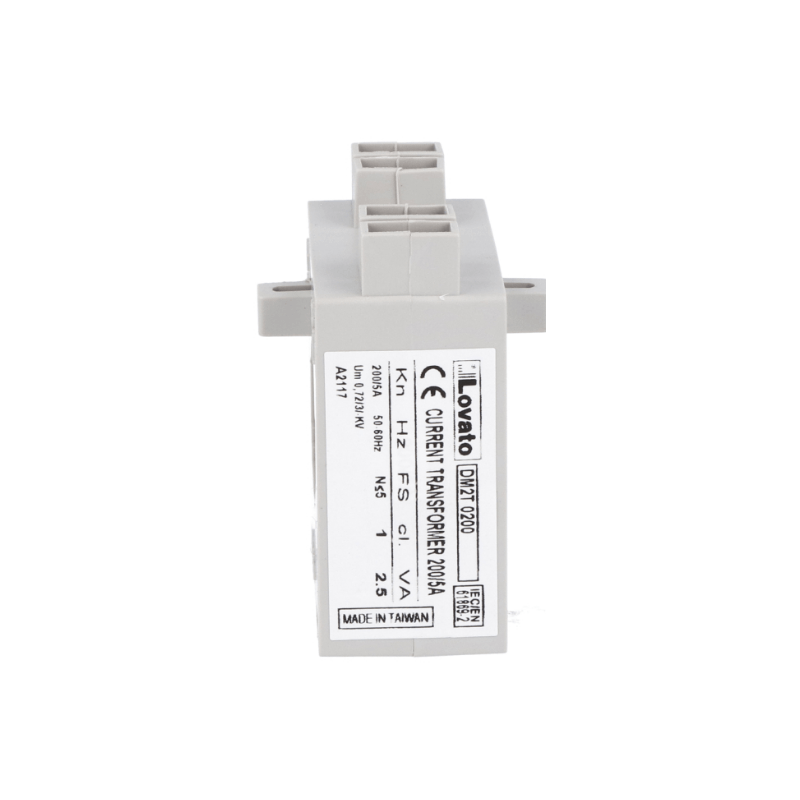

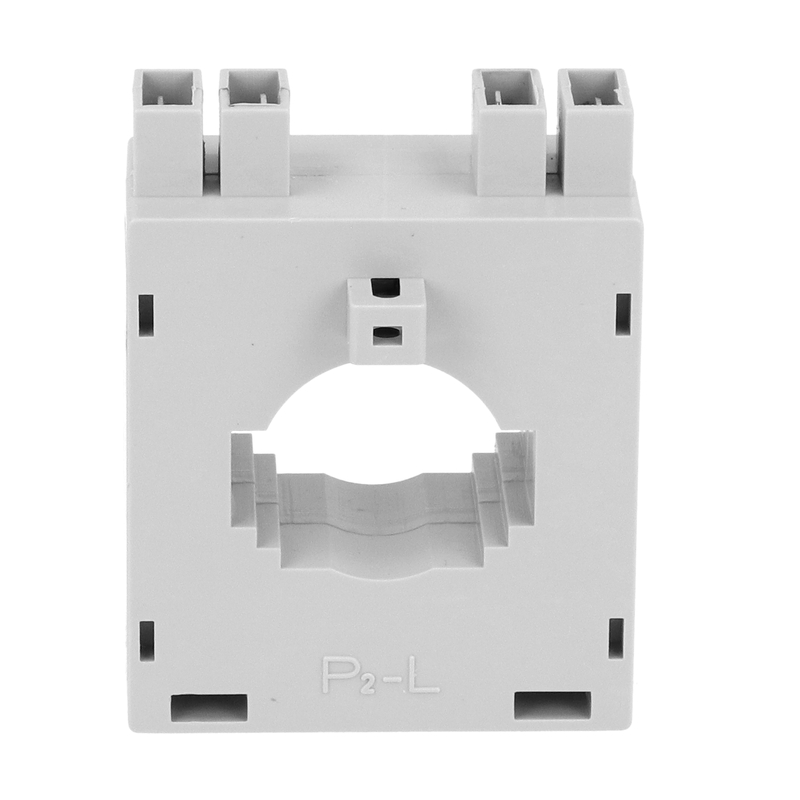

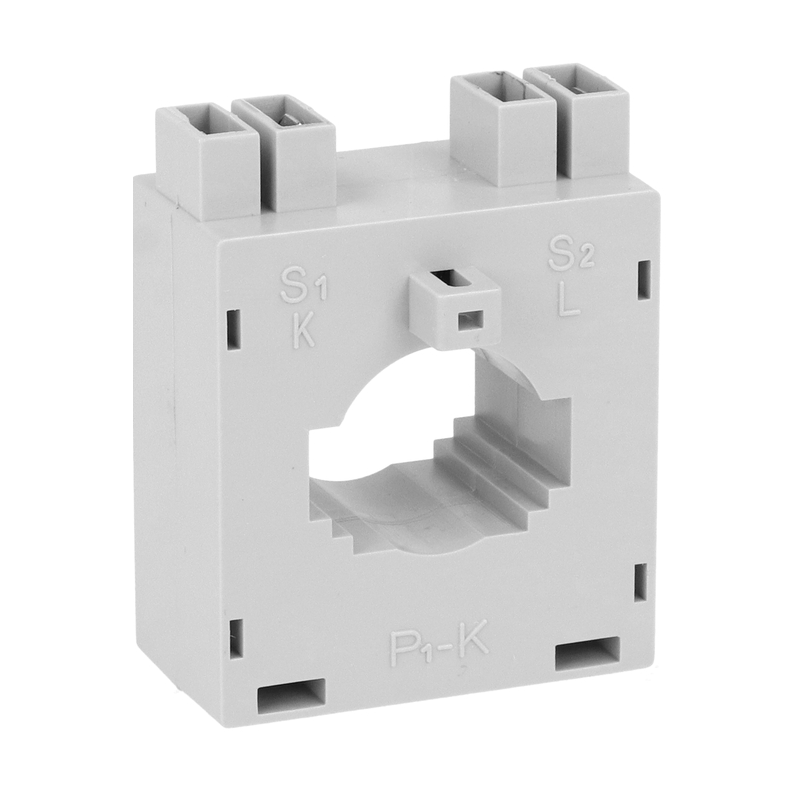

Lovato toroidal transformer through-current cable 23mm 200A DM2T0200
LOV DM2T0200
8013975121801
Lovato toroidal current transformer, with the following features:
- Through cable 23 mm
- Diameter 23 mm
- Frequency of use min 50 Hz - max 60 Hz
- Primary current Ipn 200A
- Secondary current 5A
- Rated insulation voltage IEC/EN 720V
- Faston type connections
- DIN rail or screw fixing
- Product weight 130gr
- Degree of protection IP30
![](https://www.elettronew.com/67158-large_default/lovato-toroidal-transformer-through-current-cable-23mm-200a-dm2t0200.jpg)
Lovato toroidal transformer through-current cable 23mm 200A DM2T0200
€14.67
€14.67
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 20
Features:
- Lovato Series
- Through cable 23 mm
- Diameter 23 mm
- Frequency of use min 50 Hz - max 60 Hz
- Primary current Ipn 200A
- Secondary current 5A
- Permanent overcurrent Ipn 120
- Performance cl.1 2 VA
- Rated insulation voltage IEC/EN 720V
- Rated short-time thermal current Ith for s 40...60
- Rated dynamic current Idyn Ith for s 2.5
- Insulation in air class E
- Faston connections
- DIN rail or screw fixing
- Product weight 130gr
- Operating temperature min -25°C - max +50°C
- Storage temperature min -40°C - max +80°C
- Relative humidity 90%
- Degree of protection IP30
Data sheet
- Type:
- Toroidal Transformers
- Degree of protection:
- IP30
- Amps:
- 200A
