LVM25 240 modular Lovato level relay kit and 2 SN1 probes LVMKIT25

Lovato
LOV LVMKIT25 8013975156520

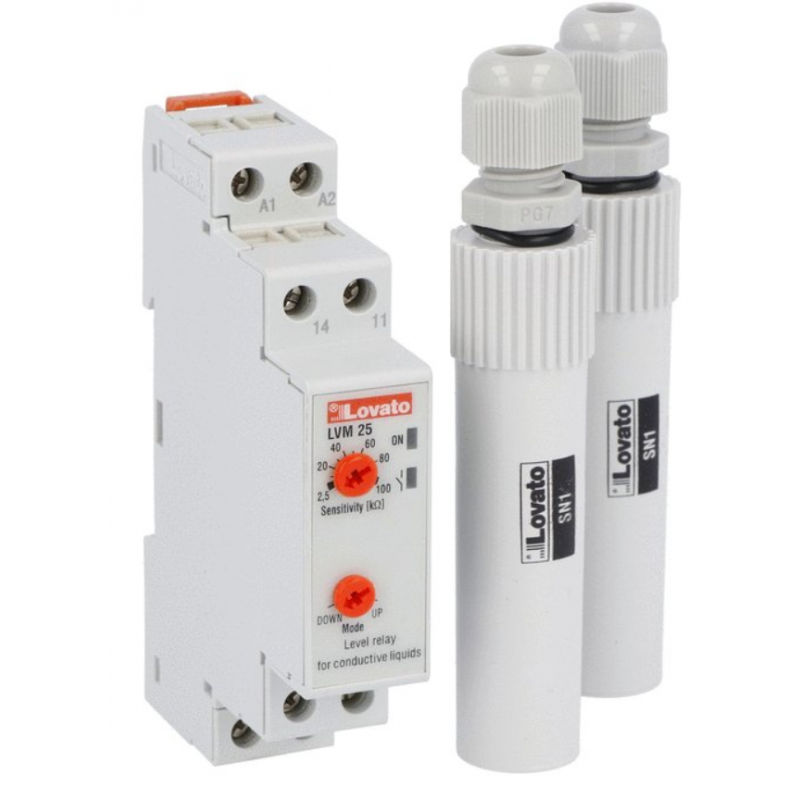

Lovato modular level relay starter kit, and 2 SN1 electrode probes.

Do you have questions about this product or did you not find what you were looking for? Ask us!

LVM25 240 modular Lovato level relay kit and 2 SN1 probes LVMKIT25

€75.23
€75.23

LVM25 240 modular Lovato level relay kit and 2 SN1 probes LVMKIT25

€75.23
Tax included
Items Available: 72
Further availability of the manufacturer

LVM25 240 modular Lovato level relay kit and 2 SN1 probes LVMKIT25

€75.23

Buy it within and receive it from Monday, 11 November
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

TECHNICAL FEATURES:

Auxiliary Power Supply:

  • Type of power supply voltage: Multivoltage
  • Nominal Us voltage: 24...240V AC/DC
  • Operating voltage range: 0.85...1.1 Us
  • Nominal Frequency Hz: 50/60
  • Max. power consumption: VA 3
  • Max Power Dissipation: w 1.2

Output characteristics

  • Number of connectable electrodes nr. 3
  • Electrode type: Electrode holder: SN1 / SCM / CGL / PS31 / PS3S or similar
  • Electrode voltage: 10 Vpp
  • Kohm sensitivity: 2.5...100

Delay:

  • Travel time S ≤1
  • Reset time S ≤1

Relay outputs

  • Number of relays nr. 1
  • Relay status: Normally de-energized, energized on trip
  • Contact layout: 1 changeover contact C/O-SPDT
  • Nominal operating voltage AC (IEC): VAC 250
  • Maximum switching voltage: VAC 400
  • IEC Conventional free air thermal current Ith UN 8
  • UL/CSA and IEC/EN 60947-5-1 designation: B300
  • Electrical life (with rated load) cycles 105
  • Mechanical life cycles: 30x106

Connections:

  • Type of terminals: Screw
  • Tightening torque for terminals: max Nm 0.8 - maxIbin 7
  • Conductor cross-section: AWG/Kcmil: min AWG - 24: max AWG 12
  • CEI: min mm² 0.2- Maximum mm² 4

Insulation:

  • Rated insulation voltage Ui: V240
  • Rated impulse withstand voltage Uimp: kV4
  • Rated withstand voltage at operating frequency: Kv 2
  • Double insulation Power supply/relay/electrode: VAC ≤250

Environmental conditions:

  • Operating temperature: min °C -20 - max °C +60
  • Storage temperature: min °C -30 - max °C +80

Housing:

  • Design: modular
  • No. of modules 1
  • Material: self-extinguishing polyamide
  • Mounting: 35 mm DIN rail (IEC/EN 60715) or by means of screws with removable clips
  • IEC Degree of Protection IP40 on front panel / IP20 on terminals

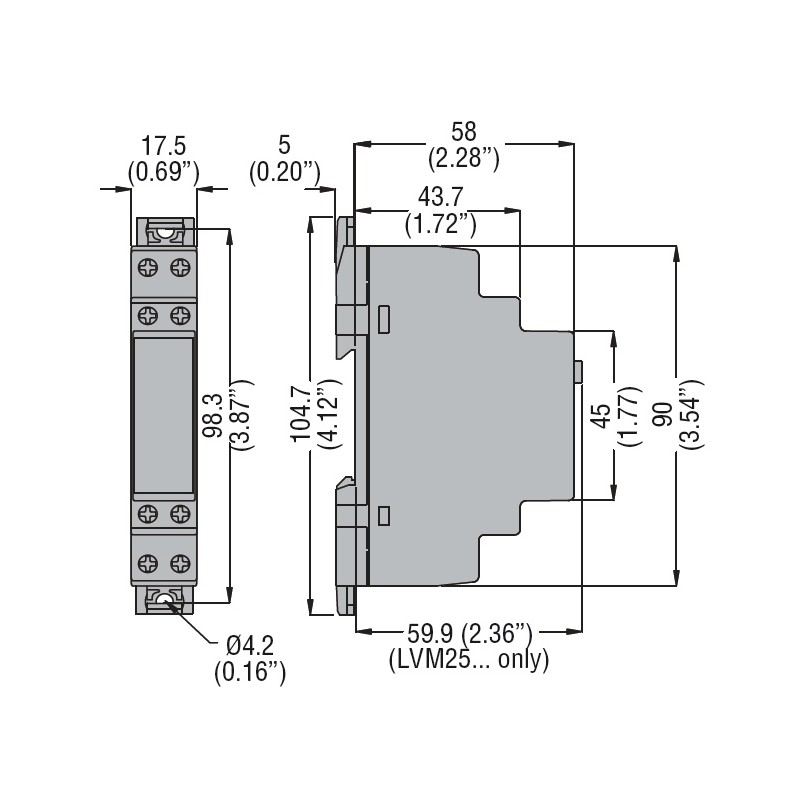

  • Dimensions (W x H x D): mm 17.5 x 104.7 x 64.9
  • Weight: 192 grams

There are no reviews

Data sheet

Type:
Monitoring relays
Voltage:
240VAC
Degree of protection:
IP40
