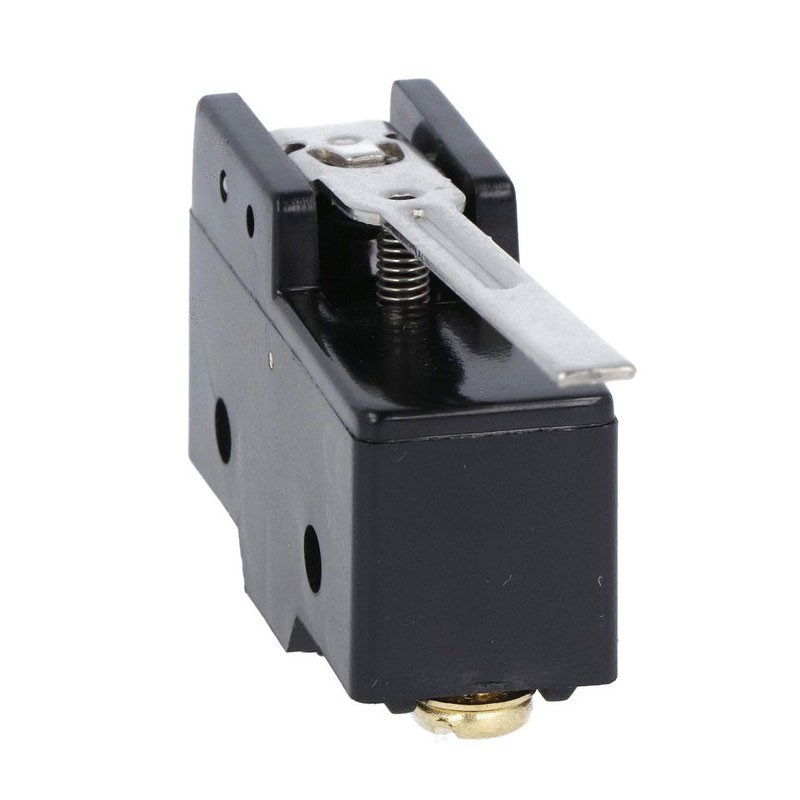

Lovato K-series microswitch with long flat lever 63mm 1NA-NC KSL1V

Lovato
LOV KSL1V 8013975148273

Lovato K-series plastic microswitch with the following features:

  • Housing material: thermoplastic polymer
  • Contact type: 1NA/NC
  • 63mm long flat lever
  • Conventional thermal current Ith: 15A
  • Designation according to IEC/EN 60947-5-1: A600 P300
  • Rated insulation voltage Ui: 250V
  • Switching speed: min m/s 0.01 - max m/s 1
  • Actuating speed: min m/s 0.05 - max m/s 1
  • Conventional thermal free air current Ith IEC: 15A
  • Resistance per pole (average value): m?<15
  • Conductivity: 10mA 5V
Do you have questions about this product or did you not find what you were looking for? Ask us!
Lovato K-series microswitch with long flat lever 63mm 1NA-NC KSL1V
€6.09
€6.09

€6.09
Tax included
Items Available: 45
Further availability of the manufacturer
€6.09

Buy it within and receive it from Tuesday, 18 March
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Other technical features:

  • Attachments: screw
  • Actuator head fixing: fixed
  • Actuating force: N 6.4 - ozin 23
  • Weight: 35 grams
  • Mechanical life: cycles 20000000
  • Electrical endurance: cycles 500000
  • Mechanical operation: cycles/hour 240
  • Operating temperature: -25/+70°C
  • Storage temperature: -40/+70°C
  • Degree of protection: IP00 or IP20 housing with terminal protection
  • Pollution degree: 3

Ordinato, arrivato in 24h, che dire....TOP!!

Read all reviews

Data sheet

Type:
Microswitches
