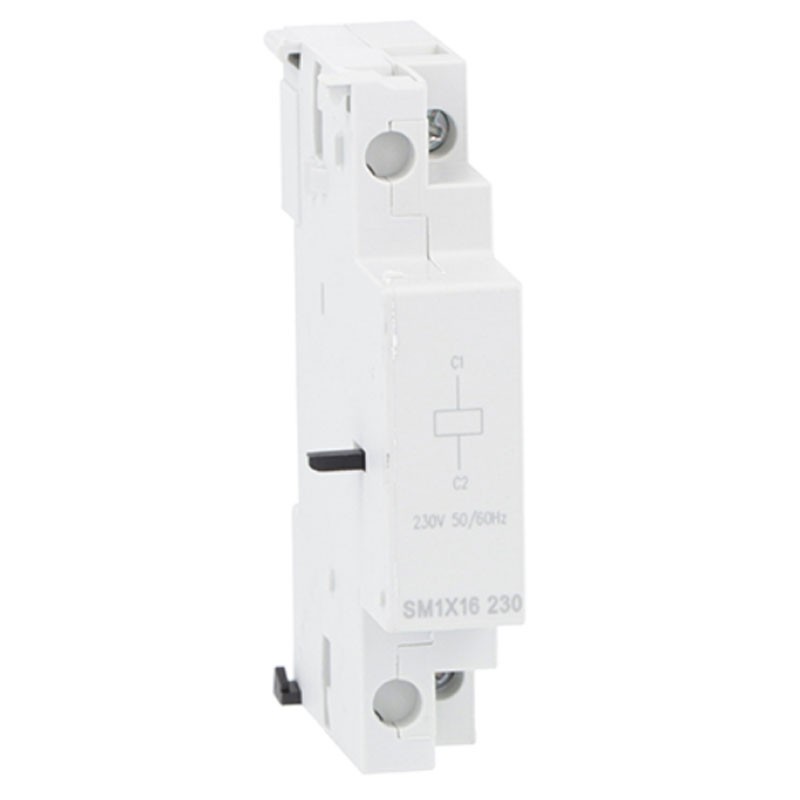

Lovato 230V Shunt trip release SM1X16230

Lovato
LOV SM1X16230 8013975219164

Lovato Shunt trip release, with the following features:



  • IEC/EN rated insulation voltage Ui: 690V
  • Rated impulse withstand voltage Uimp : kV 4
  • Rated supply voltage AC : VAC 230
  • Rated frequency: Hz 50
  • Peak consumption: VA 20
  • Operating voltage: NOI 70...110
  • Operating position: normal vertical, permissible any
  • Weight: 140 grams
  • Operations: mechanical life cycles 100000
  • Operating temperature: -20/+60°C
  • Storage temperature: -50/+80°C
  • Maximum altitude: m 3000
  • IEC degree of protection IP20
Do you have questions about this product or did you not find what you were looking for? Ask us!

Lovato 230V Shunt trip release SM1X16230

€26.97
€26.97

Lovato 230V Shunt trip release SM1X16230

€26.97
Tax included
Items Available: 1
Further availability of the manufacturer

Lovato 230V Shunt trip release SM1X16230

€26.97

Buy it within and receive it from Thursday, 6 February
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Tightening torque for terminals:



  • min Nm 1
  • max Nm 1
  • min Ibin 9
  • max Ibin 9



Terminals:



  • screw gender
  • M3.5 screw
  • width mm 7.2
  • Ph2 tool

There are no reviews

Data sheet

Type:
Coils
Voltage:
230V
Degree of protection:
IP20
