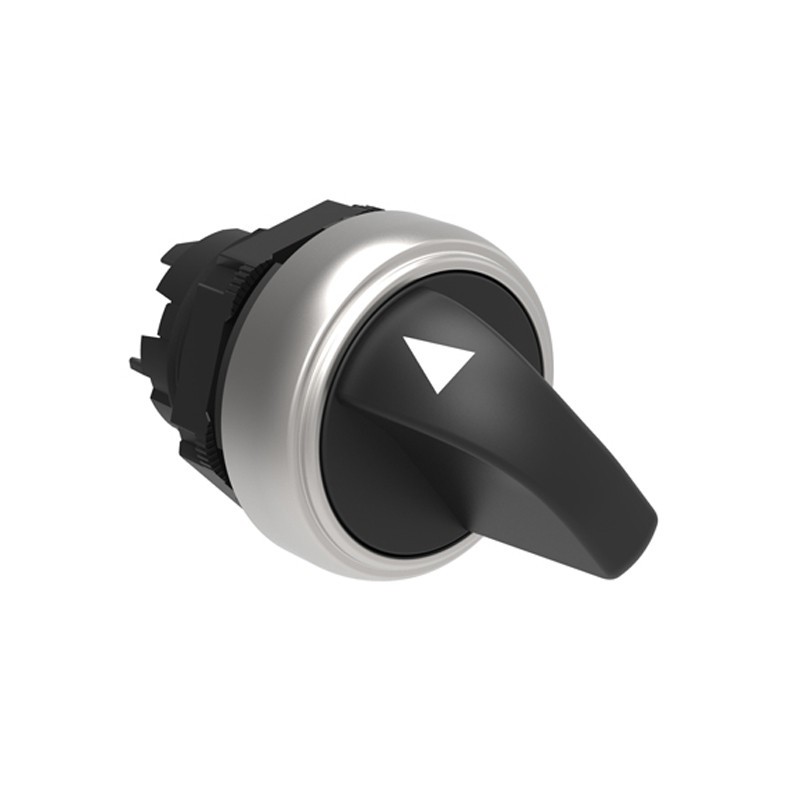

Selector switch short lever Lovato 0-1 Platinum series LPCS121

Lovato 0-1 Platinum Series Short Lever Selector LPCS121


LOV LPCS121 8013975192436

Lovato short lever selector switch 0-1 Platinum series 2 positions (without fixing base), application diameter 22 mm.

Do you have questions about this product or did you not find what you were looking for? Ask us!
Selector switch short lever Lovato 0-1 Platinum series LPCS121

Lovato 0-1 Platinum Series Short Lever Selector LPCS121

€9.33
€9.33

Lovato 0-1 Platinum Series Short Lever Selector LPCS121

€9.33
Tax included

Lovato 0-1 Platinum Series Short Lever Selector LPCS121

€9.33

Buy it within and receive it from Thursday, 12 December
Two-year warranty
Easy return within 14 days

Lovato short lever selector switch 0-1 Platinum series 2 positions (without fixing base), application diameter 22 mm.



Application features: any mounting position is permitted standard key-operated types with key No. 455.



Environmental conditions and general characteristics:

  • Operating temperature: -25...+70°C
  • Storage temperature: -40...+85°C
  • Degree of protection: - according to IEC/EN: IP66, IP67 and IP69K - according to UL: type 1, 2, 3R, 4, 4X, 12, 12K.
  • Materials: Made of polyamide materials
  • Mechanical values: Mechanical life 1,000,000 cycles
  • Fixing base Type: LPX AU120




Operators are attached to a Ø22mm hole by means of a threaded ring nut (Tmax = 2.3Nm) also on the cover of the LPZ hand control units. The base is snapped onto the operator.

Data sheet

Type:
Short lever selectors
Degree of protection:
IP67
