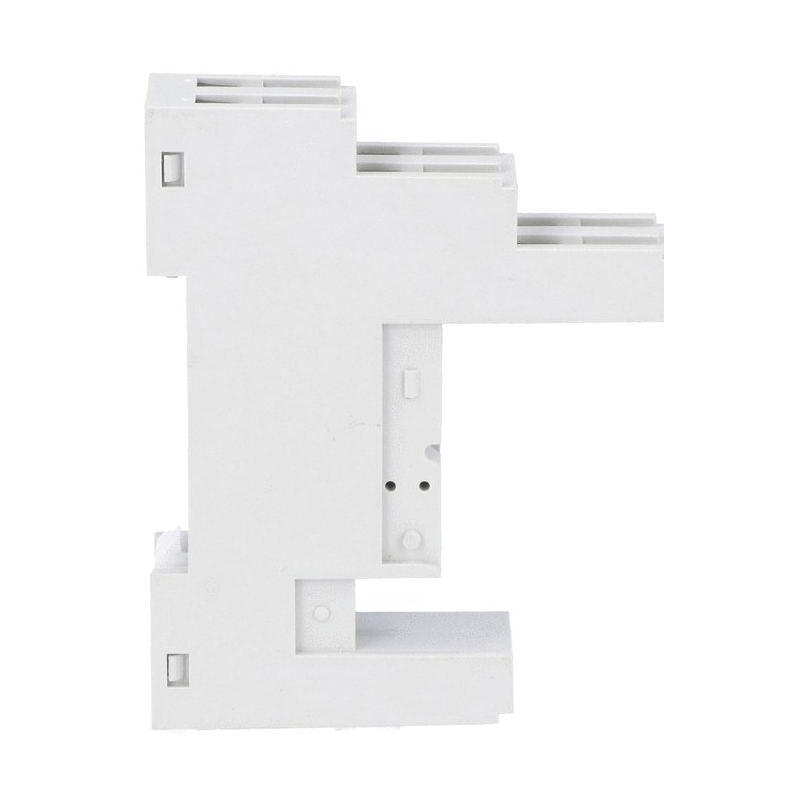

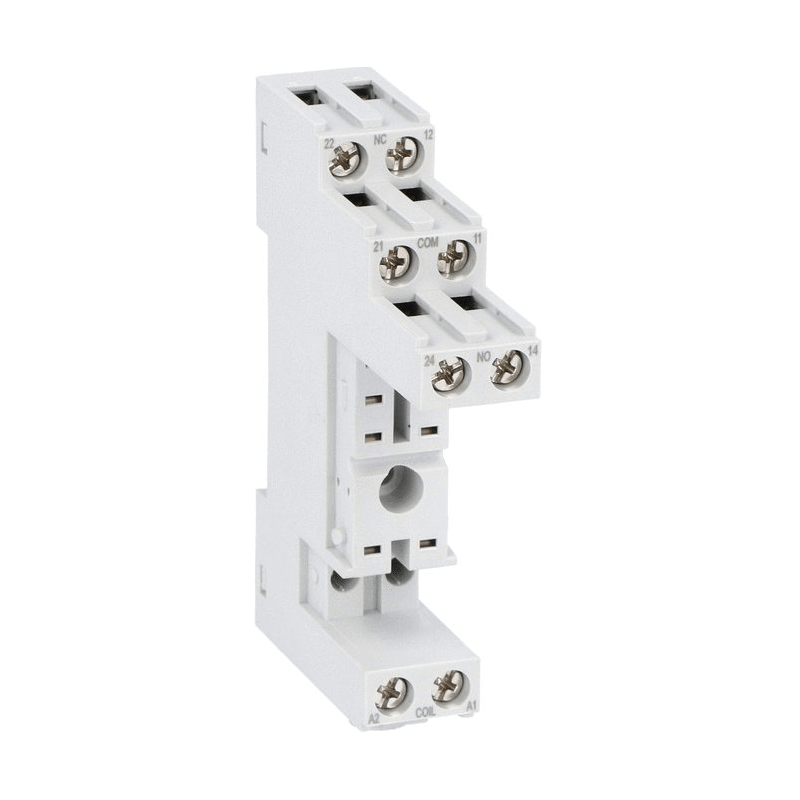

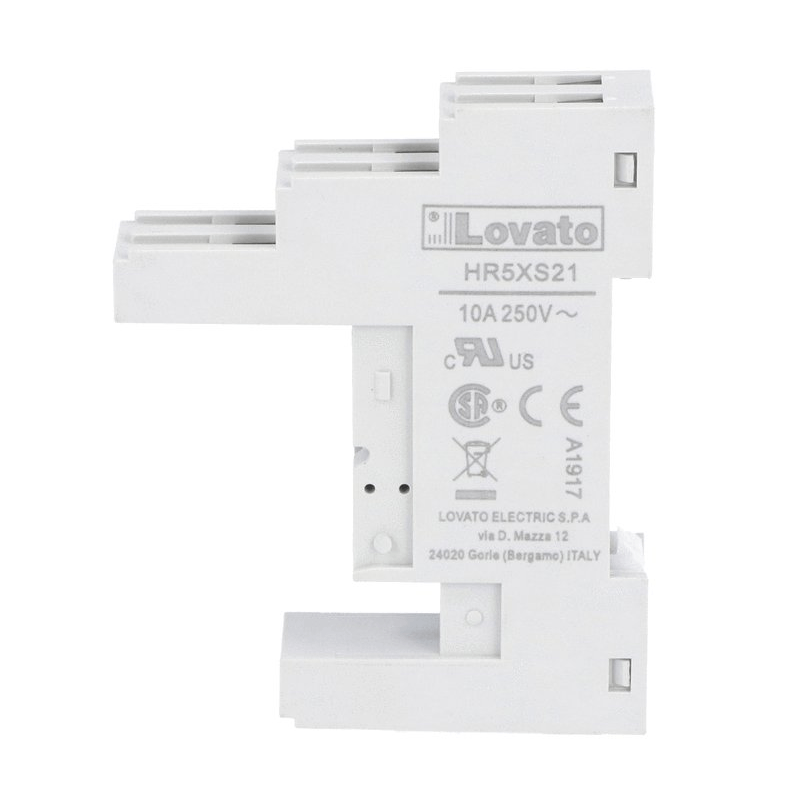

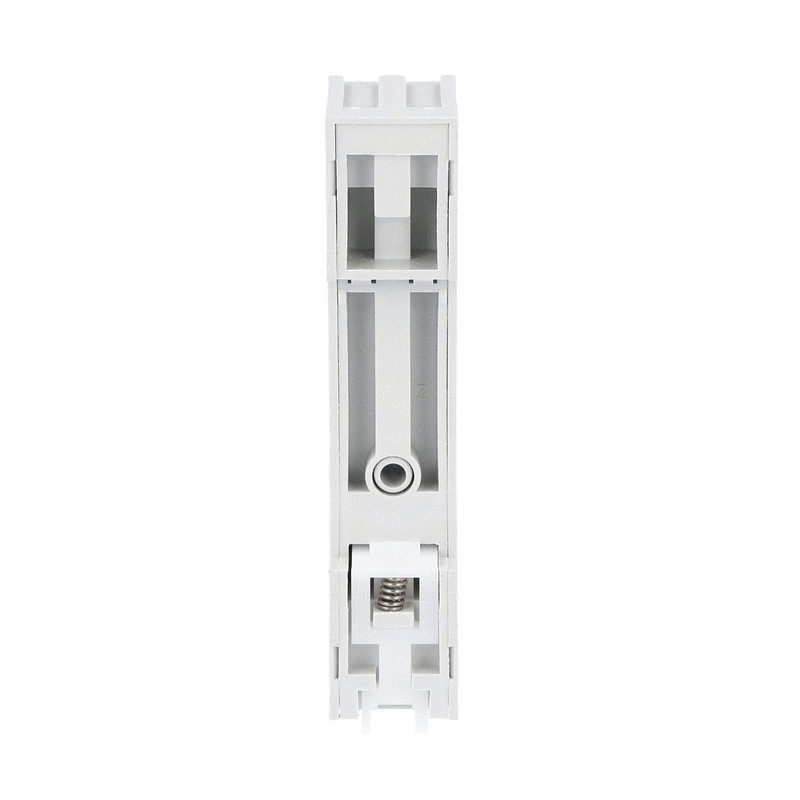

Lovato socket for HR30/HR50 series mini relay HR5XS21

Lovato
LOV HR5XS21 8013975233375

Lovato socket for relays, DIN rail or screw mounting, with the following characteristics:



  • IEC/EN rated insulation voltage: 250V
  • Rated impulse withstand voltage (Uimp): kV 4
  • Socket screw tightening tool (cross/flat blade): Phillips 1/4.5mm
  • Conductor cross section AWG/Kcmil: min 20 - max 14 - IEC min mm² 0.5 - max mm² 2.5
  • Mounting : 35mm DIN rail or with screws

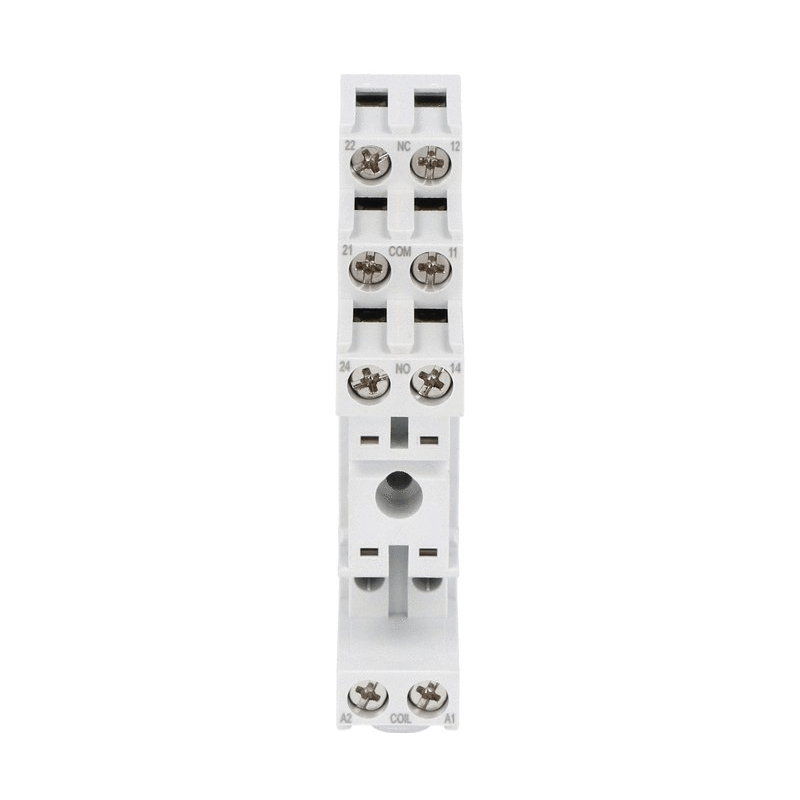

  • Contact terminals all on top side



Compatible relays for this socket, to be purchased separately: part numbers HR501CA024, HR501CD024, HR502CA012, HR502CA024, HR502CD024.

Do you have questions about this product or did you not find what you were looking for? Ask us!

Lovato socket for HR30/HR50 series mini relay HR5XS21

€3.83
€3.83

Lovato socket for HR30/HR50 series mini relay HR5XS21

€3.83
Tax included
Items Available: 376
Further availability of the manufacturer

Lovato socket for HR30/HR50 series mini relay HR5XS21

€3.83

Buy it within and receive it from Monday, 11 November
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

There are no reviews

Data sheet

Type:
Plinth
Voltage:
250V
