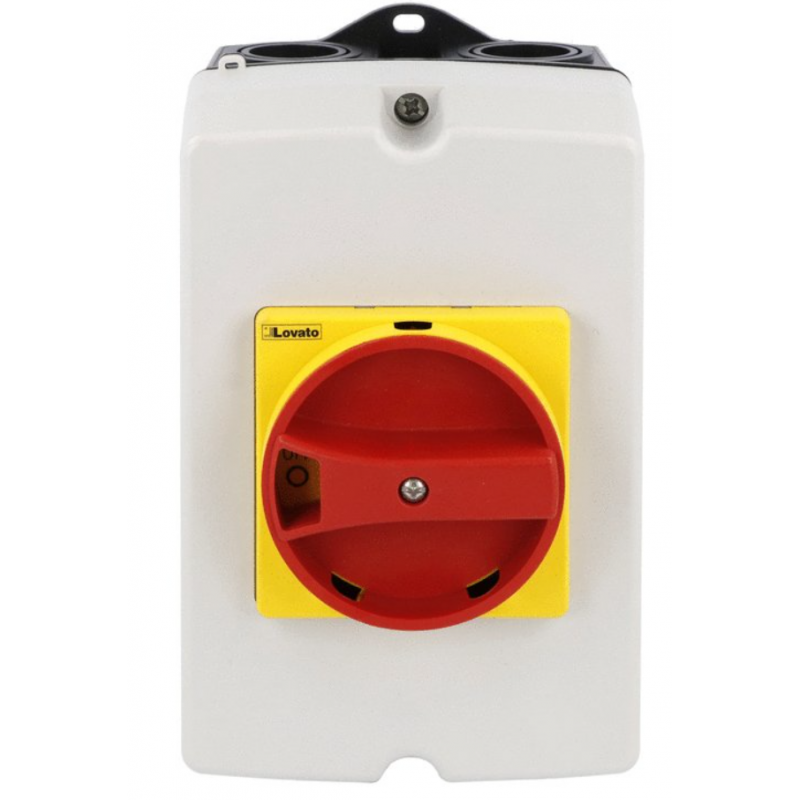

Lovato wall-mounted rotary disconnector 3X40A IP65 GAZ040

Lovato
LOV GAZ040 8013975178317

Lovato rotary switch disconnector type GAZ ,in IEC/EN-type plastic insulating enclosure, with the following characteristics:



  • Number of poles: 3
  • Type of operating voltage AC
  • Ith IEC conventional free air thermal current: 40A
  • IEC/EN rated insulation voltage: 1000V
  • With yellow/red handle
  • Rated impulse withstand voltage (Uimp): Kv 8
  • Power dissipation per pole max 1W
  • Rated power AC23A: 400V Kw 18.5 - 690V kW 22
  • Conditional short circuit current (rms): kA 10
  • Protection against short circuit with fuses: Class/A gG40
  • Closing power AC23A 400V: 400A
  • Opening power AC23A 400V: 320A
Do you have questions about this product or did you not find what you were looking for? Ask us!
Lovato wall-mounted rotary disconnector 3X40A IP65 GAZ040
€50.24
€50.24

€50.24
Tax included
Items Available: 1
Further availability of the manufacturer
€50.24

Buy it within and receive it from Tuesday, 1 April
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Other technical features:

  • Mechanical life: cycles 100000
  • Electrical life AC21A: 15000 cycles
  • Mounting position: Normal Vertical plane - Allowed Any
  • Operating temperature: -25/+55°C
  • Storage temperature: -40/+70°C
  • Maximum altitude: m 3000
  • Front IP degree of protection IP65
  • IP degree of protection IP65
  • Pollution degree 3

There are no reviews

Data sheet

Type:
Wall-mounted switch disconnectors
Voltage:
1000V
Poles:
3P
Degree of protection:
IP65
Amps:
40A
