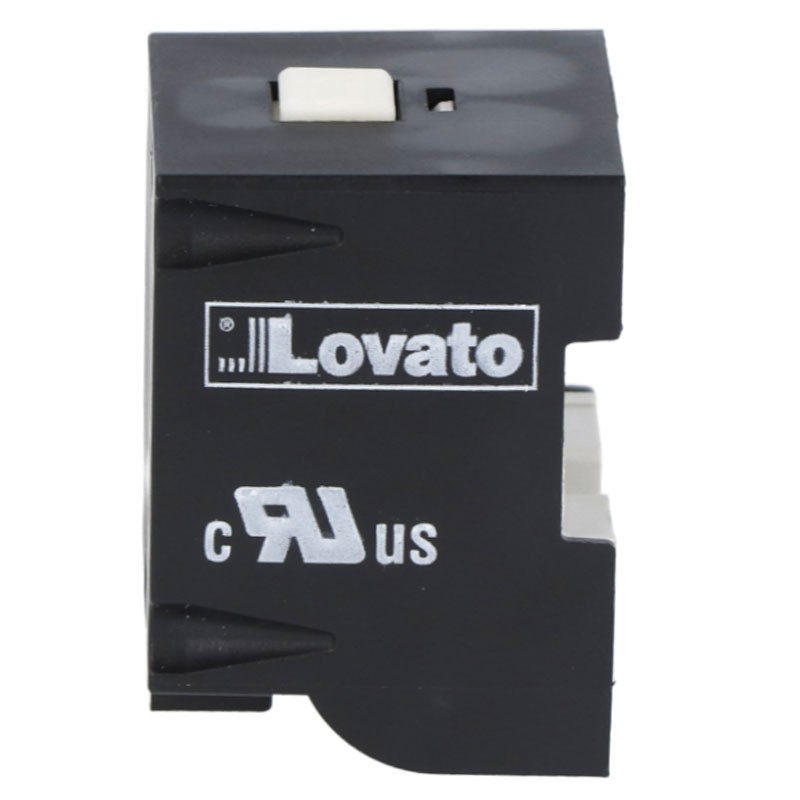

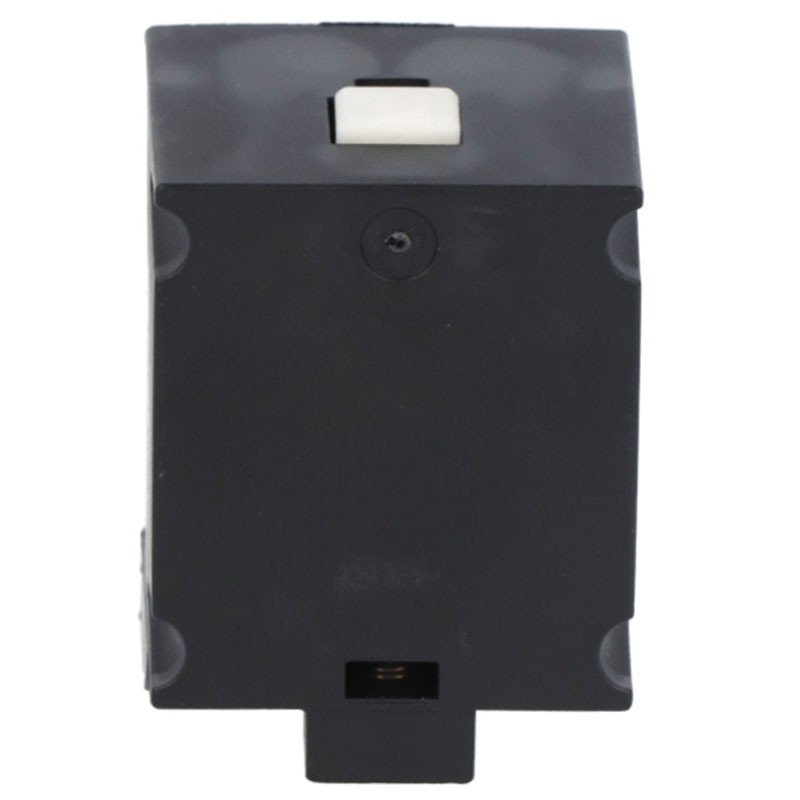

Lovato contact block 1NO+1NC snap-in KXBS11
LOV KXBS11
8013975113400
Lovato contact block with the following characteristics:
- Material/housing: self-extinguishing thermoplastic polymer with double insulation
- Contact type: 1NO+1NC, snap action
- Thermal current Ith UN 10
- Short-circuit protection with class A fuse: fast fuse 10 gG/SC
- IEC Conventional free air thermal current Ith UN 10
- Resistance per pole (average value) mΩ <10
- Conductivity: 10 mA 5V
Lovato contact block 1NO+1NC snap-in KXBS11
€7.34
€7.34
Tax included
Tax included
Items Available: 16
: 11
Other features:
- Workhead attachment: bayonet locking insert
- Cable connection: self-locking screw clamp
- Weight: 21 grams
- Mechanical life: cycles >10000000
- Operating temperature: min °C -25 - max °C +70
- Storage temperature: min °C -40 - max °C +70
- IP degree: Terminals IP20 - Body housing IP65
- Pollution degree: 3
Tightening torque (max):
- Switch fixing: Nm 2.5 - lbin 22.1
- Contact Terminals: Nm 0.8 - lbin 7
- Body cover screw fixing: Nm 0.8 - Ibin 7
Conductor cross section:
- AWG/Kcmil: min 16 - max 14
- IEC: min mm² 1 or 2 - max mm² 2.5
Funzionano perfettamente, istallati senza problemi
Prodotti realmente disponibili e spediti nei tempi previsti
Data sheet
- Type:
- Auxiliary Contacts
