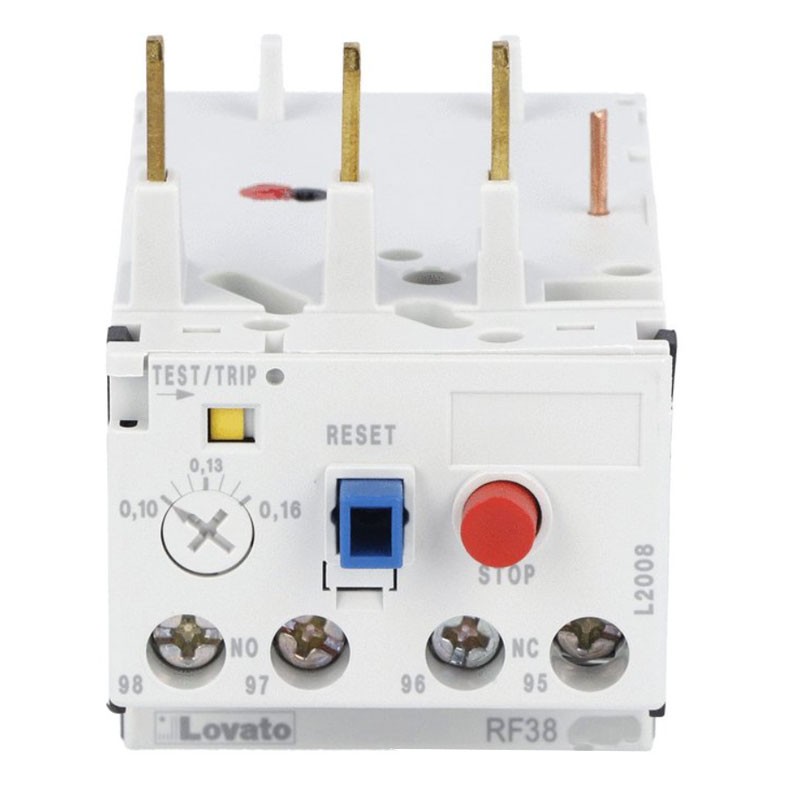

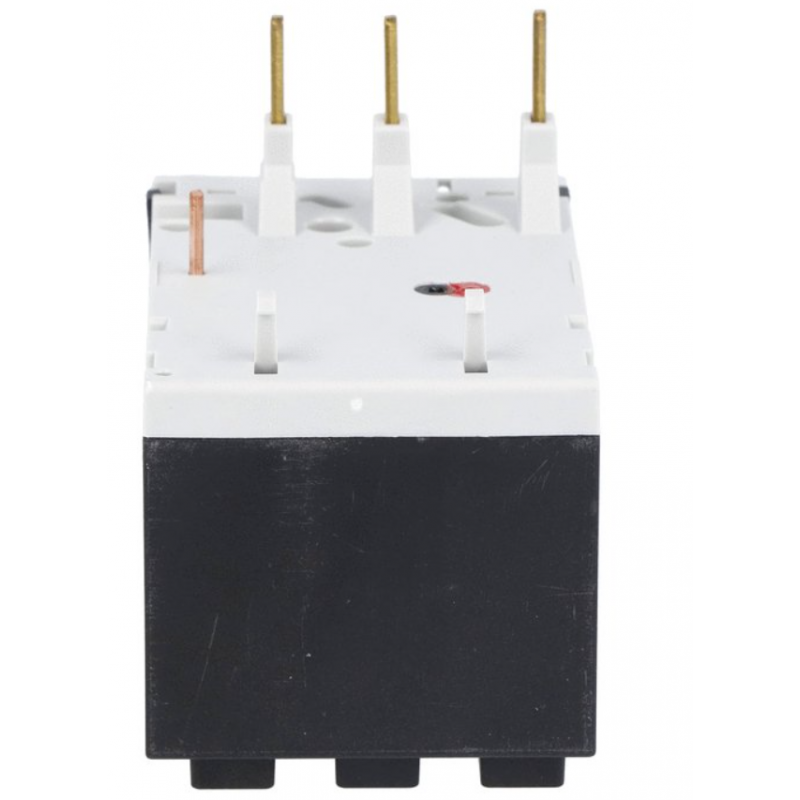

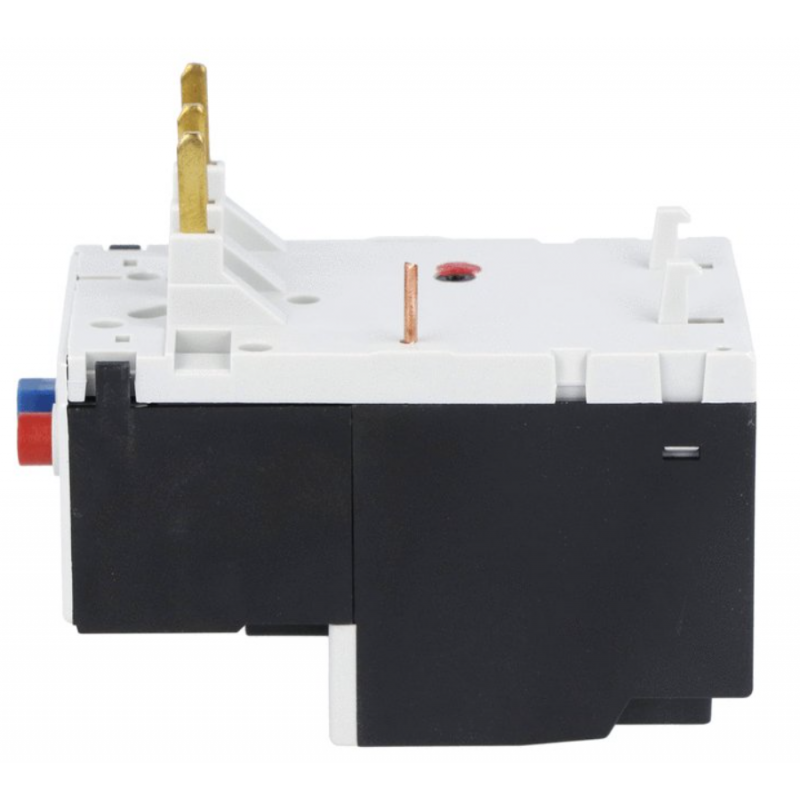

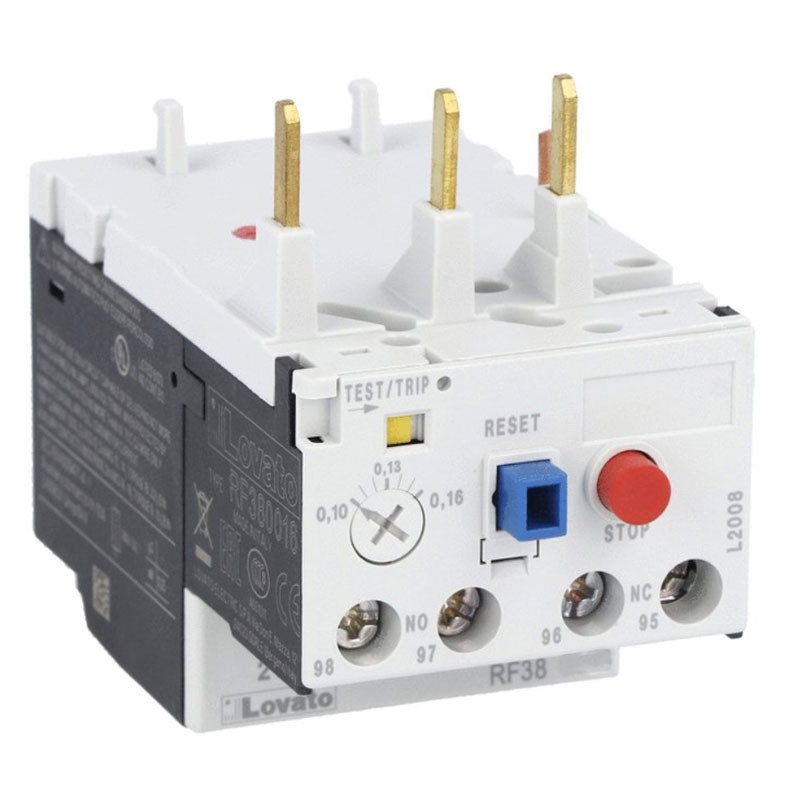

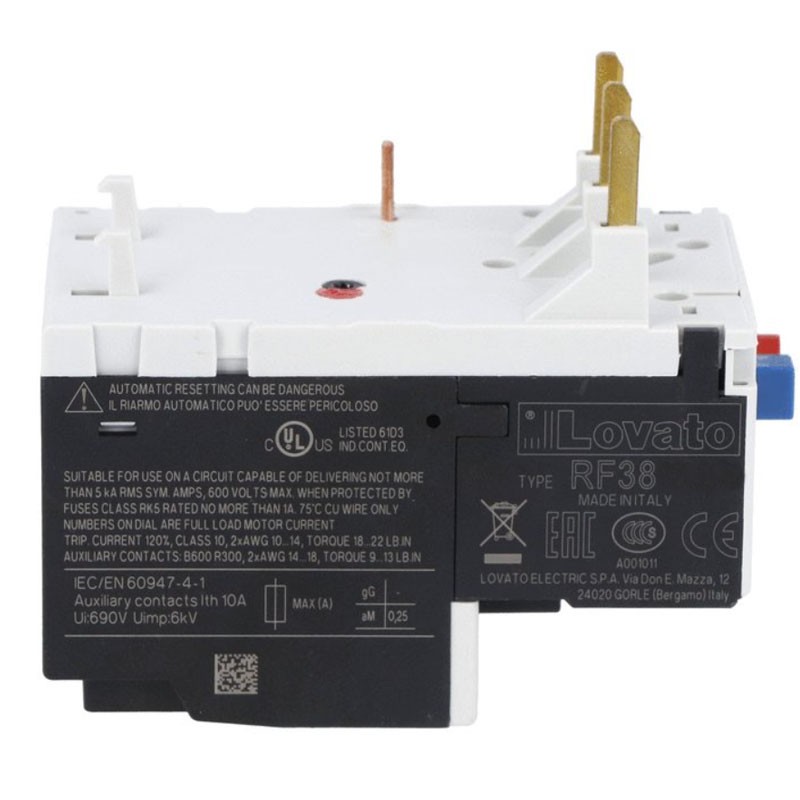

Lovato thermal relay mounting contactor BF09-38 2.5 to 4A RF380400

Lovato
LOV RF380400 8013975169926

Lovato thermal overload relay for motor protection, with the following characteristics:

  • IEC/EN rated insulation voltage Ui: 690V
  • Rated impulse withstand voltage Uimp: kV 6
  • Rated operating voltage: 690V
  • Operating frequency: min Hz 0 - max Hz 400
  • Operating current Es: Min operating current UN 2.5 - Max operating current UN 4
  • Trip class 10A
  • Number of poles: 3
  • Overvoltage category III
  • Pollution degree 3
  • Front IP rating: IP20
Do you have questions about this product or did you not find what you were looking for? Ask us!
Lovato thermal relay mounting contactor BF09-38 2.5 to 4A RF380400
€41.13
€41.13

€41.13
Tax included
Items Available: 36
Further availability of the manufacturer
€41.13

Buy it within and receive it from Friday, 21 March
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Other technical features:

  • Release type: thermal
  • Phase failure detection: YES
  • Recovery mode: manual or automatic
  • Test button: yes
  • Trip indicator: yes
  • Conductor cross section: AWG/kcmil max 8
  • Operating temperature: Min °C -25 - Max °C +60
  • Storage temperature: Min °C -50 - Max °C +70
  • Compensation temperature: Min °C -20 - Max °C +60
  • Maximum altitude: m 3000
  • Operating position: normal vertical plane - allowable ±30°
  • Fixing: direct mounting on BF09... BF38...
  • Weight: 160 grams

There are no reviews

Data sheet

Type:
Protection relay
Voltage:
690V
Poles:
3P
Degree of protection:
IP20
