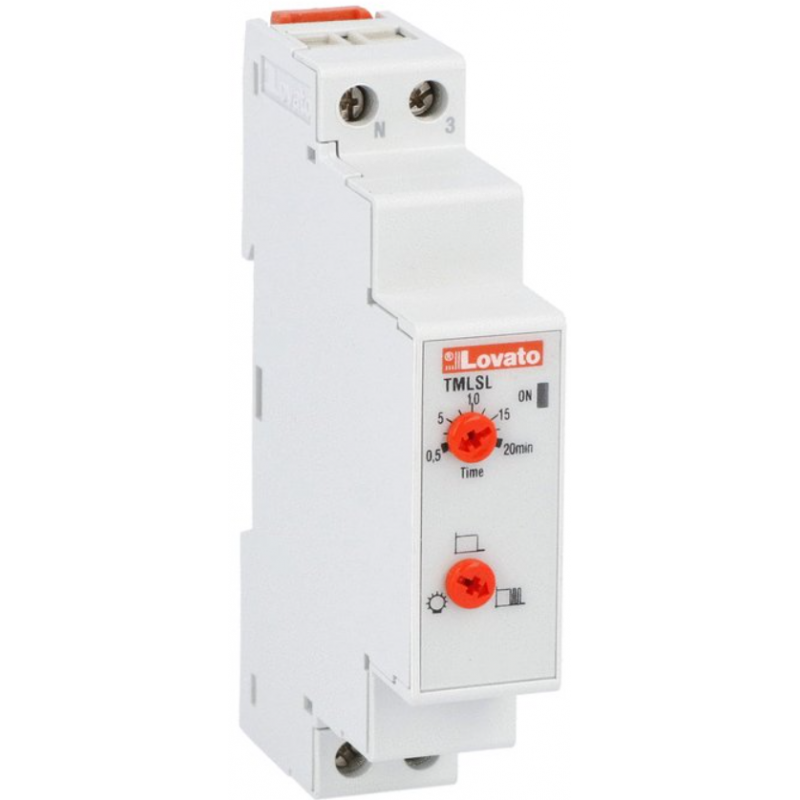

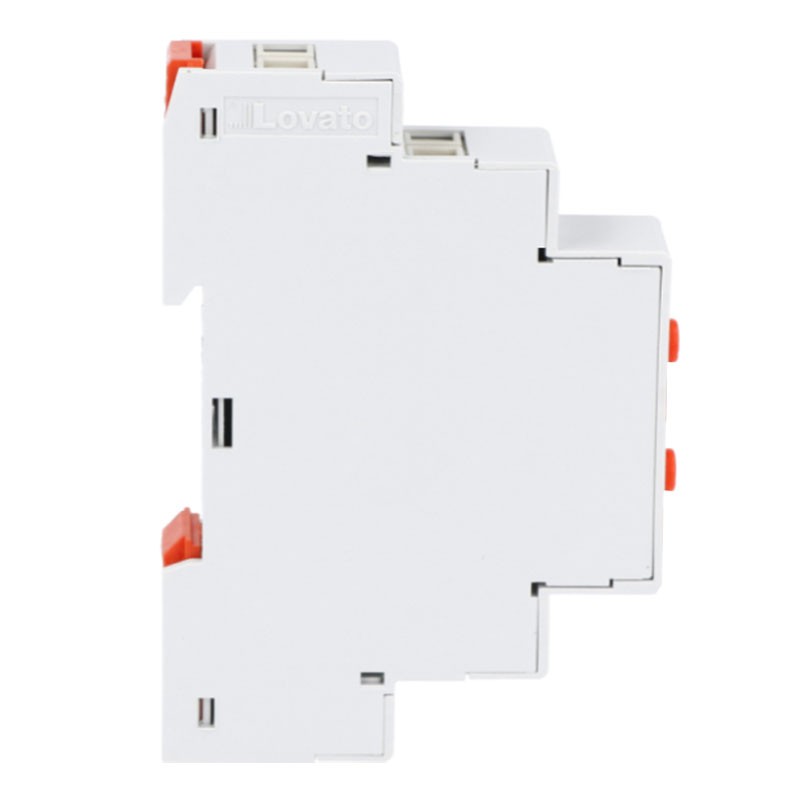

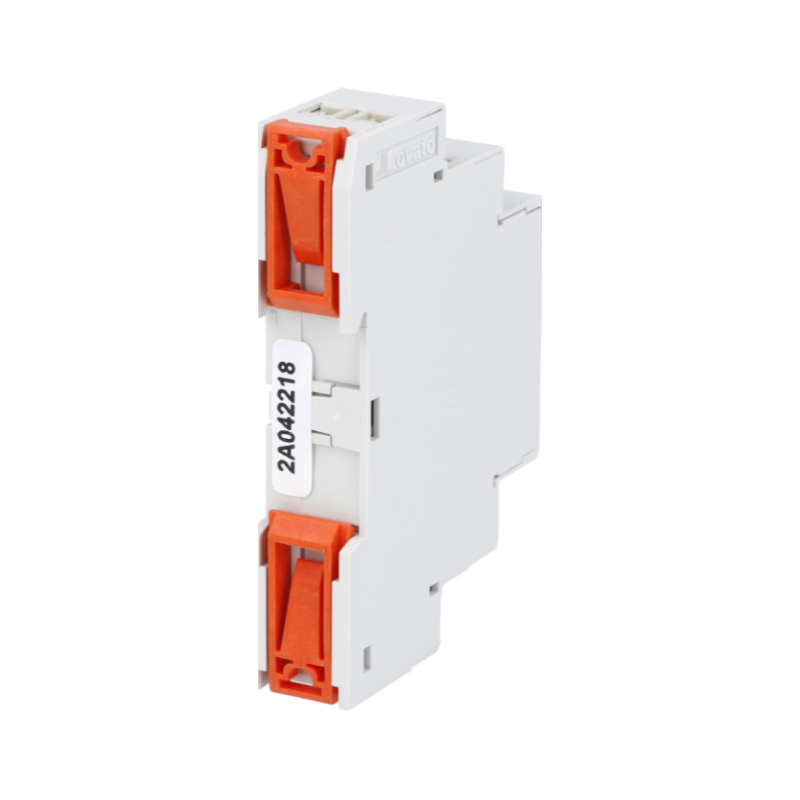

Lovato ladder light timer 1 module 220/240V TMLSL
LOV TMLSL
8013975147092
Lovato "zero crossing" load-switching staircase light timer with the following features:
- Function: timed ignition
- Rated auxiliary supply voltage Us: 220...240V AC
- Rated auxiliary supply voltage Us: alternating current: min 220 Vac - max 240 Vac
- Rated frequency: 50/60 Hz
- 1 module
- Rated insulation voltage Ui: 250V
- Rated impulse withstand voltage (Uimp): kV 4
- Withstand voltage at operating frequency: kV 2
- Connections type: screw type
Lovato ladder light timer 1 module 220/240V TMLSL
€20.74
€20.74
Tax included
Tax included
Items Available: 176
: 53
Other technical features:
- Tightening torque (Max): Tightening torque max Nm 0.8 - Tightening torque max. Ibin 7 / 7...9 UL
- Conductor cross-section: AWG/Kcmil: Min 24...12 - max 12...18, IEC Min mm² 0.2- Max mm² 4
- Mechanical life: cycles 30000000
- Electrical life (with rated load): cycles 100000
- Operating temperature: -20/+60°C
- Storage temperature: -30/+80°C
- Relative humidity: <90%
- Maximum pollution degree: 2
- Overvoltage category: III
- Voltage operating range: 0.85...1.1 Us
- Time setting ranges: 0.5...20min
- External control input: Minimum ms duration =60
- Number of relays: 1
- Contact configuration: 1 NO delayed
- Maximum switching voltage 250 Vac
- Conventional free air thermal current Ith IEC: 16 amps
- Material: self-extinguishing polyamide
- Mounting: 35 mm DIN rail
- Degree of protection: IP40 front, IP20 on terminals

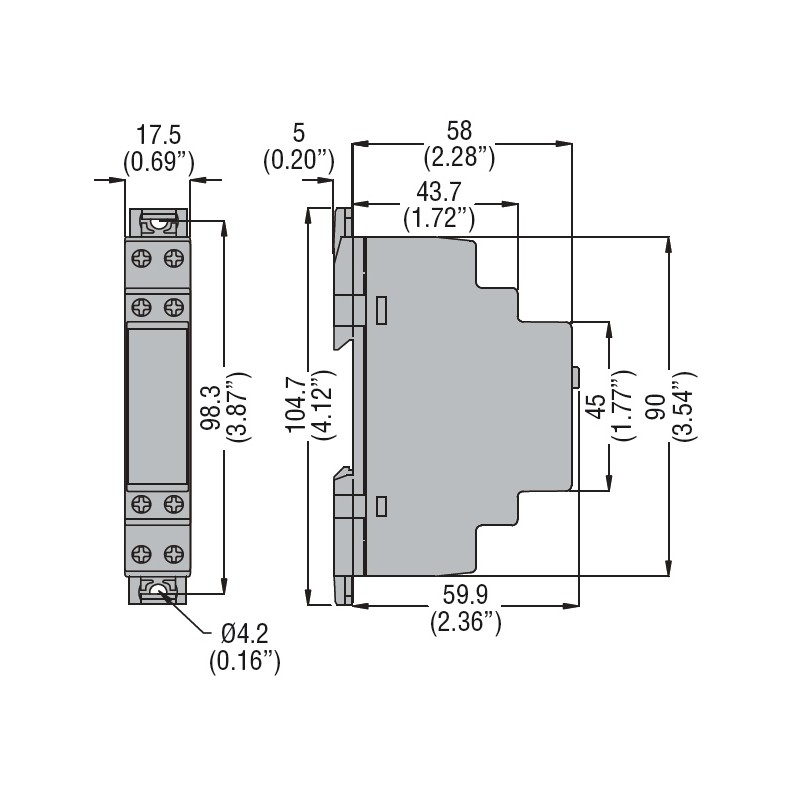

- Dimensions (W x H x D): 17.5 x 104.7 x 64.9mm
- Weight: 90 grams
Ottimo prodotto qualità prezzo
Di facile installazione
Soddisfatto del prodotto prodotto eccellente
Nessun problema, materie nuovo e funzionante
Prodotto eccellente soddisfatto del acquisto
Data sheet
- Type:
- Timers
- Voltage:
- 220/240VAC
- Degree of protection:
- IP40
