Features:

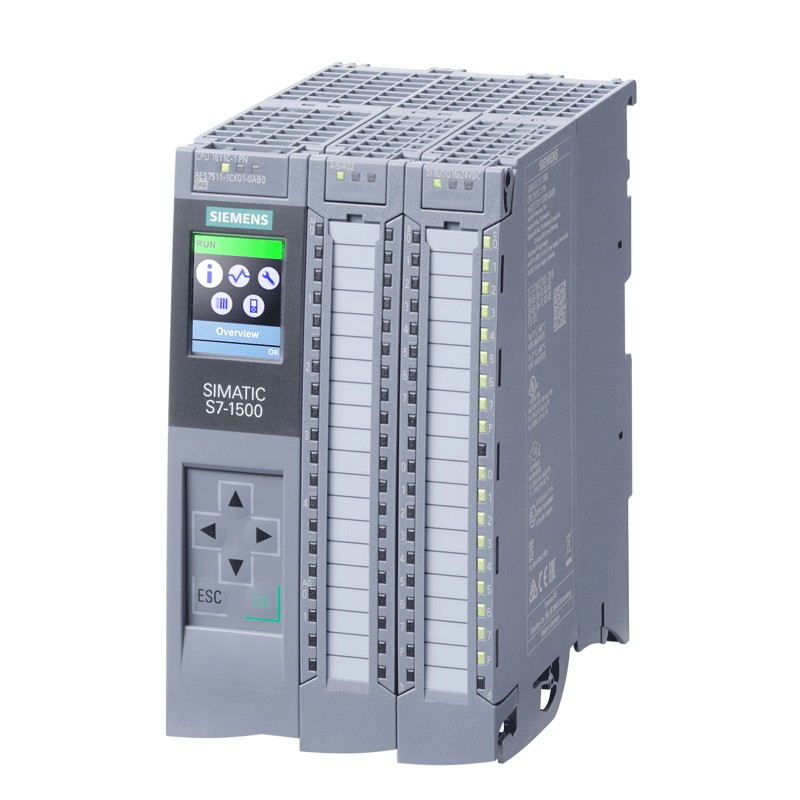

• CPU 1511C-1 PN product type designation.
• Hardware version FS03
• Firmware version V2.9
• Product function I&M data Yes; I&M0 ... I&M3 - Operation with clock synchronism Yes; With minimum OB 6 x 625 µs cycle (decentrally)
• Engineering with STEP 7 TIA Portal plannable/integrated from version V17 (FW V2.9) / from V15 (FW V2.5); plannable as 6ES7511- 1CK00-0AB0 with older TIA Portal versions
• Configuration control by data set
• Display Screen diagonal: 3.45 cm
• Operating elements Number of keys 8 Mode keys 2
• Supply voltage Nominal value (DC) 24 V - Permissible range, lower limit (DC) 19.2 V; 20.4 V DC for supply of digital inputs/outputs - Permissible range, upper limit (DC) 28.8 V - Reverse polarity protection Yes
• Mains and voltage interruption buffer Mains/voltage interruption buffer time 5 ms; Refers to supply voltage on CPU side - Repetition rate, min. 1/s
• Current consumption (nominal value) 0.8 A; Without load; 9.8 A: CPU + load
• Current consumption, max. 1 A; no load; 10 A: CPU + load
• Switch-on current, max. 1.9 A; nominal value I²t 0.34 A²-s
• Digital inputs from load voltage L+ (without load), max. 20 mA; per group
• Digital outputs from the L+ load voltage, max. 30 mA; per group, no load
• Output voltage / header Nominal value (DC) 24 V
• Transducer supply Number of outputs 1; A common 24V transducer supply
• Memory Number of slots for SIMATIC Memory Card 1
• SIMATIC Memory Card required Yes
• Integrated working memory (for program) 175 kbytes - integrated (for data) 1 Mbyte
• Loadable memory (SIMATIC memory card), max. 32 Gbyte
• Dimensions Width 85 mm - Height 147 mm - Depth 129 mm
• Weight 1,050 grams
