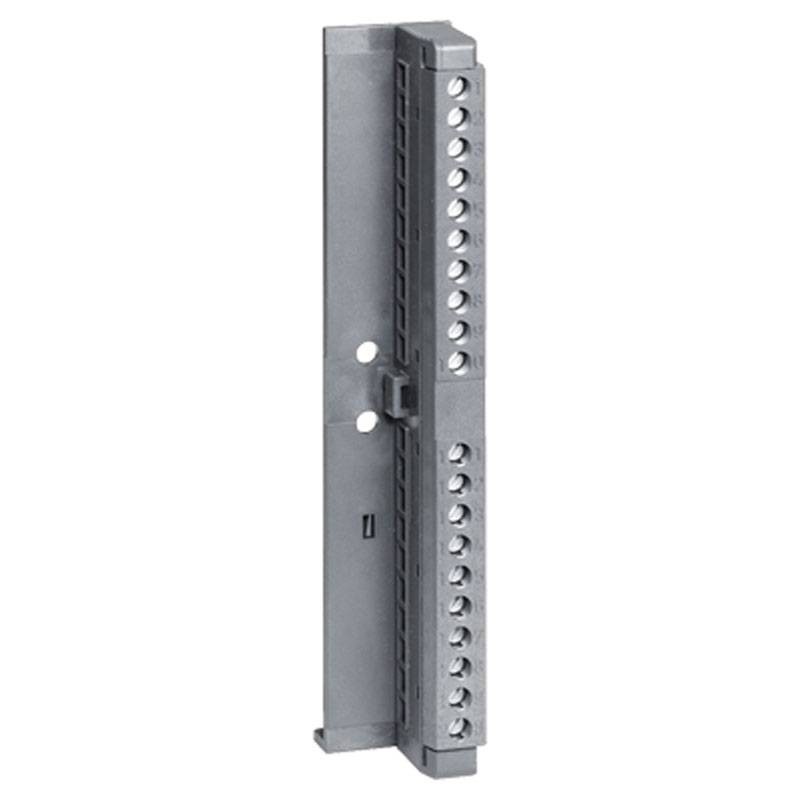

Siemens SIMATIC 20-pin Screw Contacts Front Connector 6ES73921AJ000AA0

Siemens
SIE 6ES73921AJ000AA0 4025515061960

Front connector for input/output unit with screw contacts Siemens SIMATIC S7-300 with the following features:


  • Product type designation: Front connector
  • Connection technique Screw terminals
  • 20 poles
  • Stripping length of conductors: 6 mm
  • Tightening torque: 0.4 to 0.7 Nm
  • Dimensions: Width 23 mm - Height 131 mm - Depth 36 mm
Do you have questions about this product or did you not find what you were looking for? Ask us!
Siemens SIMATIC 20-pin Screw Contacts Front Connector 6ES73921AJ000AA0
€63.34
€60.17
€60.17

Lowest price in 30 days:
€63.34
Save 5%
€60.17
Tax included
Items Available: 18
Further availability of the manufacturer
€60.17

Buy it within and receive it from Monday, 24 March
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

SIMATIC S7-300, front connector for input/output unit with screw contacts, 20-pin.


Features:

  • Ambient temperature for operation: 0/+60 degrees
  • Ambient temperature for storage/transportation: -40/+70 degrees
  • Number of conductors per connection: 1; or combination of 2 conductors up to 1.5 mm² (sum) in a common ferrule
  • Connectable conductor cross-section for rigid conductors, min: 0.25 mm²
  • Connectable conductor cross-section for rigid conductors, max: 1.5 mm²
  • Connectable conductor cross-section for flexible conductors without ferrule, min: 0.25 mm²
  • Connectable conductor cross-section for flexible conductors without ferrule, max: 1.5 mm²
  • Connectable conductor cross-section for flexible conductors with ferrule, min: 0.25 mm²
  • Connectable conductor cross-section for flexible conductors with ferrule, max: 1.5 mm²
  • Connectable conductor cross-section for rigid conductors, min: 24
  • Connectable conductor cross section for rigid conductors, max: 16
  • Connectable conductor cross-section for flexible conductors without ferrule, min: 24
  • Connectable conductor cross-section for flexible conductors without ferrule, max: 16
  • Connectable conductor cross-section for flexible conductors with ferrule, min: 24
  • Connectable conductor cross section for flexible conductors with ferrule, max: 16
