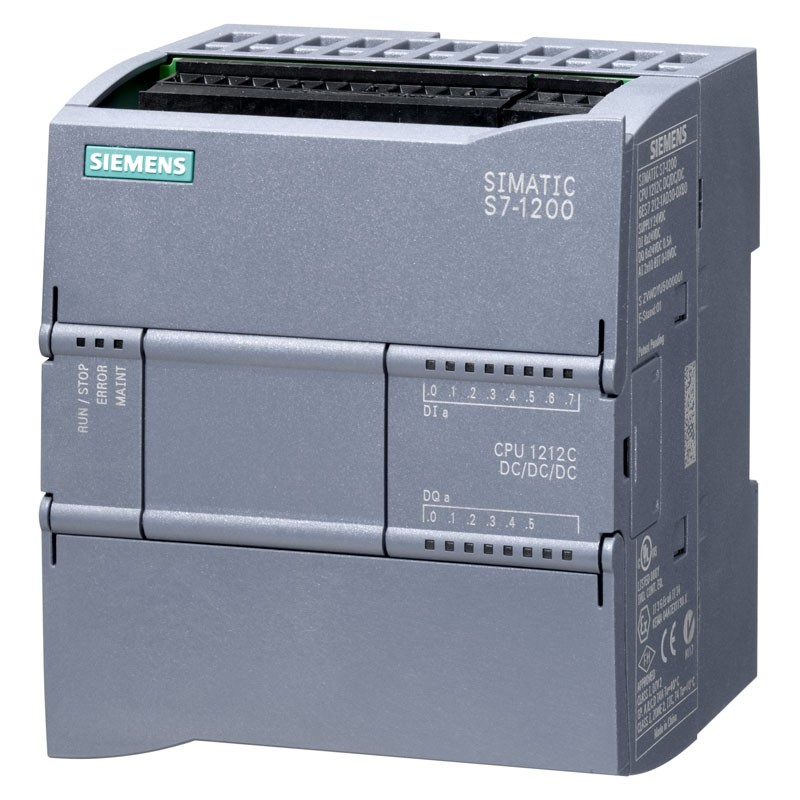

Siemens Simatic S7-1200 1212C 8DI/6DO/2AI DC/DC/DC CPU 6ES72121AE400XB0
SIE 6ES72121AE400XB0
4047623402701
Siemens Simatic S7-1200 1212C CPU:
- Compact CPU
- DC/DC/DC
- Onboard I/O: 8 DI, DC 24V 6 DO DC 24V; 2 AI DC 0-10V
- Power supply: 20.4-28.8V DC
- Program/data memory 75 KB.
Siemens Simatic S7-1200 1212C 8DI/6DO/2AI DC/DC/DC CPU 6ES72121AE400XB0
€330.45
€330.45
Tax included
Tax included
Pay in installments with Klarna
Items Available: 19
Features:
- Product type designation CPU 1212C DC/DC/DC
- Firmware version V4.5
- Engineering with programming package from STEP 7 V17
- Supply voltage Nominal value (DC) DC 24 V Yes
- Permissible range, lower limit (DC) 20.4 V
- Permissible range, upper limit (DC) 28.8 V
- Reverse polarity protection Yes
- Load voltage L+
- Nominal value (DC) 24 V
- Permissible range, lower limit (DC) 20.4 V
- Permissible range, upper limit (DC) 28.8 V
- Input current: Current consumption (nominal value) 400 mA; CPU only - Current consumption, max. 1 200 mA; CPU with all extension units - Switch-on current, max. 12 A; with DC 28.8 V - I²t 0.5 A²-s
- Output current for backplane bus (DC 5 V), max. 1 000 mA; max. DC 5 V for SM and CM
- Power loss, typ. 9 W
- Working memory: integrated 75 kbytes - extendable No.
- Load memory: integrated 2 Mbytes - insertable (SIMATIC Memory Card), max. with SIMATIC Memory Card
- Dimensions: Width 90 mm - Height 100 mm - Depth 75 mm
- Weight 370 g.
There are no reviews
Data sheet
- Type:
- CPU Central Units
- Voltage:
- 24V
