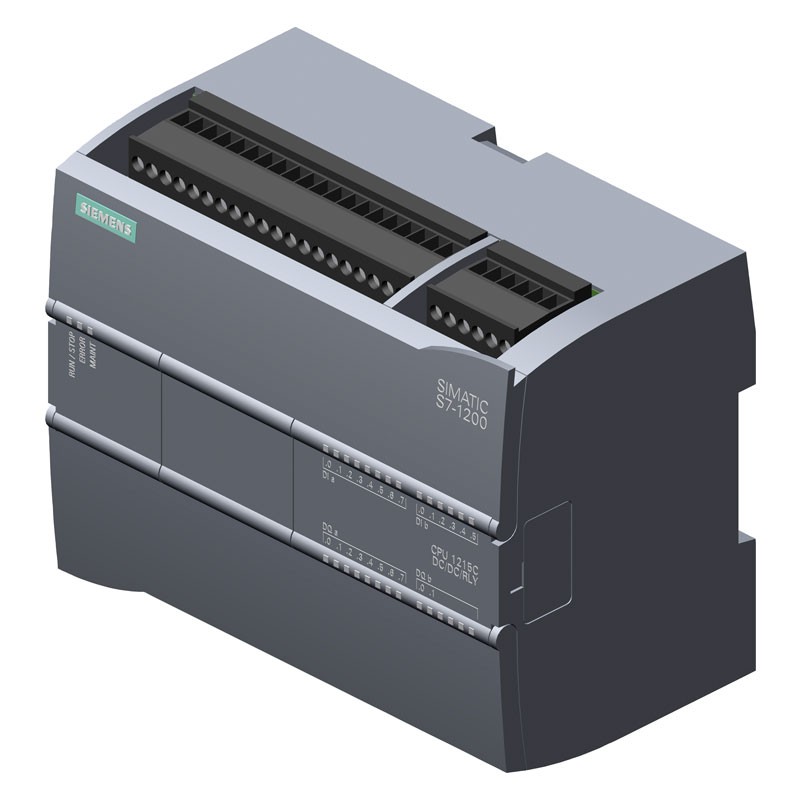

Siemens Simatic S7-1200 1215C 14DI/10DO/2AI/2AO CPU 6ES72151HG400XB0
SIE 6ES72151HG400XB0
4047623402763
Siemens Simatic S7-1200 CPU Compact:
- DC/DC/relay
- 2 PROFINET ports
- Onboard I/O: 14 DI DC 24 V; 10 DO relays 2A, 2 AI 0-10V DC, 2 AO 0-20mA DC
- Power supply: 20.4-28.8V DC
- Program/data memory 125 KB.
Siemens Simatic S7-1200 1215C 14DI/10DO/2AI/2AO CPU 6ES72151HG400XB0
€752.03
€752.03
Tax included
Tax included
Pay in installments with Klarna
Items Available: 75
Features:
- Product type designation CPU 1215C DC/DC/relay
- Firmware version V4.5
- Programming package from STEP 7 V17
- Supply voltage Nominal value (DC) 24 V Yes - Permissible range, lower limit (DC) 20.4 V - Permissible range, upper limit (DC) 28.8 V - Reverse polarity protection Yes
- Load voltage L+: Nominal value (DC) 24 V - Permissible range, lower limit (DC) 20.4 V - Permissible range, upper limit (DC) 28.8 V
- Input current: Current consumption (nominal value) 500 mA; CPU only - Current consumption, max. 1 500 mA; CPU with all extension units - Switch-on current, max. 12 A; with DC 28.8 V - I²t 0.8 A²-s
- Output current for backplane bus (DC 5 V), max. 1 600 mA; max. DC 5 V for SM and CM
- Power dissipation, typ. 12 W
- Load memory integrated 4 Mbytes - insertable (SIMATIC Memory Card), max. with SIMATIC Memory Card
- Dimensions Width 130 mm - Height 100 mm - Depth 75 mm
- Weight 585 g.
There are no reviews
Data sheet
- Type:
- CPU Central Units
