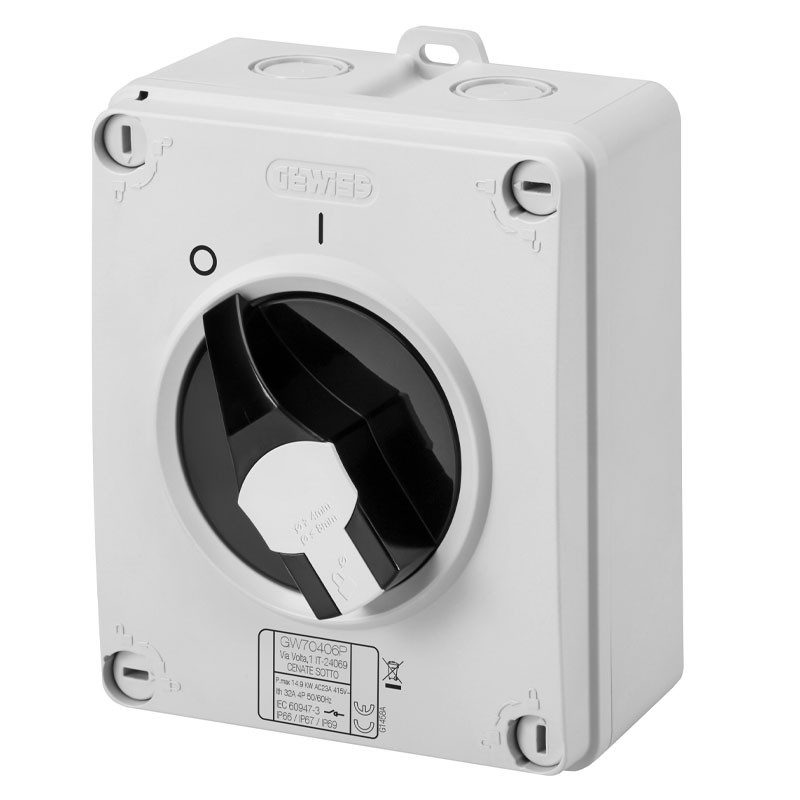

Gewiss HP 4X32A Rotary Wall Switch IP65 GW70406P

Gewiss
GEW GW70406P 8011564751200

Gewiss rotary disconnect switch, with the following features:

  • Version: cassette
  • Material: Insulator
  • Type: Control
  • Rated current 32A
  • Poles: 4
  • Black padlockable knob
  • Degree of protection: IP66/IP67/IP69
  • Shock resistance IK08
  • Ambient temperature: -25 +60 °C
  • Cover screws (number and type): 4 1/4-turn insulators
  • Input holes: 2 x M20/25 + 2 x M20/25
Do you have questions about this product or did you not find what you were looking for? Ask us!

Gewiss HP 4X32A Rotary Wall Switch IP65 GW70406P

€47.21
€47.21

Gewiss HP 4X32A Rotary Wall Switch IP65 GW70406P

€47.21
Tax included
Items Available: 78
Further availability of the manufacturer

Gewiss HP 4X32A Rotary Wall Switch IP65 GW70406P

€47.21

Buy it within and receive it from Wednesday, 8 January
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Other technical features:

  • Padlockable: YES (max. 3 padlocks in ON and OFF)
  • Accessory type: Max. 2 aux contacts
  • Current in AC22 (415V): 32
  • Current in AC23A (415V): 32
  • Cable cross section: Max 10 mm²

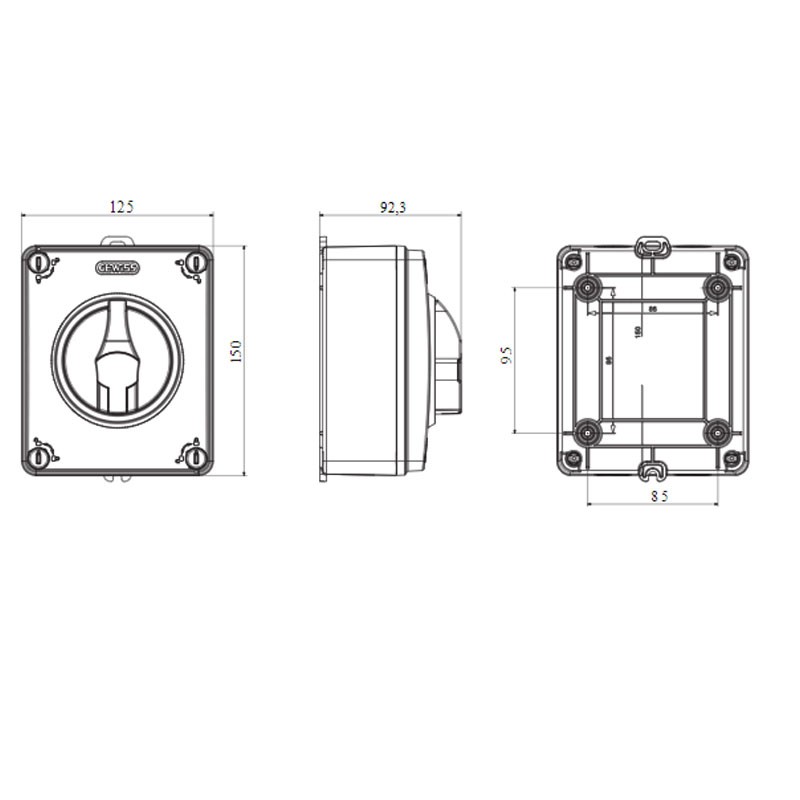

  • External dimensions BxHxD (mm): 125x150x75.5
  • Electrocod code 1742
  • Ware number 85363030

There are no reviews

Data sheet

Type:
Rotary switches
Voltage:
415VAC
Poles:
4P
Degree of protection:
IP67
Amps:
32A
